Section lines that can bend, not just step

[Christiaan 1,004]

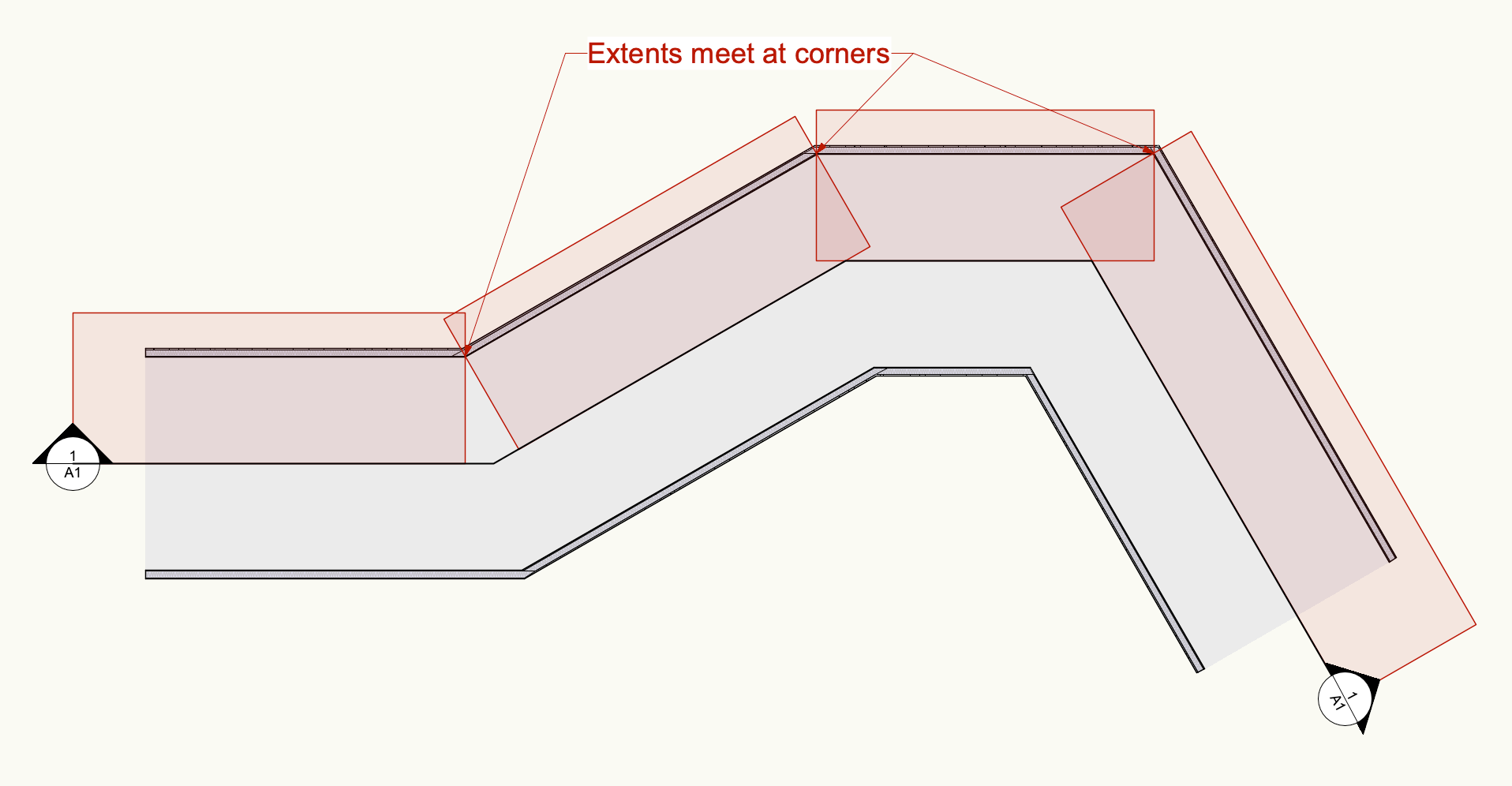

We need to be able to create Section Viewports by bending section lines rather than stepping them. Stepped section lines make for some very messy sections on some building shapes.



Edited January 5 by Christiaan

[Jonathan Pickup 291]

like the site model section tool...



I used to create two sections, but it was a messy way to do it.

[Christiaan 1,004]

16 hours ago, Jonathan Pickup said:

I used to create two sections, but it was a messy way to do it.

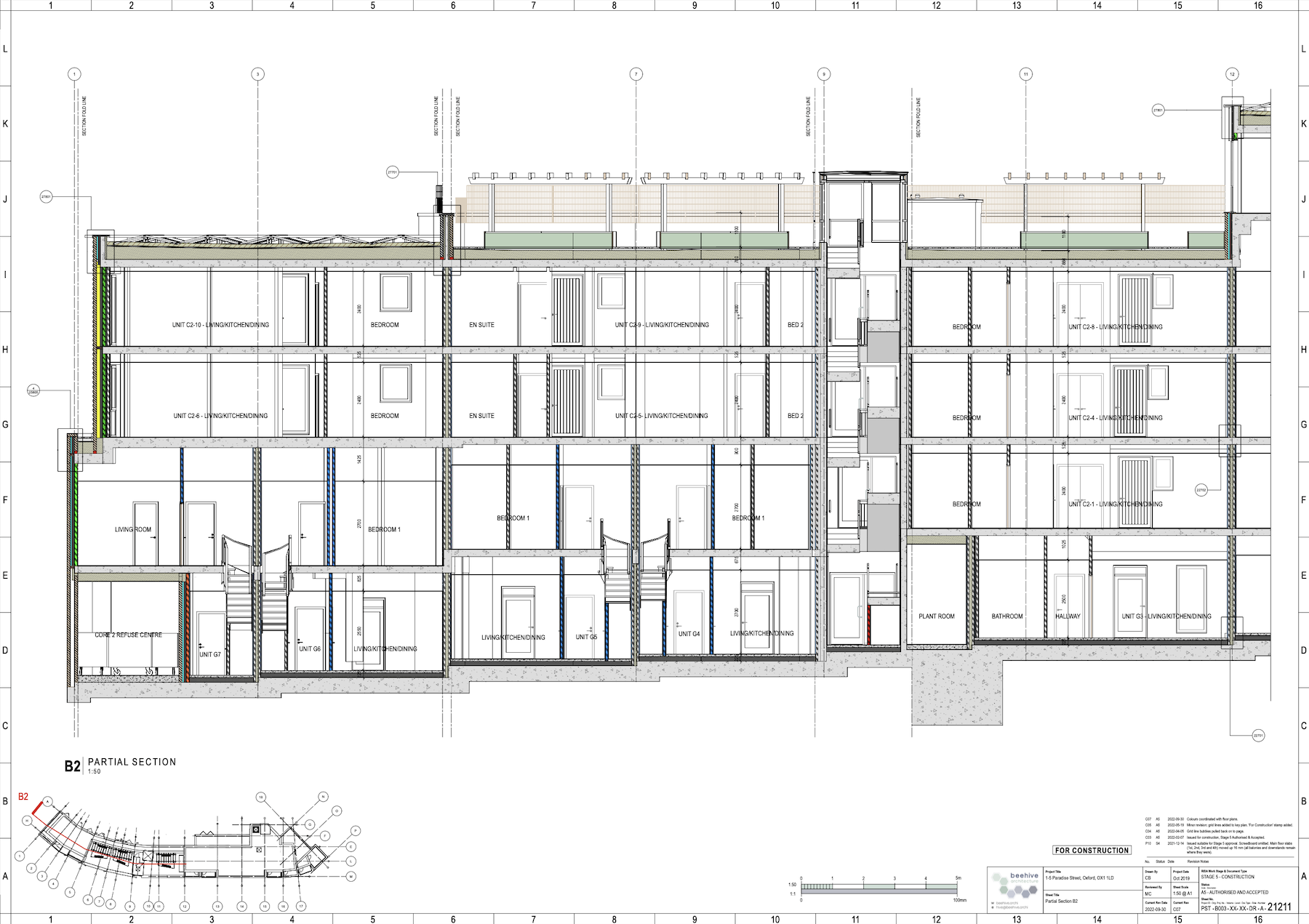

Yeah, I was actually going to mention that. That's how we currently work around it but it's time-consuming and messy, and it amplifies the number of errors you can make. Especially when you have a faceted building like the one I'm modelling now, needing six separate sections to take a long section through it.

Edited January 6 by Christiaan

[Christiaan 1,004]

16 hours ago, Jonathan Pickup said:

like the site model section tool...



Oh right, the site model section tool can do this?

[_James 53]

In my opinion it would be better if there was one section tool that did buildings and site models. It seems a bit confusing to have two tools.
