Administrator Popular Post JuanP Posted August 31, 2023 Administrator Popular Post Share Posted August 31, 2023 Designing that dream kitchen or bathroom just got easier with the new parametric cabinets. You can create and customize configurations or easily replicate popular cabinet styles from more manufacturers. Layout and design built-in cabinetry for any space, creating more realistic visualization and more accurate documentation. 15 2 Quote Link to comment
dtheory Posted August 31, 2023 Share Posted August 31, 2023 been waiting for something like this for quite a while.. I design cabinets, but not often enough to justify the expense of Interiorcad. Quote Link to comment
TomKen Posted August 31, 2023 Share Posted August 31, 2023 Looking forward to this. For us final millwork drawings will always come from fabricator. However I always show the millwork as BIM objects for my plans, sections and interior elevations on my projects. Hoping this will speed up the process. Quote Link to comment
Matt Overton Posted August 31, 2023 Share Posted August 31, 2023 I want to love this but the poorly resolved junction of the cabinets to the hallway and ceiling is stopping me. Quote Link to comment
line-weight Posted September 7, 2023 Share Posted September 7, 2023 On 9/1/2023 at 12:15 AM, Matt Overton said: I want to love this but the poorly resolved junction of the cabinets to the hallway and ceiling is stopping me. Not sure exactly what you mean but I wouldn't really expect the cabinet tool to be able to resolve these junctions. Quote Link to comment
line-weight Posted September 13, 2023 Share Posted September 13, 2023 (edited) The first two things I wanted to see if the new cabinet tool could draw: (this is based on how kitchen cabinets are usually made/installed in the UK) 1) The base sitting on legs (sides of cabinet don't go down to floor) - Yes it can (good, although I'd like the option of drawing the legs but omitting the kickplate) 2) Services void at rear (the back panel is inset, so there's a void space between back of cabinet and wall) - I don't think it can, but happy to be corrected. The type of service void I mean is illustrated here: https://www.lemonsqueezykb.co.uk/our-cabinets.html Why does it matter? Because there might well be stuff like pipework running in there, and I might want to show this on a section. If I can take a section through a kitchen made with standard units and this void can be shown automatically without custom modelling or fiddling in annotations, that saves me some work. Additionally, showing the cabinets as the actually are, avoids any confusion when putting dimensions on a drawing. If I want a cabinet set out a bit, for example, I want to be clear whether I am giving the dimension to the back edge of the cabinet walls, or to the back panel of the cabinet. Edited September 13, 2023 by line-weight 3 Quote Link to comment
line-weight Posted September 13, 2023 Share Posted September 13, 2023 (edited) dp Edited September 13, 2023 by line-weight Quote Link to comment
zoomer Posted September 13, 2023 Share Posted September 13, 2023 (edited) Hmmh, I tried the Cabinet Tool Settings - and see default imperial unit number translations to ugly numbers everywhere. At one point I really want a VW that is not contaminated with any hidden imperial units body of thought. Edited September 13, 2023 by zoomer 1 Quote Link to comment
Matt Overton Posted September 19, 2023 Share Posted September 19, 2023 On 9/7/2023 at 5:49 PM, line-weight said: Not sure exactly what you mean but I wouldn't really expect the cabinet tool to be able to resolve these junctions. It is one of those attention to detail or ease of use "tells" to me. If the tool was easy to use and the people making weren't rushed they would have gone into the model being used for the video and cleaned up the awkward-looking junctions to stop them detracting from all the good things going on. 1 Quote Link to comment

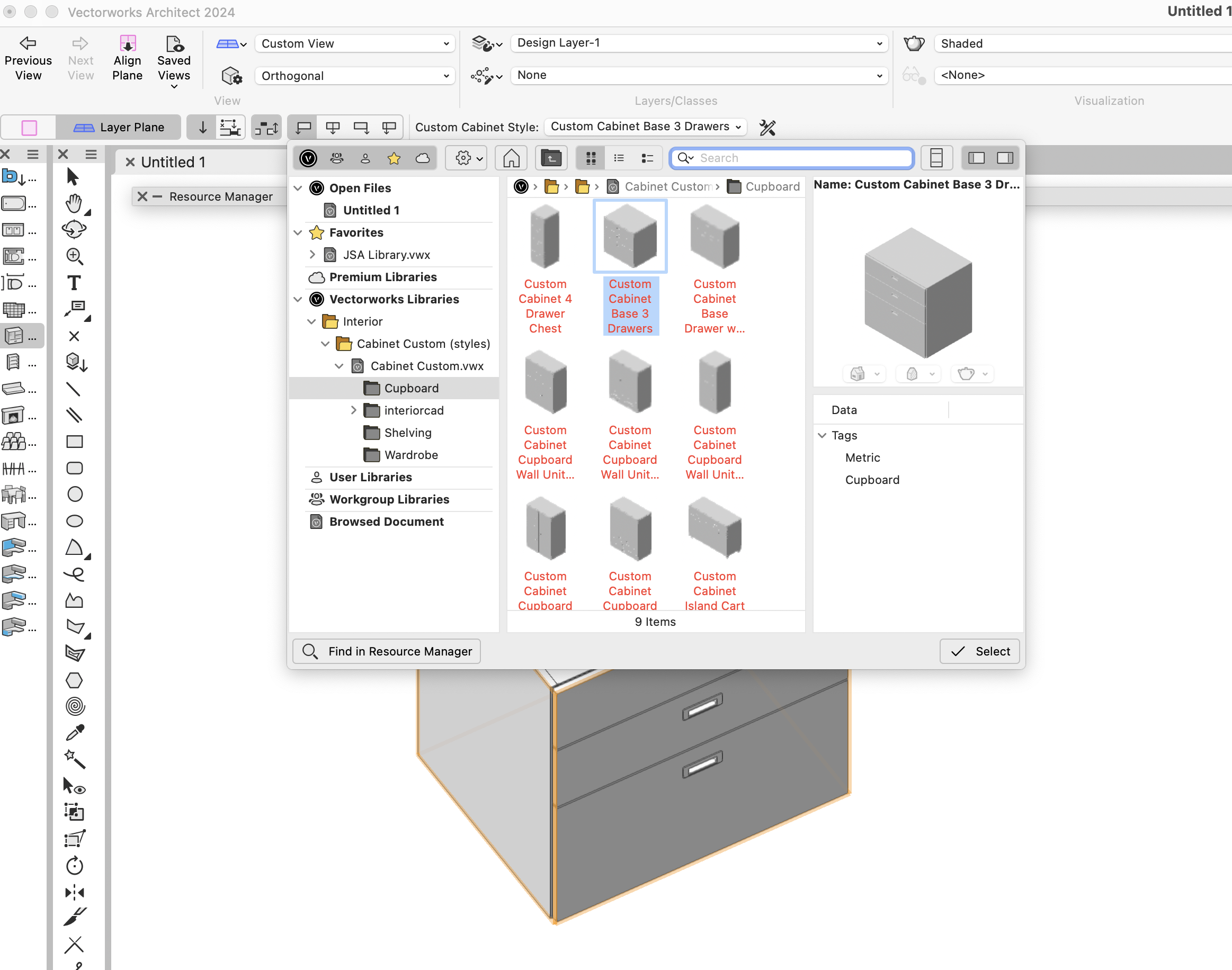

jason schneider Posted September 21, 2023 Share Posted September 21, 2023 Hey guys, Am I dumb? I’m not seeing any of the cool features demonstrated in VW University. No Dynamic Placement, or Duplicate Along Line modes. No Catalogs or Settings. All I have are a dozen or so cabinet choices from InteriorCad and NONE of the options shown in the “CABINET OBJECTS PARAMETRIC WORKFLOW” tutorial. Just installed 2024 yesterday. RM has been refreshed. What magic button am I missing? Thanks! Quote Link to comment
Marionette Maven Marissa Farrell Posted September 21, 2023 Marionette Maven Share Posted September 21, 2023 @jason schneider Looks like you've selected the Custom Cabinet tool instead of the new Cabinet tool. They're next to each other in the workspaces, so easy mistake! Hope this helps 🙂 1 Quote Link to comment
line-weight Posted September 21, 2023 Share Posted September 21, 2023 40 minutes ago, jason schneider said: Hey guys, Am I dumb? I’m not seeing any of the cool features demonstrated in VW University. No Dynamic Placement, or Duplicate Along Line modes. No Catalogs or Settings. All I have are a dozen or so cabinet choices from InteriorCad and NONE of the options shown in the “CABINET OBJECTS PARAMETRIC WORKFLOW” tutorial. Just installed 2024 yesterday. RM has been refreshed. What magic button am I missing? Thanks! It looks like you are using the older "custom cabinet" tool rather than the "cabinet" tool which is the one which has been revamped. Quite understandable that this should cause confusion. It's very typical of VW, having things with almost the same name to make things more difficult than they need to be. 2 Quote Link to comment
jason schneider Posted September 21, 2023 Share Posted September 21, 2023 Bingo! The "Cabinet" tool wasn't in the palette. Thanks for the clue everybody. Cheers! Quote Link to comment
Marionette Maven Marissa Farrell Posted September 21, 2023 Marionette Maven Share Posted September 21, 2023 2 minutes ago, jason schneider said: Bingo! The "Cabinet" tool wasn't in the palette. Ahhh, the struggle of migrating custom workspaces 🙂 3 Quote Link to comment
amorris28 Posted October 23, 2023 Share Posted October 23, 2023 Did they disconnect the countertop tool within the cabinet tool? I'm not seeing how to automatically generate counters with each cabinet. Quote Link to comment
rDesign Posted October 24, 2023 Share Posted October 24, 2023 7 hours ago, amorris28 said: Did they disconnect the countertop tool within the cabinet tool? I'm not seeing how to automatically generate counters with each cabinet. See the answer to this question from another thread: 1 Quote Link to comment
jason schneider Posted October 26, 2023 Share Posted October 26, 2023 I really like this tool so far! This is a long shot, but is there any way to eliminate these lines? Thanks! Quote Link to comment
line-weight Posted October 27, 2023 Share Posted October 27, 2023 There doesn't seem to have been a lot of discussion of the new cabinet tool. For me it's a bit underwhelming. One disappointment is that it's still not possible to have a service void at the rear, as mentioned in my post earlier in this thread. A question for non-UK readers - is this void a UK-specific thing, or is it standard in North America and/or other countries too? The other significant limitation is the ability to model corner units. The new tool doesn't allow unequal "leg" lengths whereas the old tool did, so it has become less flexible in what it can model. Quote Link to comment
E|FA Posted October 27, 2023 Share Posted October 27, 2023 10 hours ago, line-weight said: is this void a UK-specific thing, or is it standard in North America I haven't seen this in my practice (custom single family residential in Seattle, USA). We reduce the cabinet depth and furr out from the wall if needed. 1 Quote Link to comment
zoomer Posted October 27, 2023 Share Posted October 27, 2023 We have these Service Voids here too. Not for every standard Cabinet but those who are meant to include devices which need cables or pipes, or those where cables or pipes will cross, like where the sink is and other neighbored devices like dish washers will connect. Often mainly in the lower part only, where things happen. E.g. if there is a drawer on top, it may be able use the full depth. 1 Quote Link to comment
