Matt Hall Posted October 20, 2022 Share Posted October 20, 2022 Is there a simple step by step tutorial and or video showing how to make wall components wrap around a window. There are a lot of slick videos showing that there is great control over this now but nothing that breaks it down. It looks simple enough but it but its just not working for me. Im looking for a 3'0" masonry opening with the gyp bd wrapped at the interior head, jamb and a wood sill Quote Link to comment
zoomer Posted October 20, 2022 Share Posted October 20, 2022 Have not tried yet, but AFAIK you have to check and activate Wall Closure Settings for Window's openings - on both sides - Wall Style and Window Style ! Quote Link to comment
Tom W. Posted October 20, 2022 Share Posted October 20, 2022 In my (limited) experience it doesn't like it when you try to wrap components on one side on the wall only. And make sure you have a core component selected in your Wall as this affects things too. @Matt Panzer is the best one to help Quote Link to comment
Kevin Allen Posted October 20, 2022 Share Posted October 20, 2022 help could use more written step by step instructions 1 Quote Link to comment
Kevin Allen Posted October 20, 2022 Share Posted October 20, 2022 I should say the written help files are really excellent, I have not looked for this answer, but the university guides and really lacking. Quote Link to comment
Vectorworks, Inc Employee Matt Panzer Posted October 21, 2022 Vectorworks, Inc Employee Share Posted October 21, 2022 This should help if you haven't read it yet: https://app-help.vectorworks.net/2023/eng/VW2023_Guide/Walls/Wall_closure_settings.htm Aside from the Wall closure settings in the Wall, make sure the wall has a core component and the the insert has "Use wall closures" selected in the "Plug-in Object Options", "Plug-in Object Style Options", or "Symbol Options" dialog accordingly. 2 Quote Link to comment
Chris Rogers Posted May 9 Share Posted May 9 I've been trying for years to get any openings to wrap per the instructions. At this point I've have yet to ever make a single wall opening work correctly. Can anyone tell me what the problem is? I've attached a file containing a single wall (12" concrete with 1" of stucco on each face). I have a single opening. I set up the splay for 3" interior and 3" exterior. No change to the opening. I also set the stucco to wrap the entire opening. No change to the opening. It looks correct on the preview, but the opening won't change. Wall Closure Settings.vwx Quote Link to comment

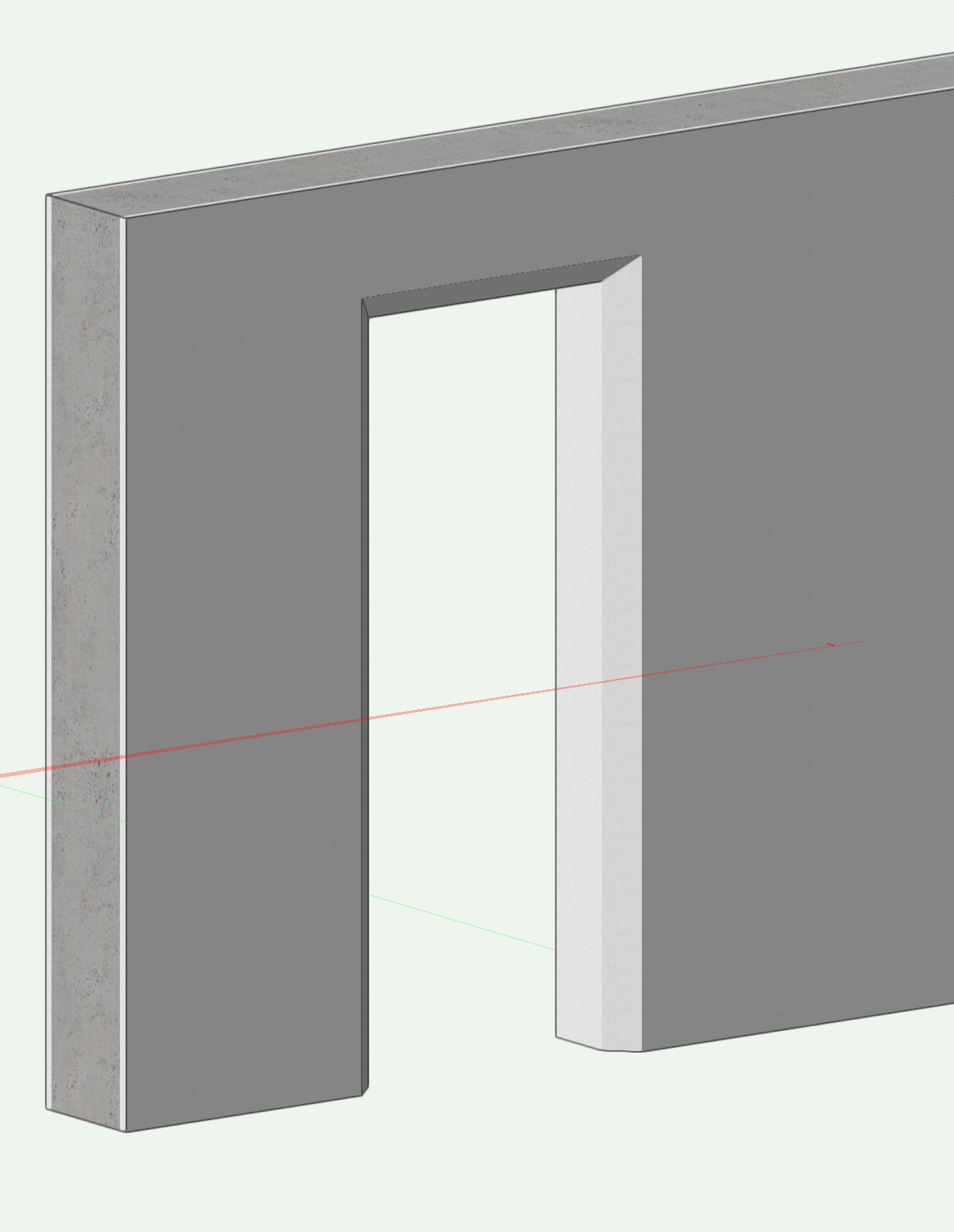

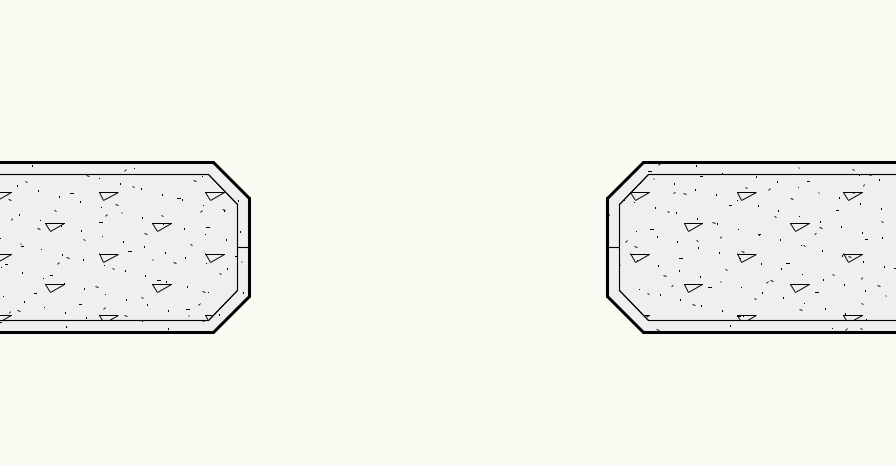

Tom W. Posted May 10 Share Posted May 10 7 hours ago, Chris Rogers said: I've been trying for years to get any openings to wrap per the instructions. At this point I've have yet to ever make a single wall opening work correctly. Can anyone tell me what the problem is? I've attached a file containing a single wall (12" concrete with 1" of stucco on each face). I have a single opening. I set up the splay for 3" interior and 3" exterior. No change to the opening. I also set the stucco to wrap the entire opening. No change to the opening. It looks correct on the preview, but the opening won't change. Wall Closure Settings.vwxUnavailable The problem is that you're using a Story-bound Wall in a file that is set up without Stories so it has zero height. If you edit the Wall to remove the Story bindings (i.e. make the Wall top + bottom bound to the Layer Elevation + make the component tops + bottoms relative to the Wall) + give it a height then the Wall Closures will behave as expected: 2 Quote Link to comment
Chris Rogers Posted May 12 Share Posted May 12 Thank you! I suspected it was something to do with height, but I would never have found that on my own. Quote Link to comment
