Truss Configuration from OIP
scottmoore posted a question in Wishlist - Feature and Content Requests
I find the "change configuration" and frankly the "replace truss type" operations to be rather clunky. - It seems extremely odd that the change configuration dialogue cannot locate a compatible truss item unless it is physically inserted on the design layer. In other words, If I have a truss that consists of 10' and 5' 20.5" x 20.5" utility truss and I need to add an 8' unit, simply importing the 8' unit into the resource manager does nothing. There seems to have to be an instance of an 8' piece on a design layer. - I find it particularly frustrating that a truss system is reassigned to the current active class if you reconfigure it. It would be far more helpful if a truss system would maintain its class assignment when reconfigured. - It is very frustrating that the change configuration dialogue only shows the available lengths of compatible trussing but nothing about models. Therefore if you have various different types of 12" x 12" truss in a drawing, you could see multiple options for each truss length available and have no idea which is which. This is most likely handled using a particular naming specification in the symbol records, however, I do not know which field the change configuration function is searching for but probably easily fixed on my end. See the attached image.
-
- 4
-
-
- braceworks
- spotlight
- (and 3 more)
-
I wish you could reshape distributed loads with the reshape tool rather than trying to edit the path which won't allow you to see the underlying objects to snap your adjustments to. -
Hi All, I have a problem with calculating some truss systems. All give the error message "The static system could not be calculated". In VW23 on some trusses I get "Virtual FEM support gets load" In VW24 on some trusses I get "The truss system is not properly balanced" 8 Trusses won't calculate, all other trusses and hoist calculate normal. Of those 8 trusses, some only give the note: "The static system could not be calculated" with no other warnings on that truss system. Any one any ideas? Thanks!
-
We are hiring!!! TECHNICAL DRAWER / PROJECT MANAGER CAD (M/F/D) Join our german PRG Team!!! PRG_Stellenanzeige_Tech_Drawer_Project_Manager_CAD_06_2025_v4.pdf PRG_Stellenanzeige_Tech_Drawer_Project_Manager_CAD_06_2025_v2_16x9.pdf
-

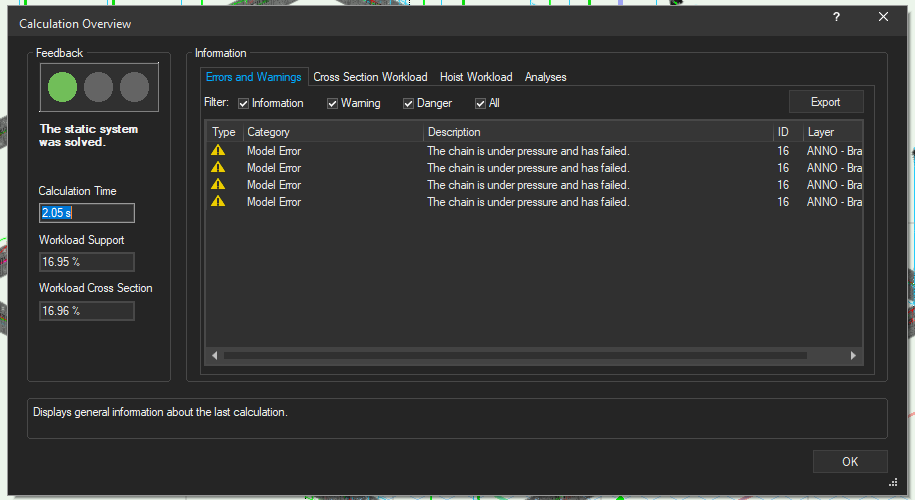

Hi, I am experiencing a 'Chain is under pressure and has failed' error on a mothergrid structure. In the real world, this wouldn't be failing, so I am confused about why Braceworks is seeing an error. I have tried turning on 'compensate drops', but this seems to have no effect. All the motors seem to be included in the calculation, but the 4 with the error are not the reporting any loads. Any help would be great!
-
Hi all, Is it possible to connect a Structural Member and a Truss together? I have a venue which uses truss spreaders on top of I Beams. I would like to connect all the sub-hung hoists/bridles to these spreaders, but these spreader trusses throw errors as they aren't suspended. Any help would be greatly appreciated, thanks!
-

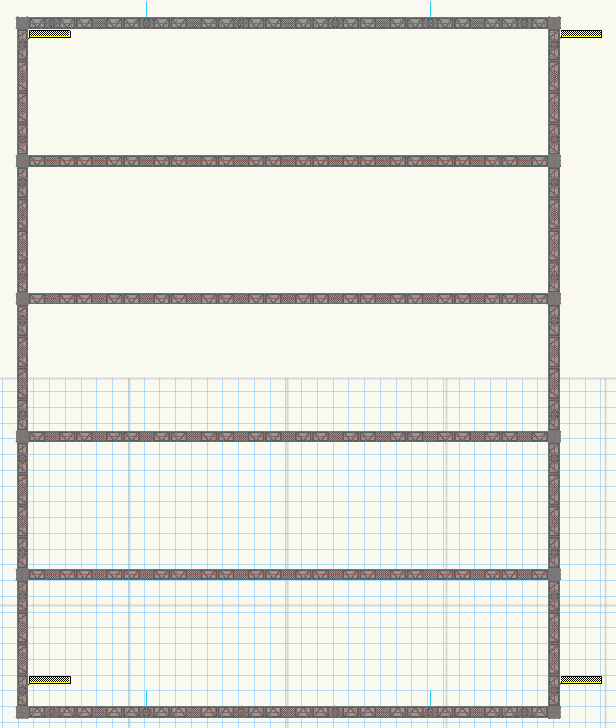

Alright team... I'm trying to build a square-ish truss grid, suspended by 4 motors (simple, got it working no problem). The trick is that I'm hanging video panels pointing down from the truss, so I need pipes running across the top of the grid at regular intervals. I used the lighting pipe tool because I know it calcs weight in braceworks. The trouble is, I can't get the pipe to connect to both sides of the truss with a truss connection, so it doesn't want to calculate. Has anyone had this problem before? Any workarounds? Extending the 2 shorter pipes to 1 big pipe doesn't solve the problem either. Thanks!
-
Hello everyone. Does anyone knows a way to select only the deadhang bridles in a drawing? I can't figure out how to do it. If I select a Deadhang and try to do a select simular option. It also selects all 2 and 3 Leg bridles. Greetings Martijn.
-
Good Morning Everyone, I have several truss symbols, That I need to add into my truss library for Braceworks. I have all of the engineering information but was wondering if there was a HOW TO located somewhere that I could quickly reference.
-
Hi All, Looking for some help and direction. I am trying to estimate the weight of a truss grid with decking. Its a 36' (L) x 12' (W) x 12' (H) grid out of Tyler 12" truss. I am stuck at the first layer with the truss connections. I keep getting a warning "Cross section types do not match". I read a few posts about corner blocks and I have tried to use the correct corner blocks for the drawing and not what I am using in actuality, ie 5-way verses 3-way. I have attached a screen shot of where i am at currently....
-
Hi, When I create a braceworks calculation report the text is low quality. I can't find any settings to improve the quality.
-
Hello Hive, I have a project in front of me where I'm hanging both truss/hoists and independent lighting fixtures (via beam clamps) onto a tent structure that has tiny weight limit. I was looking for a way to get all those elements to report back but haven't found a good solution. I tried structural memebers (which won't attach hoists if they are angled), hanging positions and house rigging points. All are limited in different ways and I'm at a loss at how to get a reported load across a single structural beam for all these different elements. Any strageties/ thoughts/hacks are welcome. Cheers! @JustinVH @jcogdell
-
Hi, When using Braceworks, I get accuracy errors on my corner trusses. The problem seems to be that there is no data in P1. How can I correctly determine this value? The schematic is not entirely clear about the axis and points corners. Maybe, this problem is already solved, but I cannot find anything in the form. kind regards, Mathijs van Ommen
-
Hi all, I've been having issues with the speaker tool and the array tool. With the speaker tool every now and again every speaker will disappear. I have confirmed multiple times that they are not in a hidden class or layer, and we're talking 70 speakers in multiple classes on multiple layers, so accidentally deleting all of them at once is highly unlikely. I've tried re-importing the symbol and doing a custom selection. For now when it happens I just open a previous file and copy and paste the speakers in. Still wastes a lot of time getting all the speakers back to their correct position, but this only happens with point sources. The array tool is special in its own way. I have my arrays on Braceworks hang positions, and when I change the trim height of the system, the bumpers will follow, but sometimes the speakers follow, sometimes they don't, sometimes they end up 20' higher than the bumper, and sometimes two arrays are fine, but then three others are completely out of whack, and I have to reconfigure or repopulate the arrays. Am I doing something wrong, or can I be sure these are bugs? Vectorworks 2020 SP3.1 (Build 537701) Designer/Renderworks Educational Windows 10 64bit
-
Hello users. Does anyone knows how to setup the Bridle Configuration so that is empty. Now every time I add a bridle Vectorworks automatic adds steels, shackles and stuff into it. Is there a way to keep it empty? Greetings Martijn.
-
I added this to an old thread and I thought I might need to re-up it here. How do I add a menu tool from the OIP as an Object Context right click option? I would like to add Select System Objects for Braceworks Truss as a right click option.
-
Have been having constant issues with Braceworks and corner blocks. 1) When using corner blocks in a system, the system is deemed unsolvable due to "geometry accuracy too low". 2) When trying to system check or calculate a system with corner blocks, Vectorworks freezes up (beach balled) and needs to be force-quit. This happens when the system is left as truss, put in a group, or converted to a hanging position. Any one have any fixes for this? Note I have tried the following: Have adjusted the Geometry accuracy number Restarted VWX Restarted my computer Reinstalled VWX Repaired vector work, multiple times Updated my computer Copied to new file Reverted back to v2021 This has become incredibly frustrating and is causing issues with my work.
-
Hi all, I want to change the page size of my braceworks reports. Currently it's formatting in letter size. But I would like to change it to ISO-A4 size as standard. Can't find it in the BW prefs or any other prefs.. Hope someone can help me! Working with VWX2021 SP3.1 Thanks!
-

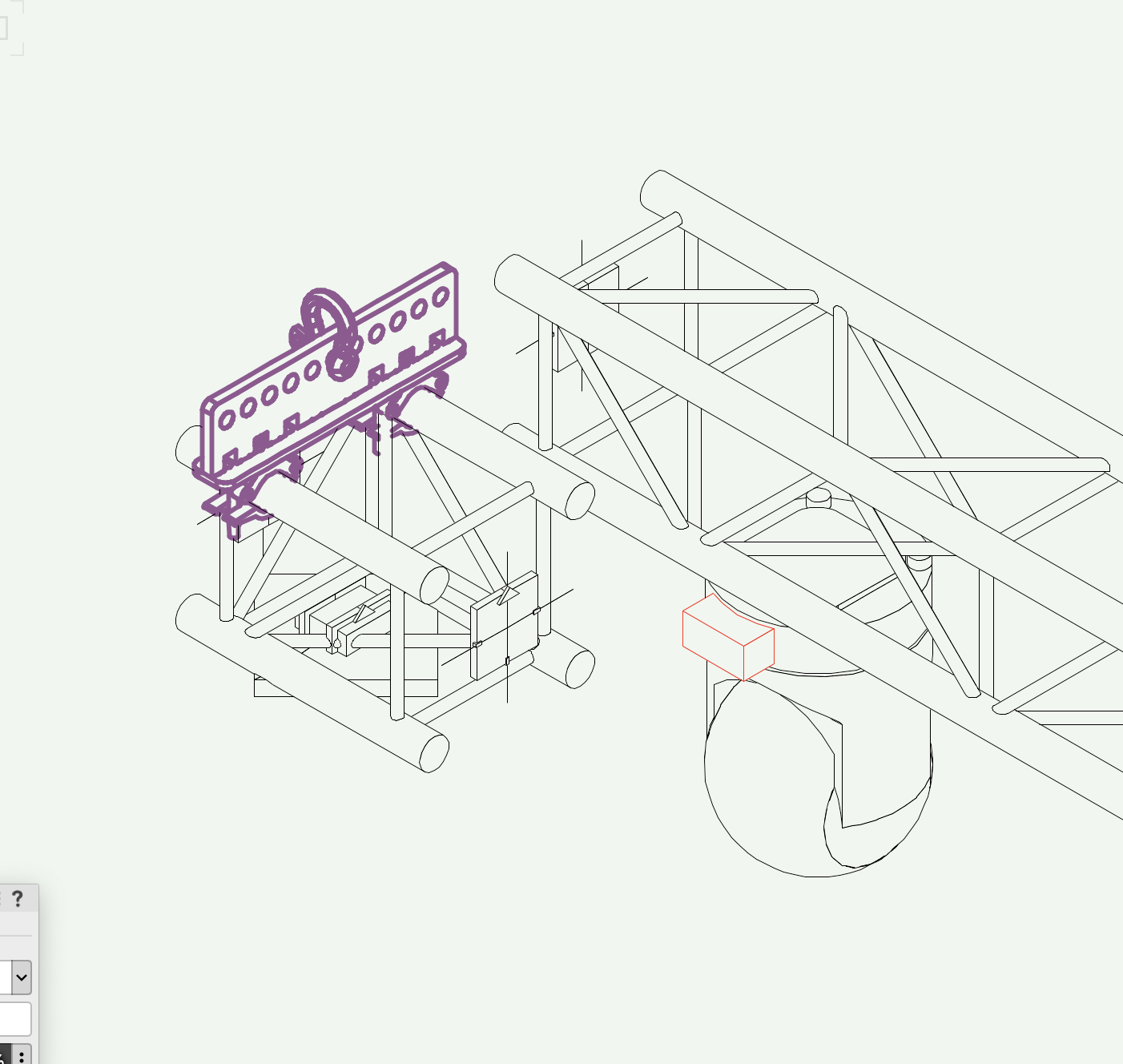

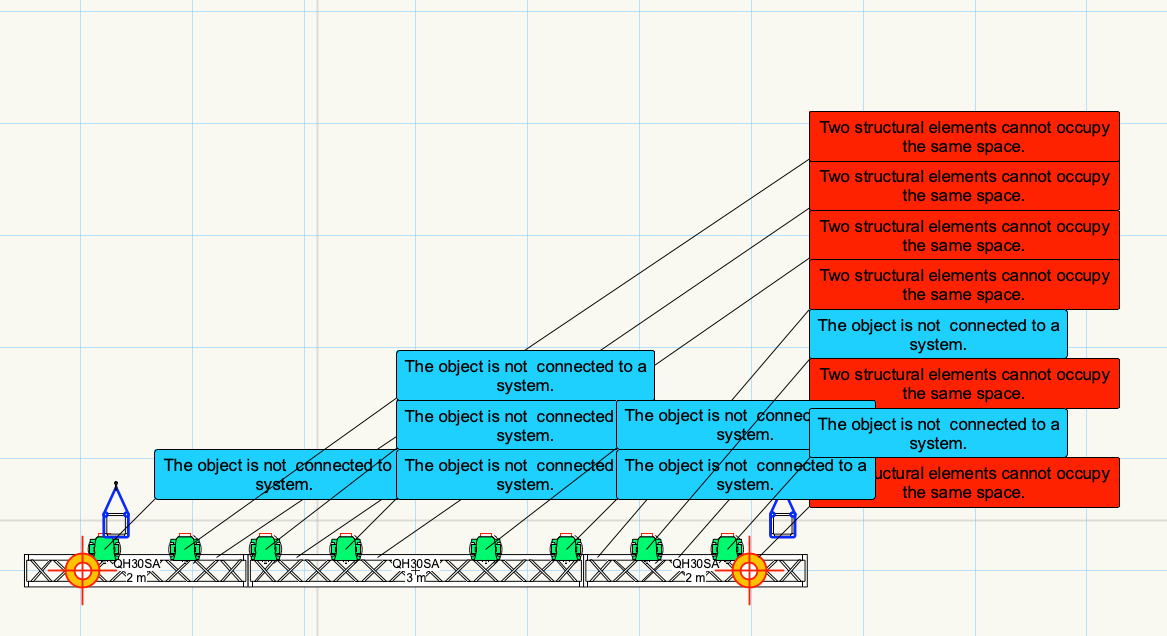

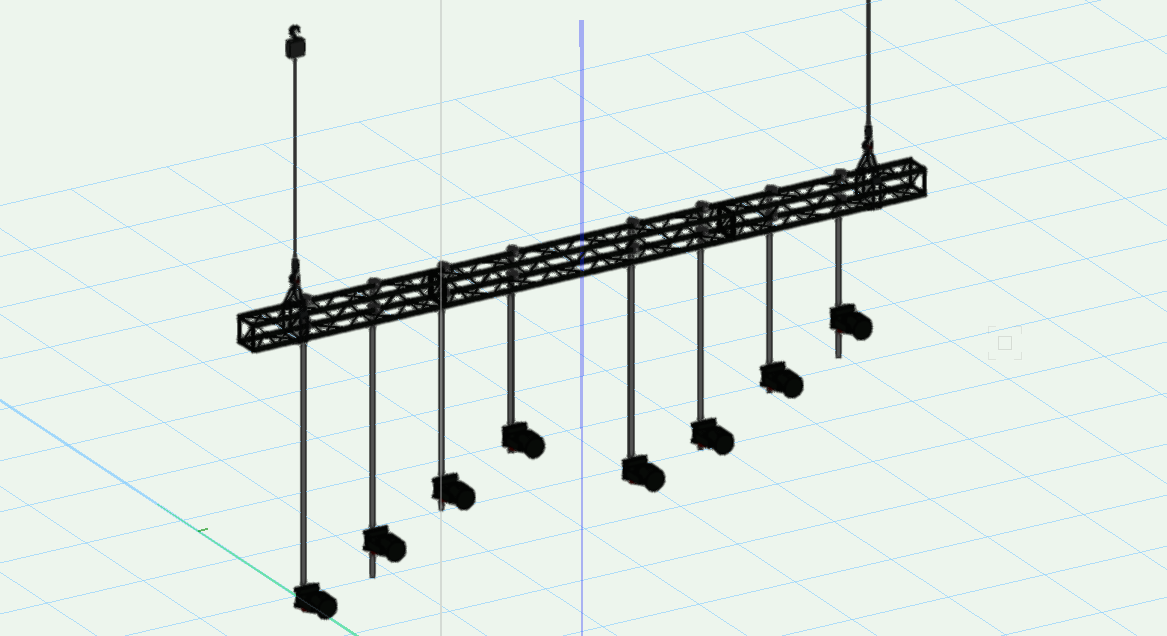

Maybe someone else can shed some light on this for me. I am putting in a audio array with hoist for a Braceworks report. As you can see in the picture, when I put the array in vertically I have no problems. However, when I rotate the array or even insert it on an angle the array disconnects it self from the hoists. Is there a setting that I need to change? Am I not doing the secret hand shake correctly? Or is this an actual problem? Thanks for the help, Sam
-
I am running 2022 and everything is running slower than ever and just checked and everything is up to date. Any idea on how to get things moving better.. Radeon Pro Software Version 19.Q4.1 Firepro w8100 and 96Gb of memory available it is maxing out on 45gb being used at full request.
-
When placing motors (or hoists) in VW2020, the X and Y values will not update to a given origin on a drawing. As an example, if you have 2 different hoist origins and you toggle back and forth between them, the motors will not change their X/Y values.
-
There used to be a ton (damn these puns) of control with hoist 2D display / label legends... Where did all of that move to in v2021? Are we supposed to use Data Tags now?
-
I've run into a hiccup where if i want to hang a truss vertically from a single motor Braceworks defines it as not properly supported and requires the second motor to be attached. As the truss is hanging vertically it is sufficiently supported. Same as if using a T or X join peice of truss, if all connection points are not connected it believes it is not supported.
-
When duplicating a hoist or piece of truss it copies the ID and flags an error, can this be set to automatically create a new unique ID upon copy / duplication so as not to cause this every time. Same with mirror tool if you want the same truss setup on the opposite side of a room why would you redraw the entire thing when you can just mirror?
-
Hi All, I've just discovered the VW has posted the Braceworks presentation I did at the Design Summit back in 2018. It's a follow along type thing so there are questions and answers being done live. The working files for the session are also posted. 90% of the stuff shown can be done without the Braceworks add-on. Braceworks from 2018 Summit You'll need to log in to see the course. Some items are a little out of date as I did the session using VW 2019 and there have been improvements in 2020. I'm looking forward to see what fixes await in 2021. Best, Scott
