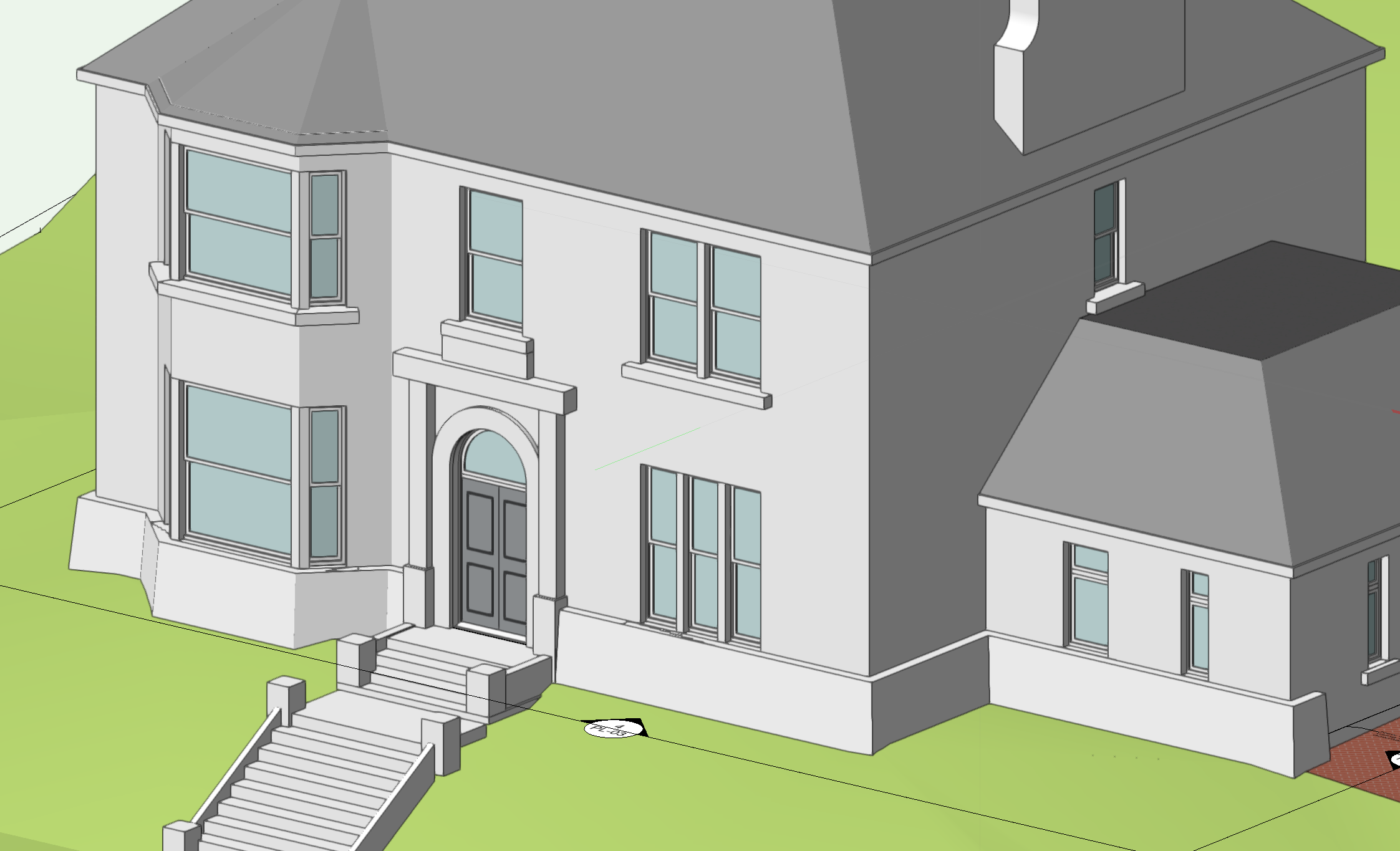

  1. Luis, I was asking if you could create a working package right now. Ie you will be creating the renders once all the internals are in place - walls / floors / doors / furniture / specifications etc. If I have an empty model (nothing on the in side) - yes, I can create these effects, but not once the model is a working model - it gets too bloated.
  2. Luis. These are presentation files (very nice I might add), but I am looking to generate working files. This is one of the biggest issues I have with VW - We are not there to create 'beautiful and pretty and awe-inspiring' images 24/7, yes sometimes - but very rarely. I need to produce working elevations from a working model that is being worked on and people will be building from. Can I ask a question re the picture you posted. Can you create a set of working, fully dimensioned and specified plans, sections and elevations from the same model?
  3. I am using the most basic Open GL. The 'textures' are solid colour clocks with no 'special effects' and the coursing being carried out by a simple brick hatch. It needs to be this way as renderworks textures have now proven to be far too overly complicated. The other real problem is that to create a viewport that can be printed, the resolution has to be at a level where there is no pixelating of the image - i regularly have to go up to 305 dpi to get over the problem (which again just adds time), but in this case I was rendering at 72 dpi. The real issue is insisting that the drawing needs to be rasterised. Why??
  4. On this thread - I wonder how much of an increase VW will be imposing this year? All the meaningful improvements last year were not in the building sector - same again for this year (please note I said meaningful - which I mean fixing the long standing problems which VW has). Spreading the costs doesn't really help anyone in the long term - the bills still have to be paid, and if client's aren't paying bills: where does the money come from?? Things like wages and rent come first. Every September (for the last 3 years at least) I wait with bated breath to see if the broken parts of the software have been fixed and this year unfortunately there is no change. The VSS subscription cost is extremely high (I have 4 licences for my practice) - I understand that you need product development to improve and bring new features but please please fix what's broken and then we won't begrudge every renewal (not loudly anyway). I am actually of the mind that many people are maintaining their subscription in the hope that they will get a piece of design software that does what is says on the tin. There are other very competitive alternatives out there and there will come a time when we will have just had enough and go elsewhere.
  5. This is probably a question that has been asked many times before, but I have difficulty in accessing it, so here goes. The vast majority of our day to day work is to produce plans, sections and elevations to a standard that can easily be understood by clients, statutory authorities, contractors etc. I am not trying to produce photorealistic or 'high resolution' renderings on a daily basis - I actually don't want to produce a render, I would very much like Vectorworks to draw a set of lines that are representative of an elevation or a section and the ability to add some colour or detail without having to create an 'image' and worry about the resolution, the giveaway is in the name - Vectorworks - means lines, the name of the software should really be changing to Rasterworks as it is nearly impossible to produce vector drawings. The problem is that we need sometimes just to see what something is going to look like quickly and to produce an elevation or section from a model that shows just a modicum of colour or detail, is now so complicated that we as an office have all but given up trying to do it - doesn't look good when trying to run a business. How come that to generate the model in Open GL in the design layer, spin it around to my hearts content, zoom in and out, switch classes on and off, take screenshots etc. only takes seconds, but to generate the same level of detail in a sheet layer can take hours?? The real reason for this post however is because I am sitting at my desk trying to generate a set of simple elevations - taking 20 minutes each time because if just one thing is changed in the entire drawing, everything has to be generated from scratch again. And we wonder why other designers are continually mocking Vectorworks - ability to create instant and live elevations / sections. Live updates etc. Come on guys - what's the problem????
  6. That's either a bug or a screwup in my view.
  7. Did so this afternoon (after first post).
  8. No. My practice has been using VW since 2009 - I know what a bug is. Procedure: Start VW2021 New drawing (Architect Metric template) Draw something (I drew a wall) Draw a dimension - it may work Go to document settings/units and change the dimension tolerances (I picked 3 decimal places) Create a dimension - there's no dimension text. To fix, you need to go to Text/size and select a text size - it seems that the text size is not selected (I picked 12 points). That seems to permanently fix the problem.
  9. No this is VW2021. It seems that it might be a Mac issue. I have managed to sort it by pure chance. It seems that the text size needs to be selected and then the dimensions appear. But unless this simple step is taken, the dimensions do not appear.
  10. Please help. The dimension text disappears if the decimal precision's changed in the 'Document settings / Units / Dimensions' dialogue box. It doesn't just disappear, VW can no longer dimension - even if it is changed back. Can this be looked at as a priority.
  11. I was hoping (almost praying) that the people in Vectorworks had listened to our pleas for a design tool this is as good as others in the marketplace, but to no avail as they know that we are all tied in to them and to change design software would quite simply put most of us out of business. It is really saddening that we are still having to voice our complaints of basic errors in the software and no-one is listening - or caring by the silence. have the programmers even looked at this issue? My own view is that they have and realised that their coding (or whatever) needs to be ripped up and started again and we (as building designers) are not high enough up the food chain to warrant it being reviewed. I think that we need to start the 2022 wishlist now, but with a few mandatory exclusions to allow resources to be spent where they are needed. No changes to the UI - It's not perfect, but it works well (and has done for quite some time) and doesn't need to change every year No improvements to concept modelling or any of the 'early design stage interfaces' - It's not perfect, but again they work No changes to the fancy coding algorithms for design (like marionette) - how many of your user base actually use this?? I could go on, as I realise that you have to innovate to improve, but this should never be at the expense of your existing users. Wishlist (not numbered as all are priority): Door / Window tools - I could write a couple of thousand words on what is broken (and it has all been said before), but I will summarise below: Being able to choose the anchor location of a door or window (not the centre of the window) such as the inside or outside of outer leaf of the external wall component in addition to the centre of the wall A simple check box to wrap the internal component(s) (if one exists) round the internal reveal up to the door / window frame. This could easily be identified by setting the component(s) function in the wall style to 'Internal Finish' and those components could be wrapped. E.g. plasterboard or plasterboard and service void etc. Allow us to anchor our own 3D components to windows and doors - cills (internal and external) / lintels (internal and external) / thresholds etc. as VW just cannot seem to get it right after many years of just not being able (or bothering) to fix it. Being able to add roof windows and dormers to window schedules - treat the roof like a wall. Roof Tool - Just rip up and start again (Not the freeform modelling which I don't think that very many people use, but the whole roof tool - it is just basically crap and not fit for purpose, as said before - treat it like a wall) Stairs - Multi level stairs required. Not to all buildings are 2 storey (I think you know that though) Get the new features working properly before release - Thinking about the new join railing / fence feature. Really needed fix (not improvement), spend a good 2 hours yesterday evening - couldn't get it to work Walls - Ability to change components in a wall elevation. Easy solution would be to allow us to simply cut out part of the external leaf (in 2D and 3D) and replace it with our preferred material - a single component wall for example - we could then quantify it!! Review of the curtain wall - allow us to edit components and move things like mullions and transoms using the move object command within the 'edit curtain wall' and not having to drag components Notice a common theme - These are the tools which we all require to use on a near daily basis, they need to work properly and without having to use 'workarounds' or annotation overrides' just so that we can produce a competent set of drawings. I put it out there - If we have to end up exploding and breaking up our model to edit it, then draw over the model in annotations to get an output drawing that can be presented to a contractor to build it for example - What's the point in drawing in 3D in the first place??
  12. Unfortunately, it's not locked or anything fancy. It's just been created using a raster pdf maker - I.e. it creates an image only and not the vectors required to convert to lines. I wouldn't think it has been done deliberately, just the way the originating firm has done it.
  13. Very simple solution, but only works if the pdf has been created using vectors and not by rastering. Import the pdf into a new blank drawing - choose design layer and scale to suit yourself Scale the pdf to the size you need it to be Ungroup it (cmd + U) Click away from it (to deselect it) Delete the 'bitmap' image - This should be on top You should be left with what looks like a filled rectangle with nothing in it Select all objects (there may be a number of groups and sub-groups - don't worry about it) and change the fill in the attributes palette to 'None'. It would also be good practice to change all lines to solid black with a thickness (I usually go for 0.18mm or 0.25mm) Ungroup everything (as many times as it takes) Delete the junk you don't want Line drawing created. As a side note - any solid fill will import and convert as a bunch of unfilled polygons, and you may get RSI from methodically going round the drawing and clicking to delete.
  14. Tasmin, There is a basic misconception in that we should be working in anything other than real world coordinates. Project coordination is critical to the exchange, in VW to confuse matters, there is a drawing origin as well as an internal origin. I have watched your webinar a number of times and it assumes that we all work of local grids and that we can decide where the origin is placed and in the 'rare' occasion when you need real world coordinates you have to ensure that the drawing is set up correctly. - WHY!!!! The UK templates already have the OS coordinate system input, so why does it not work. Too give you an understanding of how my projects are set up (site layouts etc.) - not individual designs Start with a blank metric template Import the OS Map (geo-referenced) - using the settings below This warning comes up. However, I know that the OS map will have a distant origin (I.e. - 0,0,0 could be hundreds or thousands of miles away - but that is correct), because if it didn't, I wouldn't be able to generate coordinates or share with outside parties. Do a quick check 'Geo-image' overlay to make sure that the site is correctly located according to VW (It always is doing it this way) Set the user origin to match the GeoRefencing coordinate system (If I don't do this, I cannot export a coordinated drawing) Import the topographical survey (if the above has been done, they will all overlay each other). Neither myself or my clients will not commission surveys that are on a local grid. Start drawing the site layout This works fine until I want to bring in a model (usually by referencing). The building model is always created on a local grid (centre of drawing on 0,0,0 etc.), but when brought into a real world scenario, it just fails. It is so easy to make a simple change that knocks the whole system out. I'm afraid to say - this statement is incorrect. VW does not do this. If you look back in the tickets I currently have an outstanding ticket on this matter (from April I believe) with this exact same problem.
