Christiaan

Slab Drainage default drain symbols: floor gullies needed

Question

All the default drain symbols available in the Slab Drainage out of the box are roof drains. It would be good to see a few floor gullies in there too, flush with top of slab.



2023660847_Screenshot2021-01-27at10_03_33.thumb.png.5fda3ba16ec69a80cb538893e824aa08.pngaco-floor-gullies.thumb.JPG.87f459a55cbb72c1215295fe66bcb2e6.JPG

Edited by Christiaan
  • Like 2

Share this post


Link to post

11 answers to this question

Recommended Posts

  • 0

You can add your own symbols in the user folder. BUT I find the way the slab drainage tool inserts these symbols into slabs highly unsatisfactory. Very hard to get them to insert at the correct elevation. I think I came to the conclusion that it was far better to insert them outside of the tool as hybrid symbols with wall hole component to clip the slab. But be interested to know if you've had more luck



See



  • Like 1

Share this post


Link to post
  • 0

Tom, I'm not sure I have a problem inserting them at the right level. For instance for a floor gully you need to make sure the top of symbol is set to Z=0 (for a floor gully that is). The 3D Home Component of the symbol does cut the slab as far as I can see but I find the top of can't be at Z=0; you have to make sure the top of the extrude for that sits just above zero.

Edited by Christiaan

Share this post


Link to post
  • 0

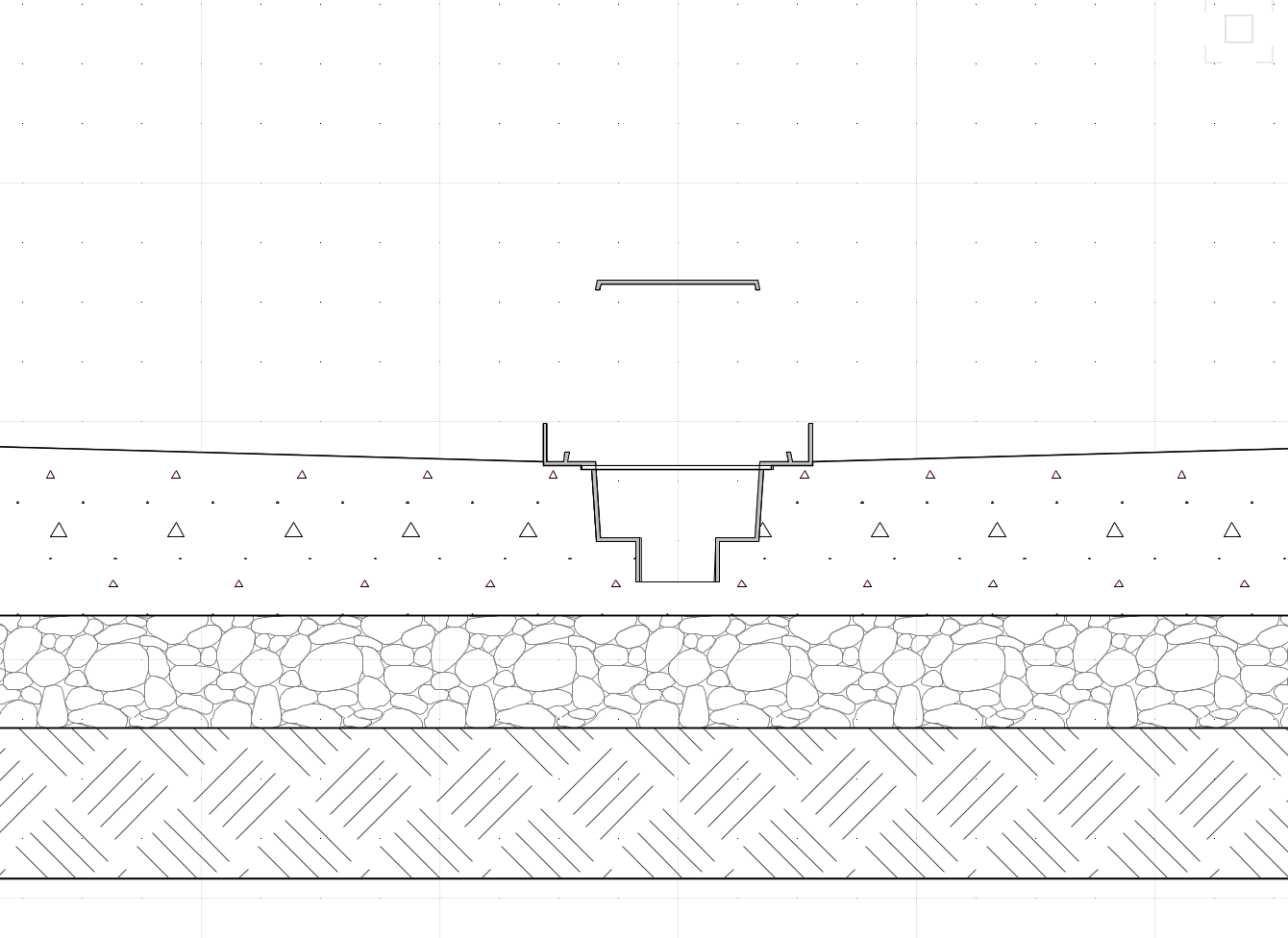

Just tested it again. This is what I get picking one of the VW drainage symbols at random:

461891713_Screenshot2021-01-27at12_04_27.thumb.png.5f266c7ee49044ee40339055687e7cb7.png310687115_Screenshot2021-01-27at12_04_44.thumb.png.c19a278760694be688fc9fd834ec0454.png

This is too high. The top of the upstand should be flush with the slab surface so that water can run in. I know from experience all the other symbols come in at the wrong height relative to the slab surface as well, in a completely random manner. In order to lower it I have to go into the symbol settings + fiddle around lowering it bit by bit to get it to right level. There seems to be no rhyme or reason to it. Yes you can set the Z height for a stand-alone symbol but you have no such option if the symbol has been inserted as part of the slab drainage tool. That's why I think it's better to forget about the slab drainage symbols + insert your own symbol using 'Add 3D Object to Slab...'. This way like you say you can adjust the Z height in the O.I.P. + get it exactly where it needs to be.

But do please tell me if I'm missing something really obvious!! I hope I am

Share this post


Link to post
  • 0
38 minutes ago, Tom W. said:

This is too high. The top of the upstand should be flush with the slab surface so that water can run in. I know from experience all the other symbols come in at the wrong height relative to the slab surface as well, in a completely random manner. In order to lower it I have to go into the symbol settings + fiddle around lowering it bit by bit to get it to right level. There seems to be no rhyme or reason to it. Yes you can set the Z height for a stand-alone symbol but you have no such option if the symbol has been inserted as part of the slab drainage tool.



If this is the case then it could be that the person who created the default content didn't understand the installation properly. However the example you've given looks correct to me. That upstand you're looking at is typically part of the upper section which is clamped down over the roof waterproofing layer.



Quote

That's why I think it's better to forget about the slab drainage symbols + insert your own symbol using 'Add 3D Object to Slab...'. This way like you say you can adjust the Z height in the O.I.P. + get it exactly where it needs to be.



I'd rather use the Drainage Settings otherwise you're complicating things. If you think a drain is set to the wrong height then copy of the symbol over to your user drainage settings file and edit the symbol height.

Edited by Christiaan
  • Like 1

Share this post


Link to post
  • 0

Thanks @Christiaan it's not like any roof drain I've ever used but you could be right. But the main thing is, I've just checked all the other symbols + they are all coming in at the correct height now! I swear they didn't when I've looked at this in the past. Anyway, apologies I should have double-checked before posting today. But glad to in the process have found it to now be working!

Share this post


Link to post
  • 0

These would be useful for landmark users as well, thought I would be looking for the equivalent for hardscapes rather than slabs.  We use trench drains quite often, and are using a "Micro slot" drain much more often around pools.




  • Like 1

Share this post


Link to post
  • 0

Hi all, Thanks for this information. We will review this and look at improving this in the libraries.

  • Like 2
  • Love 1

Share this post


Link to post
  • 0
On 1/27/2021 at 4:15 AM, Tom W. said:

Just tested it again. This is what I get picking one of the VW drainage symbols at random:

461891713_Screenshot2021-01-27at12_04_27.thumb.png.5f266c7ee49044ee40339055687e7cb7.png310687115_Screenshot2021-01-27at12_04_44.thumb.png.c19a278760694be688fc9fd834ec0454.png

This is too high. The top of the upstand should be flush with the slab surface so that water can run in. I know from experience all the other symbols come in at the wrong height relative to the slab surface as well, in a completely random manner. In order to lower it I have to go into the symbol settings + fiddle around lowering it bit by bit to get it to right level. There seems to be no rhyme or reason to it. Yes you can set the Z height for a stand-alone symbol but you have no such option if the symbol has been inserted as part of the slab drainage tool. That's why I think it's better to forget about the slab drainage symbols + insert your own symbol using 'Add 3D Object to Slab...'. This way like you say you can adjust the Z height in the O.I.P. + get it exactly where it needs to be.

But do please tell me if I'm missing something really obvious!! I hope I am


Perhaps the Roof Drain symbol you inserted which appears too high is a symbol intended to be used as an ‘Overflow Roof Drain with Water Dam’ ? The symbol you inserted would look fairly correct if that was its intended use.



Just a thought.



Example Overflow Roof Drain with Dam

Overflow Drain 1080






Share this post


Link to post
  • 0

@rDesign I think you (+ @Christiaan ) are completely right. I am convinced when I used the tool several months ago that not only that symbol but all the others were coming in at weird elevations but they're definitely not now so maybe I imagined it!

  • Like 1

Share this post


Link to post
