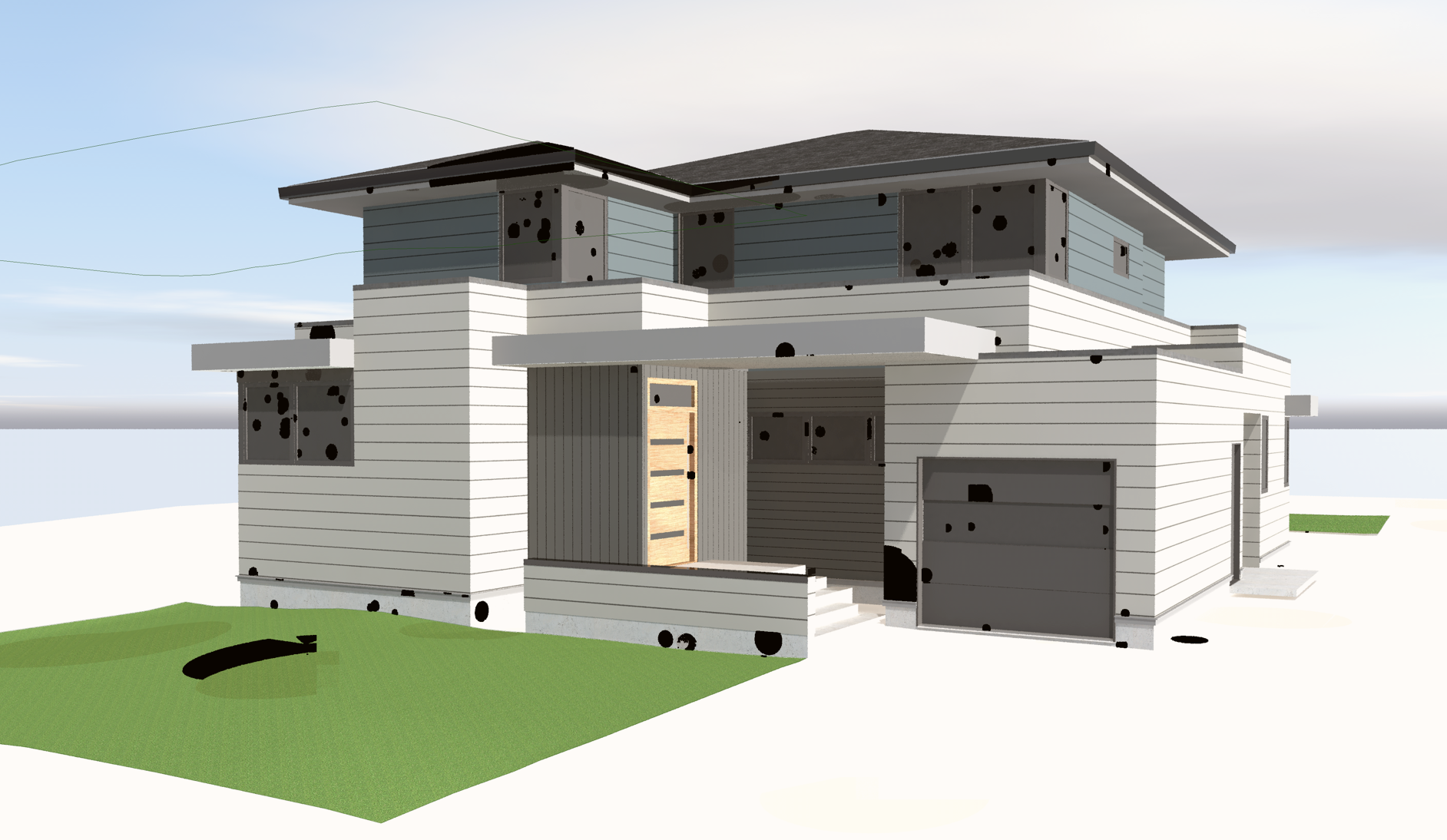

Dick Jenkins Posted January 3 Share Posted January 3 Occasionally I get these black spots in my renderings. Usually I have to refresh several times for them to go away. Super annoying though when I accidentially have my export to PDF in "Publish" set to refresh all viewports and they reappear. Quote Link to comment
Pat Stanford Posted January 3 Share Posted January 3 Do you have any objects far away from the origin? Turn on all your layers and classes (or if you have design layers at different scales do each scale separately. Go to Top and Select All. Does the drawing zoom way out? Repeat in an elevation view (front/left/right/back) to make sure you don't have something sitting far out in the Z direction. "Far Out" object often cause rendering problems. But it could be something else. Especially since they are only showing on the second floor. Quote Link to comment
Dick Jenkins Posted January 3 Author Share Posted January 3 48 minutes ago, Pat Stanford said: Do you have any objects far away from the origin? Turn on all your layers and classes (or if you have design layers at different scales do each scale separately. Go to Top and Select All. Does the drawing zoom way out? Repeat in an elevation view (front/left/right/back) to make sure you don't have something sitting far out in the Z direction. "Far Out" object often cause rendering problems. But it could be something else. Especially since they are only showing on the second floor. Well there is a gray one just above the garage door 😉 I will look at the objects in relation to origins problem. Quite often remnants from a referenced survey will make their way into a site model. A lot of times my surveys impart in at hundreds or thousands of miles from the origin. Is there a way to get a survey to come in at the center of the VW sheet? There is never an instance where I need to know the world geographical location of a site. Quote Link to comment
Dick Jenkins Posted January 10 Author Share Posted January 10 It's happening again. I am trying to add a site model to the scheme. Quote Link to comment
rDesign Posted January 10 Share Posted January 10 (edited) On 1/3/2024 at 12:43 PM, Dick Jenkins said: Is there a way to get a survey to come in at the center of the VW sheet? If you are importing the survey file as a DWG / DXF, click the ‘Advanced’ button in the lower left-hand corner of the Import DWG dialogue box. Then select ‘Location’ and choose the ‘Center first import, align all subsequent imports’ option. Quoted from the Vw 2024 Help File : Quote Depending on the coordinates of the imported file, objects in the file might be located far from the drawing’s internal origin, which can cause issues with Shaded rendering and with calculation precision due to rounding errors. It is recommended to center the first import about the internal origin at import, and align subsequent imports with the user origin. Normally, the internal origin and the center of the page are coincident, so this option also centers the objects to the page center. Edited January 10 by rDesign added images Quote Link to comment
rDesign Posted January 10 Share Posted January 10 31 minutes ago, Dick Jenkins said: It's happening again. I am trying to add a site model to the scheme. We’re you able to the spots to disappear before you tried to add the Site Model? Is the Site Model a referenced file? If the Site Model is a referenced file, then there might be some objects that are far from the internal origin in your Site Model file, same as before. Quote Link to comment
Dick Jenkins Posted January 11 Author Share Posted January 11 The spots were happening before I added the site model. The only way I have been able to make them go away is to keep refreshing the viewport until I get one with no spots. 1 Quote Link to comment
rDesign Posted January 11 Share Posted January 11 1 hour ago, Dick Jenkins said: The spots were happening before I added the site model. The only way I have been able to make them go away is to keep refreshing the viewport until I get one with no spots. In that case, if you’ve confirmed that you don’t have any objects far from the internal origin, and you’re still getting the dots — I would send your file into tech support and see if they can help resolve it. Quote Link to comment
