  1. Just browsing through the Site Design section this morning looking for strategies in creating site models for small residential parcels, when I remembered the residential model from the Intermediate Concepts course, which sped up my workflow considerably for creating accurate models of a clients home. I’m wondering if we could get a similar tutorial for site design. The basic Landmark introduction is just a curated set of videos introducing each tool, but there’s no demonstration of how each 3D element interacts with the other once placed on the site model. I would be interested in seeing how the development team has envisioned the creation of a proposed site model that includes pads, grade limits, slabs, hardscapes, landscape areas, additional grading, etc. from 2D graphics, in much the same way that the Intermediate Concepts video shows how one can generate slabs, walls and roofs from a simple building footprint. Other content could include resolving basic site modifier conflicts, the uses of stakes vs. contours, site modifiers vs. surface modifiers, strategies for publication, etc. Is anyone else using Landmark interested in this? Cheers
  2. You might try slightly adjusting the site model crop (R click "Edit Site Model Crop") to solve both issues. You can use the Reshape tool, draw a new shape, or copy and paste the parcel boundary into the edit window. Are the contours based on stakes from a survey file or from another source of vector data (ie a DWG or SHP file)? I tend to import contour lines from a GIS source and create my source data from that, but I've seen other folks do it with stake objects. Either way, VW will interpret them as 3D polygons, like slices of cardboard, which is why you're getting that wrap-around on your drawing boundary. You could try extrapolating the source just past the boundary edge, then use the property line to clip the visible data. The contour labels seem to be a source of frustration for a lot of users, bringing the crop in slightly to eliminate the crowding of labels at the edges is the only real effective strategy I've seen. I play with the contour labelling in the site model settings menu to clean things up when I'm presenting to a client, but it can be a real headache for a construction document.
  3. @unearthed I have a degree in landscape architecture but recently quit my job and have begun taking the self-employed route with small residential site design. I have some ambitions with working at a larger scale but I'm not set up just yet to take on those types of projects. In general I use QGIS to populate base maps with infrastructure, cadastral and environmental data, and from there I run an environmental analysis at the neighborhood scale and export too and parcel data as .dxf for use in VW. I've fussed around with LASTools but I work on Mac and updated to OS 14 recently and have run into some trouble with interoperability between WinE and OS 14, so that's on hold. I'm curious to see if I can translate LiDar into point clouds that VW can read for illustrative purposes. Anyway, I'm always interested in tips and discoveries other users are making in the course of their work. Thanks for your input! PWF
  4. I’ve run into this issue before. Based on what I’m seeing (I’m typing off my phone and can’t download the drawing) it looks like you may not have it on the appropriate layer, either the site model layer itself or on a layer above it in the stacking order. Are you just trying to create a texture bed or landscape area with texture? For the former I generally use the “create objects from shapes” command and create a site modifier texture bed. The 3D option to display a landscape area as a texture bed is a new feature I haven’t explored yet but I understand it’s intent to be to give some contextual information for the material being used within the landscape area (like mulch or topsoil). The plant material should also display alongside the texture.
  5. @unearthed I’ve been using QGIS for a couple years and have been very happy with it for the same reasons you explain above. I’ve just started integrating it into my VW workflow primarily as a way to quickly generate base data from which to create a model and begin designing. I’m wondering if you have any tips for inter operability between QGIS and VW? Currently I export GIS data as a Dxf file and then tweak it to fit my drawing but always looking for better efficiencies for working between the two. Cheers

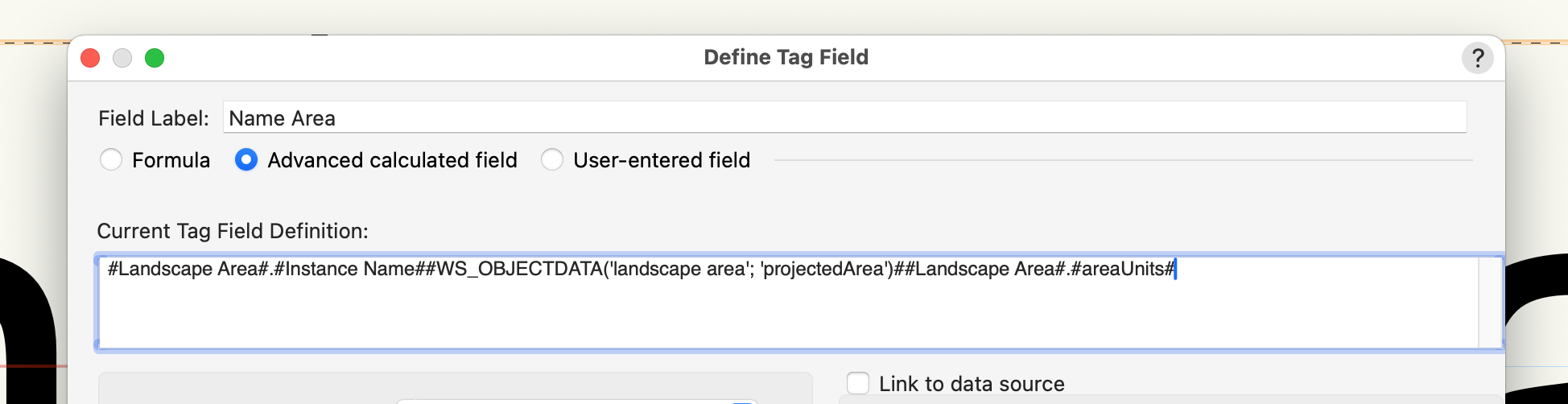

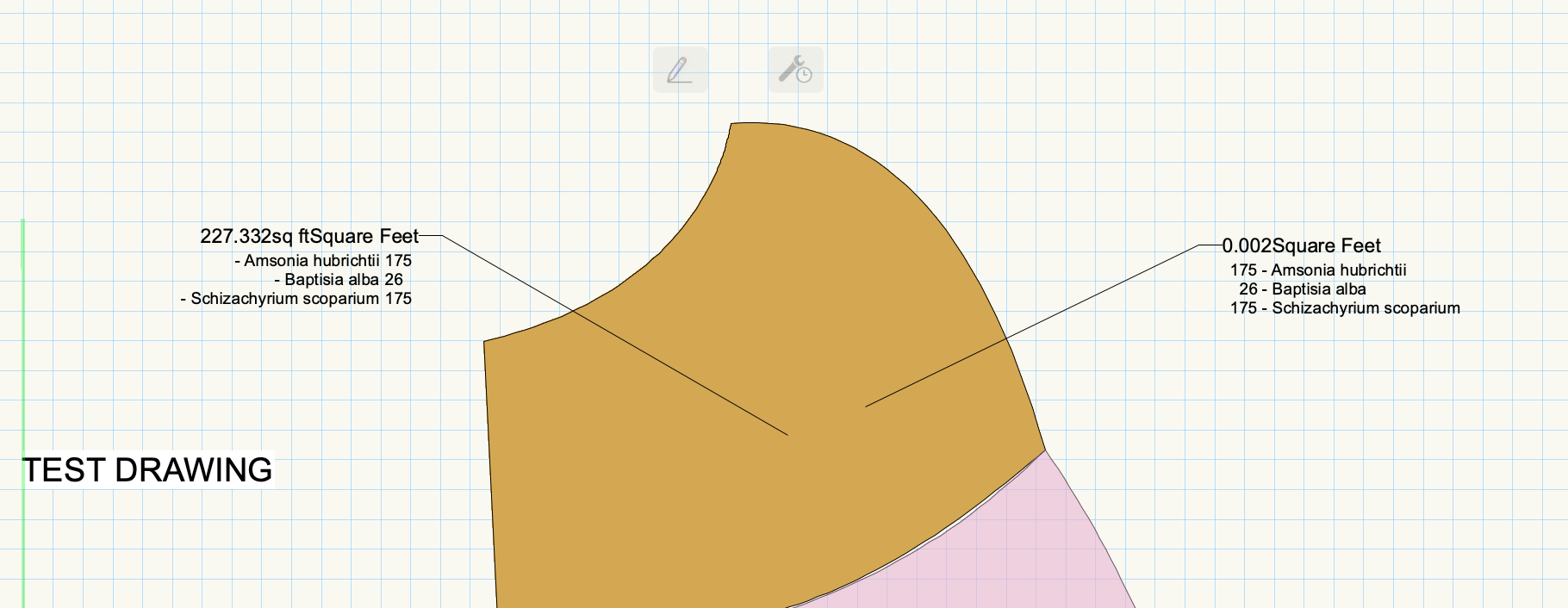

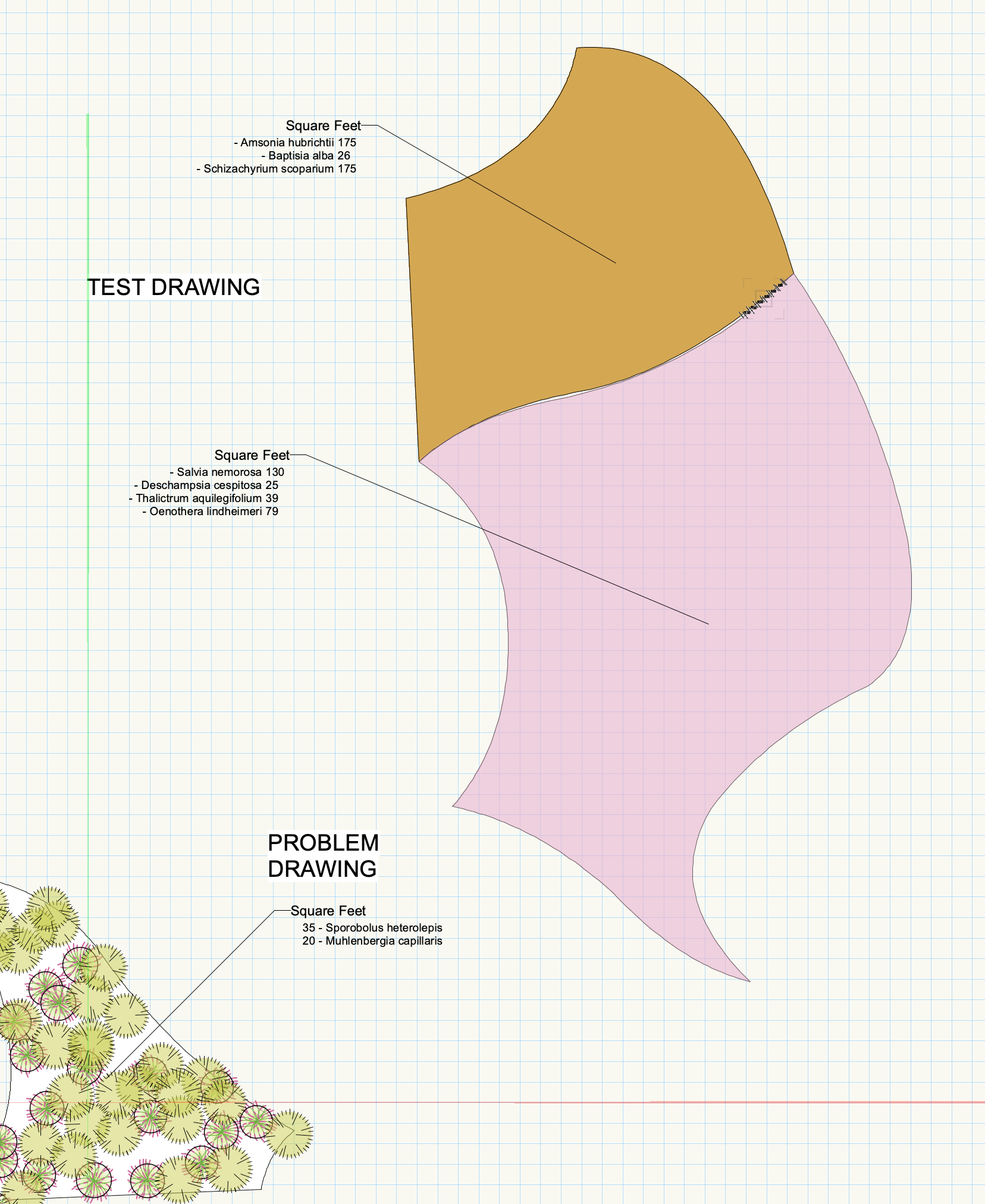

  6. I believe I'm having a similar issue. I've created several landscape area styles fill in various plots, which worked wonderfully initially using the new match properties tool mode, but now these are not updating after editing plant materials and fill. Screen shots and file attached if helpful. Cheers ChavisParkNorth.vwx
  7. What progress has there been in the years since this thread was last updated? I'm having a similar issue in VW 2019 with a shapefile with Z-values in feet. VW is translating those as decimal inches. I'm sure theres an issue of scale, I'm still a new user, just seeing if theres a quicker fix than me spending an afternoon chasing it down.
  8. I'm using a student version of VW 2019 and playing with the Create Section Viewport command to cut some sections in a site design. The site model is several acres wide and I only need to view a small slice, but no matter how short I draw my section line, VW seems to want to create a section of the entire site along the vector of that one segment. I'm able to work around this using Edit Crop once the section is rendered, but I'm wondering if I'm missing something in the initial set-up to help speed up the drawing time, or is this is how all you folks in the office plan your coffee breaks?
  9. I've also come to mistrust the efficiency of graphic conversion software. Fortunately, copying and pasting in place inside edit mode has proved sufficient for my needs at the moment. Thanks MichaelK for the suggestion. Long days and pleasant nights. PWF
  10. Same category, different issue. I imported a hand-drawn grading plan with the intent to use it as a reference for editing contours, similar to attaching an XREF in Autodesk. But when I enter Edit Proposed Contour mode the raster image disappears. Thought anyone? PWF
