  1. I love that the forum automatically added “2 years later..”!
  2. Probably not the issue but check your serial number to see what products are activated. Renderworks should be listed.
  3. I have had many issues with the undo command as well and I think it may have been related to MSI Afterburner and RivaTuner. I have uninstalled them and my undo issues appear to have gone away.
  4. I uninstalled MSI afterburner and RivaTuner and my undo issues have gone away for the time being.

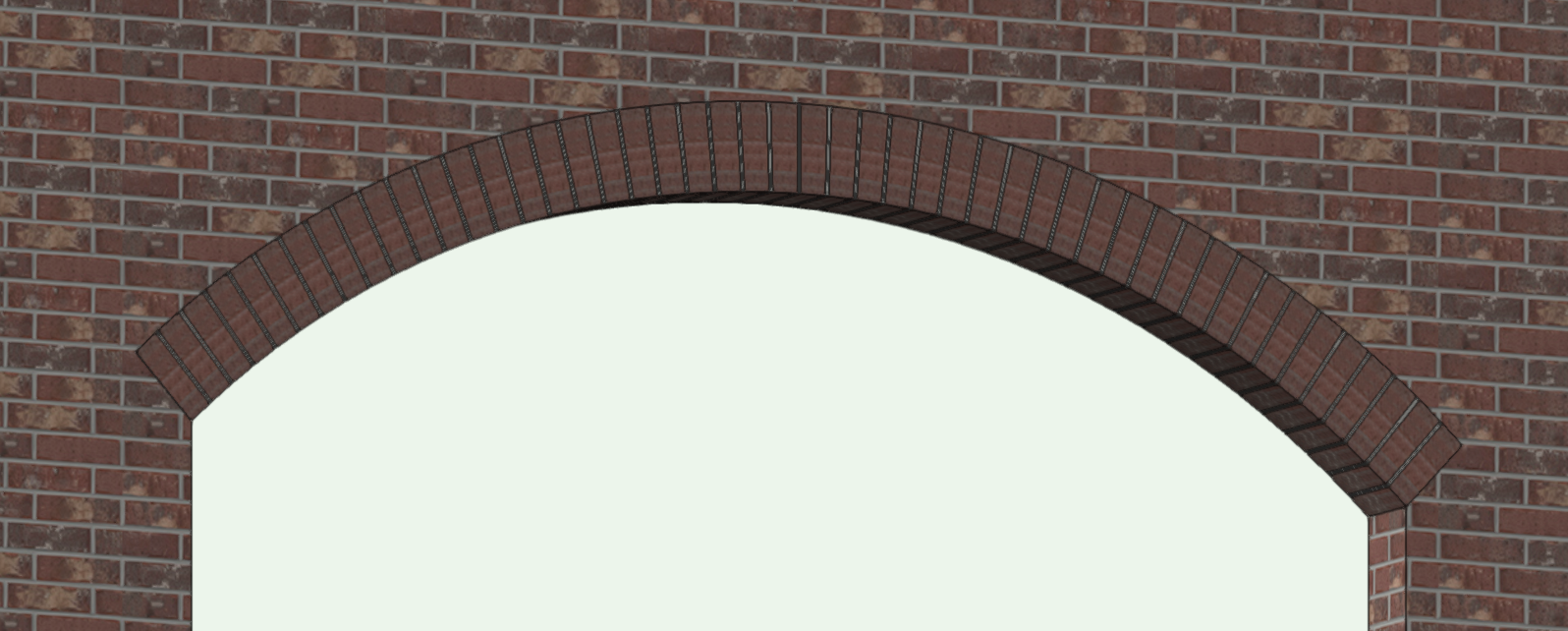

  5. In every version of VW 2022 has the following wall component wrapping issue when inserting Doors or Windows in wall that have component wrapping enabled. If you use the Window or Door tool the components won't wrap but if you invoke the command by double clicking the style in the resource browser it will wrap the components. SP-1.1 has the following bug as well. WALL AND WINDOW BUG.vwx
  6. Perfect, Thanks. Here is a script to import two Text Styles into the current drawing that are stored in: {Workgroup folder or user folder}\Libraries\Defaults\Text Styles\Text Styles.vwx' """ Script to import two text styles into current drawing. Custom scripts can be added to: {Workgroup folder or user folder}\Libraries\Defaults\Text Styles\Text Styles.vwx Modify Style1 or Style2 to import your custom style This Python Script may be freely distributed. No warranty provided. Use at your own risk. David Hamer, 2021 revision 10/21/2021 """ Style1 = 'Callouts 10 pt' #change this to import different text style Style2 = 'Dimensions 10 pt' #change this to import different text style StyleFolder = 'Text Styles' #Name of resource folder to create in current drawing SourceSub = 'Defaults:Text Styles' #Sub path ResType =109 #Text Style type folderIndex =13 #Libraries if vs.GetName(Style1) != []: ResourceList, NumItems = vs.BuildResourceList(ResType, folderIndex, SourceSub) while NumItems != 0: ResourceName = vs.GetNameFromResourceList(ResourceList, NumItems) if ResourceName == Style1: vs.ImportResourceToCurrentFile(ResourceList,NumItems) if vs.GetObject(StyleFolder) == []: vs.NameObject(StyleFolder) vs.BeginFolderN(ResType) vs.EndFolder() vs.SetParent(vs.GetObject(Style1),vs.GetObject(StyleFolder)) NumItems -= 1 if vs.GetName(Style2) != []: ResourceList, NumItems = vs.BuildResourceList(ResType, folderIndex, SourceSub) while NumItems != 0: ResourceName = vs.GetNameFromResourceList(ResourceList, NumItems) if ResourceName == Style2: vs.ImportResourceToCurrentFile(ResourceList,NumItems) if vs.GetObject(StyleFolder) == []: vs.NameObject(StyleFolder) vs.BeginFolderN(ResType) vs.EndFolder() vs.SetParent(vs.GetObject(Style2),vs.GetObject(StyleFolder)) NumItems -= 1
  7. Ok, Follow up question. Does anyone know how to set the Document Text Style preference for future text objects to be a particular text style via script? and How to move text styles into a Text Style folder via script?
  8. I have looked through the SDK and maybe I am missing it but I can't find the Object Type ID integer for "Text Styles". Anyone know what it is?
  9. I have a script that worked great in 2021 but now in 2022 the drawing labels that are updated by the script do not update in the drawing. Any ideas how to get it to refresh. I have tried the obvious refresh, redraw options. """ Imports 'Drawing Label VA - Dwg No. Sht No.' into drawing and replaces other styles with this style 2022 Doesn't refresh plugin. Edit plugin geometry to refresh drawing after running script. David Hamer, 2020 Revised 2021-10-19 """ if vs.GetName('Drawing Label VA - Dwg No. Sht No.') != []: ResourceList, NumItems = vs.BuildResourceList(16, 13, 'Object Styles:Drawing Label') while NumItems != 0: ResourceName = vs.GetNameFromResourceList(ResourceList, NumItems) if ResourceName == 'Drawing Label VA - Dwg No. Sht No.': vs.ImportResourceToCurrentFile(ResourceList,NumItems) if vs.GetObject('Drawing Label Styles') == []: vs.NameObject('Drawing Label Styles') vs.BeginFolder() vs.EndFolder() vs.InsertSymbolInFolder(vs.GetObject('Drawing Label Styles'), vs.GetObject('Drawing Label VA - Dwg No. Sht No.')) NumItems -= 1 def dlupdate(h): if vs.GetPluginStyle(h) != 'Drawing Label VA - Dwg No. Sht No. NTS': if vs.GetPluginStyle(h) != 'Drawing Label VA - Dwg No. Sht No.': #pt= vs.Get2DPt(h,0) #vs.DelObject(h) #vs.Symbol('Drawing Label VA - Dwg No. Sht No.',pt,0) vs.SetPluginStyle(h,'Drawing Label VA - Dwg No. Sht No.') #vs.SetClass(h,'A-ANNO-LABL') vs.ResetObject(h) #vs.ReDrawAll vs.ForEachObject(dlupdate, "(INSYMBOL & INVIEWPORT & (PON='Drawing Label2') & (V))") vs.DSelectAll; test.vwx Drawing Label format.vsm
  10. I was having Undo problems in 2021 also. Now I’m continuing to have those same problems in 2022. Most of the time it has to do with relocating walls or symbols within the walls that cause the undo to break.
  11. Ok next issue. I can make two options work with the YES@CONDITION:NO . But when I try to divide space number field with a number that I placed in the user field it only displays it displays it as text. Input #Space#.#Area##doc area_3_0#/#Space#.#11_User-Def Info 2# or #Space#.#Area##doc area_3_0#/#Space#.#11_User-Def Info 2##VAL# or #Space#.#Area##doc area_3_0#/#Space#.#11_User-Def Info 2##INT# Output 100/15 instead of 6.66 How do I force the tag to read #Space#.#11_User-Def Info 2# as a number rather than text?
  12. OK I got the @ outcomes to work but it only works with two options. I was hoping the “if” function would work so I could evaluate three options.
  13. I cannot get an IF expression to work in the Data Tag. What am I doing wrong? I am working with a Data Tag linked to a Space and and I tried the example directly from the help guide and it does not work. It only prints the formula in the tag. From the help guide
  14. Updated.... re-download script if you download it prior. Thanks to @michaelk for figuring out how to make Data tags appear in my schedule and for helping me with the textstyle. Here is my go at the plugin version of a symbol legend. Unlike @michaelk my script does not provide headers for the columns so if you need that try his version. This legend was created using "Tags" as a description, "Test Folder" as the source resource folder and since the symbols are inserted alphabetically I added a number in front of the name of each symbol in the drawing to determine the order that they were inserted in. If the filter fields are populated tool will use the filter. If the checkboxes are checked the tool will exclude items filtered. If text style "SymLegendTS" doesn't exist it will be created. Modify this style to change the text style of the labels. PIO can be exploded and manually adjusted. each symbol and description are in individual groups. I you try it out and find any issues please let me know. Symbol Legend.vso
  15. I have the handle to a symbol and I would like to create a separate group of a copy of the 2D symbol objects that can be inserted into the drawing with a plugin object script but I cannot get it to work. h5 = handle to symbol This works. I had to double vs.FInSymDef vs.BeginGroup() vs.Locus(0,0) vs.EndGroup gr1 = vs.LNewObj() h7 = vs.FInSymDef(vs.FInSymDef(h5)) while h7 != []: vs.CreateDuplicateObjN(h7,gr1,True) h7 = vs.NextObj(h7)
  16. I simplified the script to the following. It appears to be something with it being a point object plugin tool and not when it is run as a simple script as it works as a script but not as a plugin object. To my knowledge it appears to only be an issue with tag objects. h1 =vs.FSymDef() while h1 != []: vs.Symbol(vs.GetSDName(h1),0,0,0) if vs.GetTypeN(h1) == 92: h2 = vs.FInGroup(h1) while h2 != []: if vs.GetTypeN(h2) == 16: vs.Symbol(vs.GetSDName(h2),0,0,0) h2 = vs.NextObj(h2) h1 = vs.NextObj(h1)
  17. I have written a script and created a "Symbol Legend (custom plugin)" tool. It works great except for one issue. When the symbol is a data tag the symbol the tag symbol does not appear. If I explode the plugin the symbol appears. This only happens when there is a description to type on the screen or if there is a second symbol in the resource browser. If there is no description the tag does appear. Tag is the only symbol in the drawing Tag and Watercloset symbol are in drawing. VSO attached. """ This script inserts all of the symbols in the current drawing resource manager into the drawing with the text in Record "Legend Record" and field "Legend Text" if assigned to a symbol. It ignores symbols with the record but no text in the "Legend Text" Field. First run will create "Legend Record" if it does not exist. This Python Script may be freely distributed. No warranty provided. Use at your own risk. David Hamer, 2021 revision 10/4/2021 """ xP = yP = p4y = p5y = 0 def name(h): global nameSY if vs.PDescription == 'Tag': if notag == False: tagarray = vs.GetResourceTags(h) nameSY = (tagarray[0]) else: nameSY = '' if vs.PDescription == 'Symbol Name': nameSY = (vs.GetSDName(h)) if vs.PDescription == 'Record': nameSY = vs.GetRField(h,'Legend Record','Legend Text') def EvaluateSym(h): if vs.PExclude == True: if vs.GetName(vs.GetParent(h1)) != vs.PSymbolFolder: appendtolist(h) else: appendtolist(h) def appendtolist(h): if vs.PRecordName == '': hSEL.append(h) else: if vs.PRecordExclude == True: if vs.Eval(h, "(R IN ['"+vs.PRecordName+"'])") != True: hSEL.append(h) else: if vs.PRecordExclude == False: if vs.Eval(h, "(R IN ['"+vs.PRecordName+"'])") == True: hSEL.append(h) def DoIt(h5): global xP,yP,p4y,p5y,p3x,p3y,p2x,p1y h6 = h5 (p1,p2) = vs.GetBBox(h5) p1x=p1[0] p1y=p1[1] p2x=p2[0] p2y=p2[1] p3x = p2x-p1x p3y = p1y-p2y p5y = p4y+p1y-((p3y/2)+p1y) vs.Symbol(vs.GetSDName(h),xP+((p3x/2)-p2x),p4y-p1y,0) vs.TextOrigin(xP+vs.PControlPoint01X,p5y) vs.TextSize(vs.PTextsize) vs.TextVerticalAlign(3) vs.TextFont('Arial') name(h5) vs.CreateText(nameSY.upper()) p4y -= p3y + vs.PSymbolSpacing if vs.GetObject('Legend Record') == (): # Creates "Status and Phase" record if not present vs.NewField('Legend Record', 'Legend Text', '', 4, 0) hSEL = [] if vs.PSymbolFolder != '': if vs.PExclude == False: h1 = vs.FInFolder(vs.GetObject(vs.PSymbolFolder)) else: h1 =vs.FSymDef() else: h1 =vs.FSymDef() while h1 != []: EvaluateSym(h1) if vs.GetTypeN(h1) == 92: h2 = vs.FInGroup(h1) while h2 != []: if vs.GetName(vs.GetParent(h2)) != vs.PSymbolFolder: EvaluateSym(h2) h2 = vs.NextObj(h2) h1 = vs.NextObj(h1) for h in hSEL: if vs.GetTypeN(h) == 16: if vs.PDescription == 'Tag': tagarray = vs.GetResourceTags(h) if tagarray: notag = False DoIt(h) else: notag = True DoIt(h) else: DoIt(h) Symbol Legend.vso
  18. I have a script that I’m working on and I would like to display the coordinates of points but when I try to convert the points to string it says it’s a tuple not a number. many ideas i tried: print(p1) and vs.num2str(p1)
  19. Updated to center symbols and added tag script. I updated the script to center the symbols and center the text on the symbol. Also I added a second script to use a record rather than the symbol name. You will have to assign the "Legend Record" to the symbol in the resource manager and give it a name in "Legend Text" Field. Record will be created on first run if it does not exist. Sample file attached. "Create Symbol Legend" script - uses Symbol Names """ This script inserts all of the symbols in the current drawing resource manager into the drawing with the symbol name. Symbol and text are in an individual group. Use the distribute command to space them evenly after creation. This Python Script may be freely distributed. No warranty provided. Use at your own risk. David Hamer, 2021 revision 09/30/2021 """ xP = yP = 0 def DoIt(h5): global xP,yP vs.BeginGroup() (p1,p2) = vs.GetBBox(h5) p1x=p1[0] p1y=p1[1] p2x=p2[0] p2y=p2[1] p3x = p2x-p1x p3y = p1y-p2y vs.Symbol(vs.GetSDName(h5),xP+((p3x/2)-p2x),yP+((p3y/2)-p1y),0) vs.TextOrigin(xP+40,yP) vs.TextSize(9) vs.TextVerticalAlign(3) vs.TextFont('Arial') vs.CreateText(vs.GetSDName(h5)) vs.DoMenuTextByName('UPPER CASE',0) vs.EndGroup() yP -= 25 hSEL = [] h1 =vs.FSymDef() while h1 != []: hSEL.append(h1) if vs.GetTypeN(h1) == 92: h2 = vs.FInGroup(h1) while h2 != []: hSEL.append(h2) h2 = vs.NextObj(h2) h1 = vs.NextObj(h1) for h in hSEL: if vs.GetTypeN(h) == 16: DoIt(h) "Create Symbol Legend (Record)" script - uses "Legend Record" Record """ This script inserts all of the symbols in the current drawing resource manager into the drawing with the text in Record "Legend Record" and field "Legend Text" if assigned to a symbol. It ignores symbols with the record but no text in the "Legend Text" Field. Symbol and text are in an individual group. Use the distribute command to space them evenly after creation. First run will create "Legend Record" if it does not exist. This Python Script may be freely distributed. No warranty provided. Use at your own risk. David Hamer, 2021 revision 09/29/2021 """ xP = yP = 0 def DoIt(h5): global xP,yP vs.BeginGroup() (p1,p2) = vs.GetBBox(h5) p1x=p1[0] p1y=p1[1] p2x=p2[0] p2y=p2[1] p3x = p2x-p1x p3y = p1y-p2y vs.Symbol(vs.GetSDName(h5),xP+((p3x/2)-p2x),yP+((p3y/2)-p1y),0) vs.TextOrigin(xP+40,yP) vs.TextSize(9) vs.TextVerticalAlign(3) vs.TextFont('Arial') vs.CreateText(vs.GetRField(h5,'Legend Record','Legend Text')) vs.DoMenuTextByName('UPPER CASE',0) vs.EndGroup() yP -= 25 if vs.GetObject('Legend Record') == (): # Creates "Status and Phase" record if not present vs.NewField('Legend Record', 'Legend Text', '', 4, 0) hSEL = [] h1 =vs.FSymDef() while h1 != []: hSEL.append(h1) if vs.GetTypeN(h1) == 92: h2 = vs.FInGroup(h1) while h2 != []: hSEL.append(h2) h2 = vs.NextObj(h2) h1 = vs.NextObj(h1) for h in hSEL: if vs.GetTypeN(h) == 16: if vs.GetRField(h,'Legend Record','Legend Text') != '': DoIt(h) "Create Symbol Legend (Tag)" script - uses "Tag" """ This script inserts all of the symbols in the current drawing resource manager into the drawing with the text in Record "Legend Record" and field "Legend Text" if assigned to a symbol. It ignores symbols with the record but no text in the "Legend Text" Field. Symbol and text are in an individual group. Use the distribute command to space them evenly after creation. First run will create "Legend Record" if it does not exist. This Python Script may be freely distributed. No warranty provided. Use at your own risk. David Hamer, 2021 revision 09/29/2021 """ xP = yP = 0 def DoIt(h5): global xP,yP vs.BeginGroup() (p1,p2) = vs.GetBBox(h5) p1x=p1[0] p1y=p1[1] p2x=p2[0] p2y=p2[1] p3x = p2x-p1x p3y = p1y-p2y vs.Symbol(vs.GetSDName(h5),xP+((p3x/2)-p2x),yP+((p3y/2)-p1y),0) vs.TextOrigin(xP+40,yP) vs.TextSize(9) vs.TextVerticalAlign(3) vs.TextFont('Arial') tagarray = vs.GetResourceTags(h) vs.CreateText(tagarray[0]) vs.DoMenuTextByName('UPPER CASE',0) vs.EndGroup() yP -= 25 hSEL = [] h1 =vs.FSymDef() while h1 != []: hSEL.append(h1) if vs.GetTypeN(h1) == 92: h2 = vs.FInGroup(h1) while h2 != []: hSEL.append(h2) h2 = vs.NextObj(h2) h1 = vs.NextObj(h1) for h in hSEL: if vs.GetTypeN(h) == 16: tagarray = vs.GetResourceTags(h) if tagarray: DoIt(h) Legend Creator.vwx
  20. Try this. Not a schedule but this script works for me. The symbols are placed close together but after the legend is created I move the last group down and use the distribute command. File attached. """ This script inserts all of the symbols in the current drawing resource manager into the drawing with the symbol name. Symbol and text are in an individual group. Use the distribute command to space them evenly after creation. This Python Script may be freely distributed. No warranty provided. Use at your own risk. David Hamer, 2021 revision 09/29/2021 """ ecnt = reset = xP = yP = vcnt = ocnt =scnt= mcnt= pcnt = 0 def DoIt(h5): global xP,yP SymName = vs.GetSDName(h5) vs.BeginGroup() vs.Symbol(vs.GetSDName(h5),xP,yP,0) vs.TextOrigin(xP+50,yP) vs.TextSize(9) vs.TextFont('Arial') vs.CreateText(SymName) vs.DoMenuTextByName('UPPER CASE',0) vs.EndGroup() yP -= 25 hSEL = [] h1 =vs.FSymDef() while h1 != []: hSEL.append(h1) if vs.GetTypeN(h1) == 92: h2 = vs.FInGroup(h1) while h2 != []: hSEL.append(h2) h2 = vs.NextObj(h2) h1 = vs.NextObj(h1) for h in hSEL: if vs.GetTypeN(h) == 16: DoIt(h) Legend Creator.vwx
  21. I wrote a simple python script that may help. """ This script will change any screen plane object in the drawing to Layer Plane. Once run you can disable "enable legacy 2D features" on the "2D legacy mode" tab in document settings. Notes: 1. Some objects may move to the 3D plane and not the Layer Plane. 2. You will also have to run this script on any referenced files first. This Python Script may be freely distributed. No warranty provided. Use at your own risk. David Hamer, 2021 revision 09-23-2021 """ def assign(h): vs.SetObjectVariableBoolean(h,1160,False) vs.ForEachObject(assign,"(INVIEWPORT & (PLA='Screen Plane'))") Script Screen Plane to Layer Plane.vwx
×
×
