Strange artifacts appearing.

Question

This hasn't happened before, first time.

I'm in a file and 2d flat geometry is used to template out a series of extrudes.

On this file, the 2d draws over the top of the 3d, when it shouldn't and when you zoom in you get strange black artifacts all over the place.

They're simply extruded boxes, so shouldn't be an issue.

I think it's to do with the edge render thickness in the Open GL settings. I've tried all 3 graphic settings, and nothing changes.



Here's the strange thing though, switch to a perspective view and it all sorts itself... just not in ortho views!

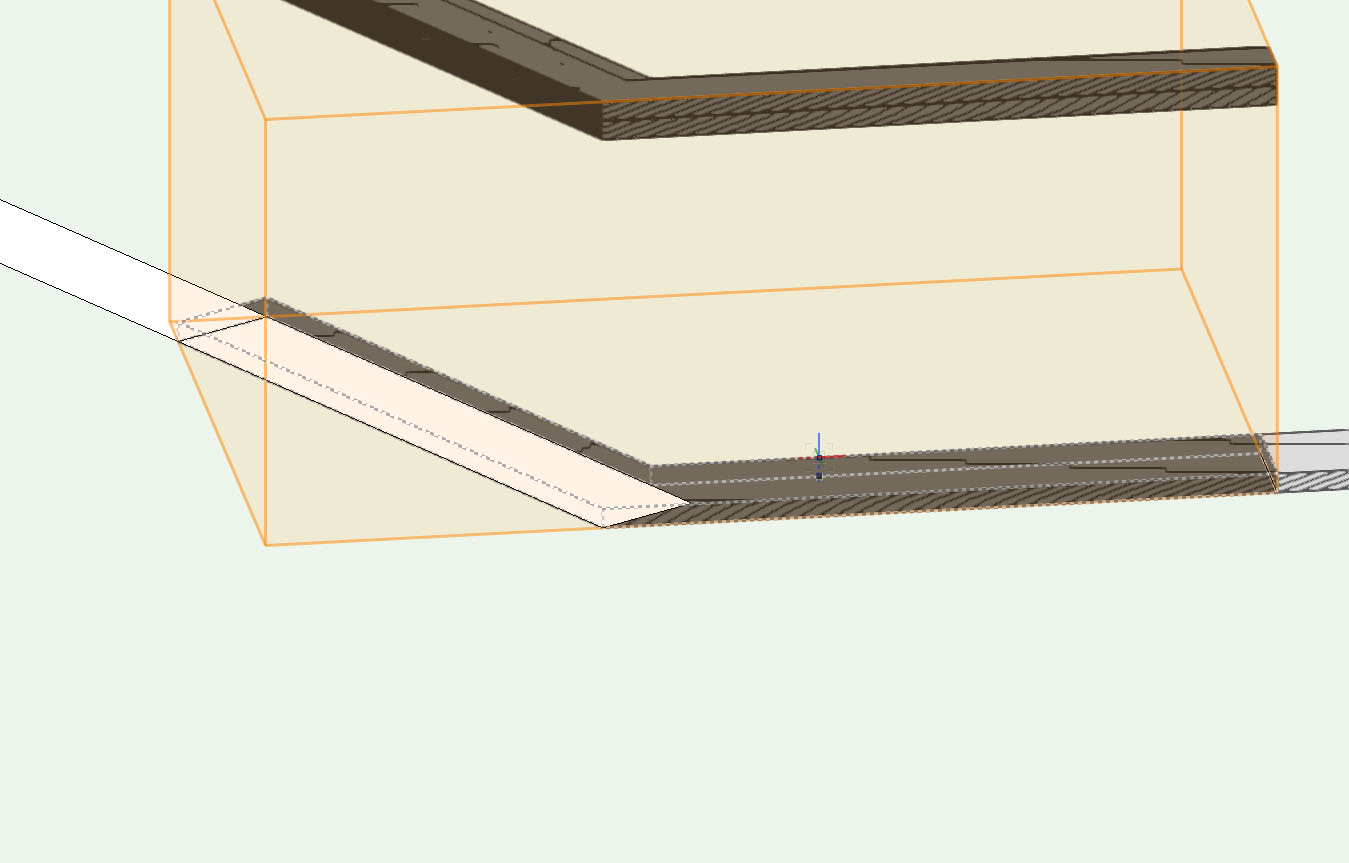

open gl_0001_Layer 2.jpg

open gl_0002_Layer 1.jpg

Share this post


Link to post

13 answers to this question

Recommended Posts

  • 0

To clarify: Disabling Edges gets rid of this effect? This is 2D geometry being used in a 3D view? This only occurs in OpenGL in Ortho, or also in Renderworks modes?

Share this post


Link to post
  • 0

Well, Disabling edges kind of hides the effect.... you still get those odd "serations" at the edge of the geometry.

It's 2d geometry, in the first shot before, but this one is 3d. Ortho only... perspective is good.



Seems to be a "normals" problem.

It's not battling geometry either, (I.e. there's only one object, and not two co-incident objects)



Not seen this before !


strange.mp4

Share this post


Link to post
  • 0

Its almost definately a normals issue, as the set working plane in face mode isn't picking up any geometry at all.

And the snaps are all weird!



There's a video attachment to the last message you might miss.



Edit!



There's an intermittant error with zooming as well.... sometimes the mousewheel moves you left and right, sometimes zooms in and out (no keyboard modifiers pressed)

Very unpredicatable!



Edited by RussU

Share this post


Link to post
  • 0

Restart your machine entirely and tell me if the same thing occurs.

Share this post


Link to post
  • 0

It seems to be a file specific thing. Restarting and loading the file makes it occur.



Copy and paste into a new document cures it, but the working plane tool doesn't pick up on faces.



There was some imported AutoCad lines on one layer, so we'll blame it on them! :)



Very odd.. I'll let you know if I can replicate it again.

Edited by RussU

Share this post


Link to post
  • 0

That looks REALLY familiar, and I'm pretty certain there was a specific and curable cause. I'll take another look on the forum history, I'm pretty sure it was worked through here awhile ago.

Share this post


Link to post
  • 0

I've just PMd you the file, and although the display artifacts are gone, I can't pick up any faces, and snapping is a bit odd on occasion too.





Share this post


Link to post
  • 0

I think I may have found the culprit.



Initially when I imported the AutoCad geometry, it was at a crazy co-ordinate, massively far away from the origin.



New geometry was generated and extruded at these extremities. Drill down into one of the extrudes and have a look at the x-y of the poly primitive. You'll see that it's at crazy co-ordinates.



Moving it back to near the 0,0 origin helps out a lot... an aweful lot. Working Planes return,  Screen draws nicely, performance is good.



Means I have to reset my existing geometry, but at least I think I've sussed it.



Hope this helps anyone else out.

Share this post


Link to post
  • 0

Nope.... Still happening.



Sorted out the location issues and thought it fixed it, and it did temporarily. But it's back now... Hmphh.



Its  also affecting the near clip on perspective... I'll post a video to show.


Edited by RussU

Share this post


Link to post
  • 0

And here's a video.



I am using a space navigator.

Also note, that the quick button for wide/normal/narrow perspective doesn't work, but the view drop down does (I used menu items rather than keys, so you could see what I was doing.)

Clipping.mp4

Share this post


Link to post
  • 0

Try layer importing into a new blank file, and then making sure no (not even a single loci) objects exist far from the origin or from the rest of the geometry:



If that still fails, get in touch with support directly and reference this thread so they can see the history and details.


Share this post


Link to post
  • 0
23 hours ago, Rummelplatz said:

check your point of origin :-)

only one and you will get rid of these lines...

also check if there is something else far away on your construction layer...sometimes there is a small line or a rectangle somewhere.



Share this post


Link to post
