Surface Hatches do not display in curtainwalls in hidden line renderings - VW 2020

[Samuel Derenboim]

Is it me, or are textured hatches not appearing on curtain wall objects? They seem to appear on other wall objects / geometry, but not on curtain walls. Could anyone please confirm?





*Edit, Yea, thought maybe it was a file, but copied an element from the file for a test and it seems to me that it's a bug.





Cwall Hatch Test.vwx

Edited September 27, 2019 by Samuel Derenboim
Clarity

[Guest Alex Sagatov]

@Samuel Derenboim Thank you for this submit. I am able to replicate this, and it has been submitted to our Engineering Team for further review (Reference Number: VB-165496).

[MrPilot]

I've tested this in Vectorworks 2024 (Swiss-German / DACH edition) and it seems to work correctly, however a surface hatch wasn't assigned to the curtain wall elements – only after adding a surface hatch to the texture of the curtain wall frame did everything display properly.



In a project I'm currently working on, however, it seems the issue persists depending on the setting of the curtain wall frame (e.g. texture by class [works] vs set manually [seems to only work on certain instances of a curtain wall with the same style]). Note that I'm usually working with assignments by style. It also happens that after changing the curtain wall settings, the shaded render mode fails to display texture until, for example, one deletes the curtain wall and undoes the delete operation.



Images:

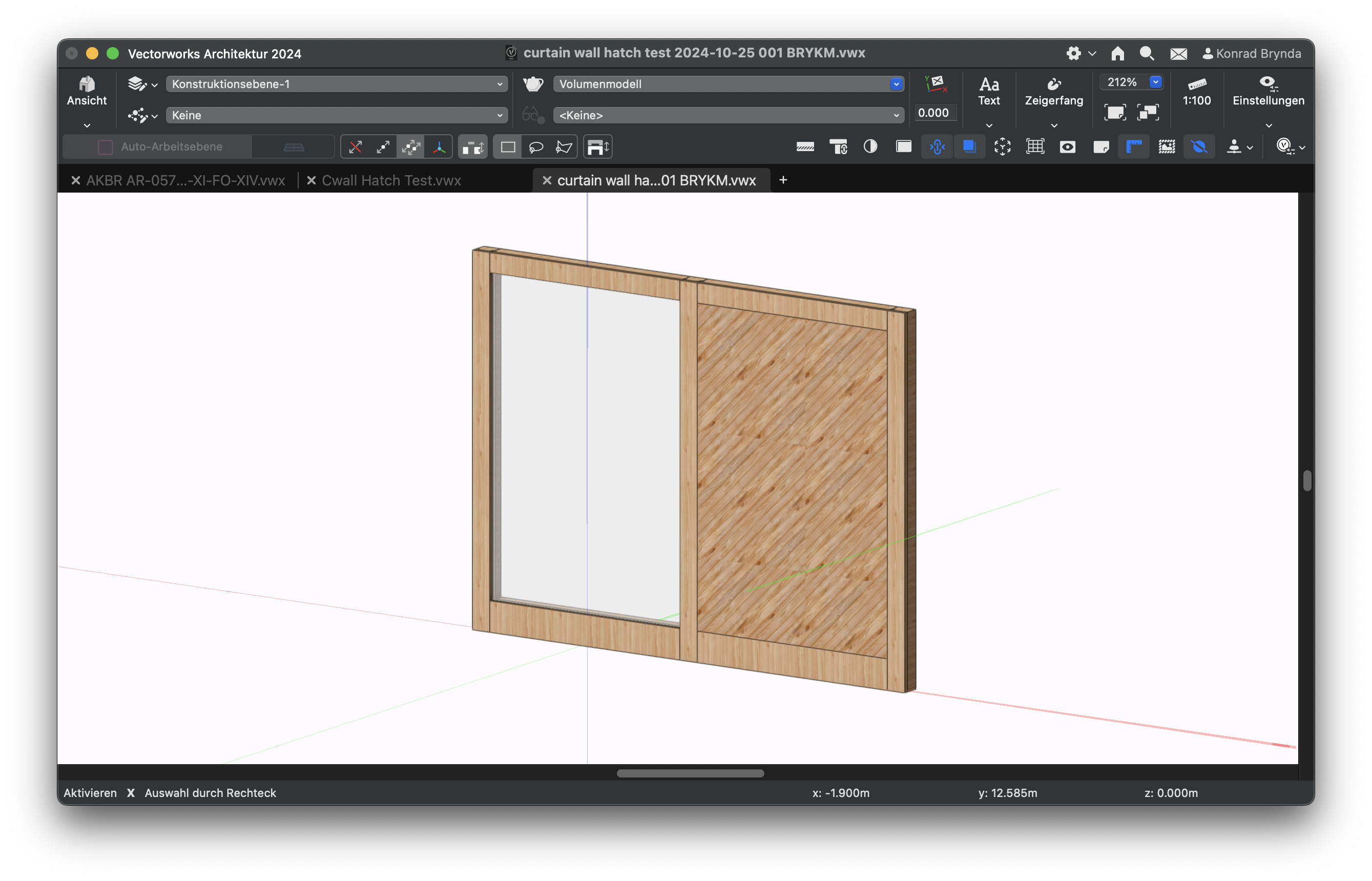

1. Shaded render mode.

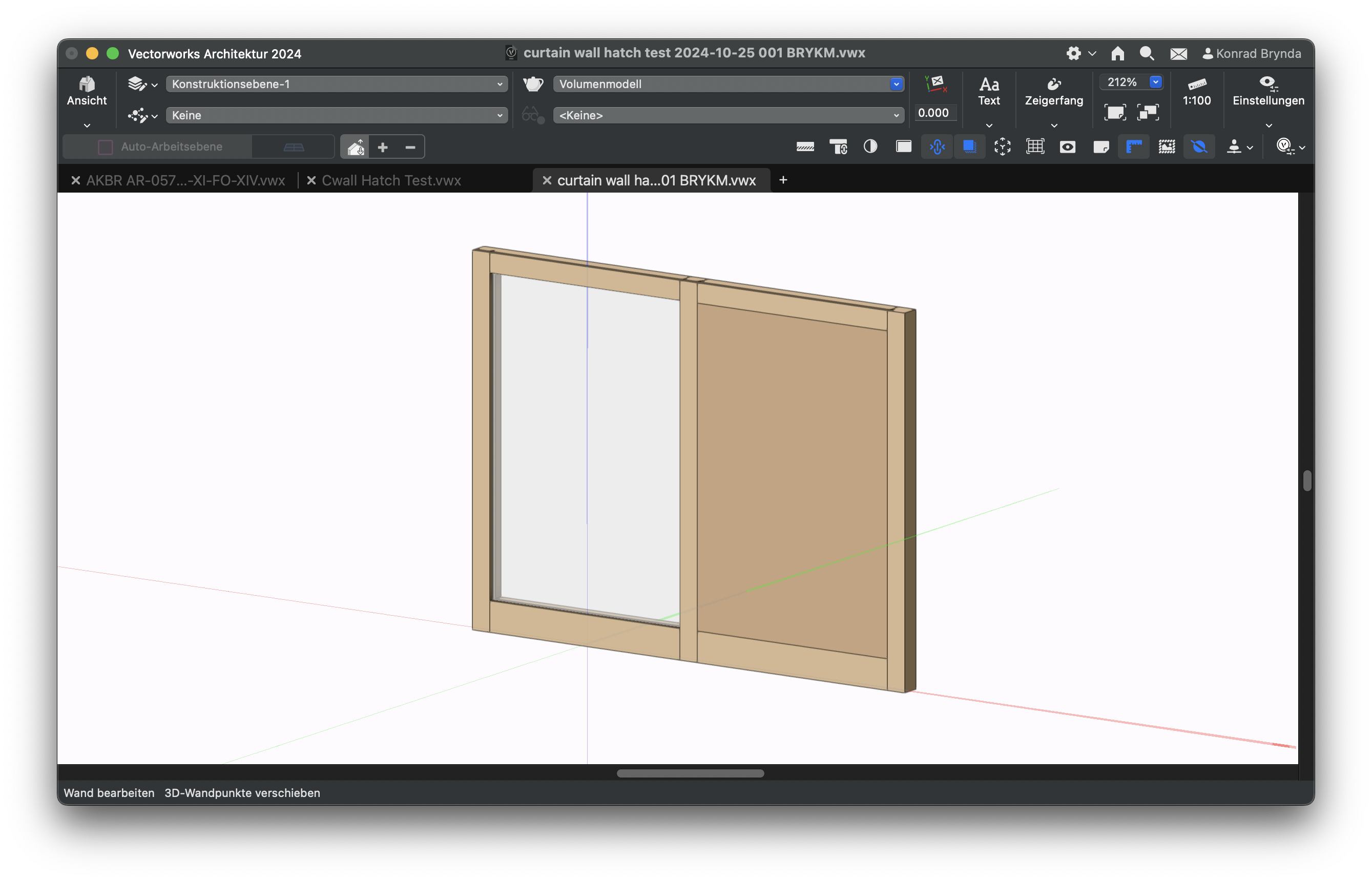

2. Shaded render mode after deleting the curtain wall and undoing.

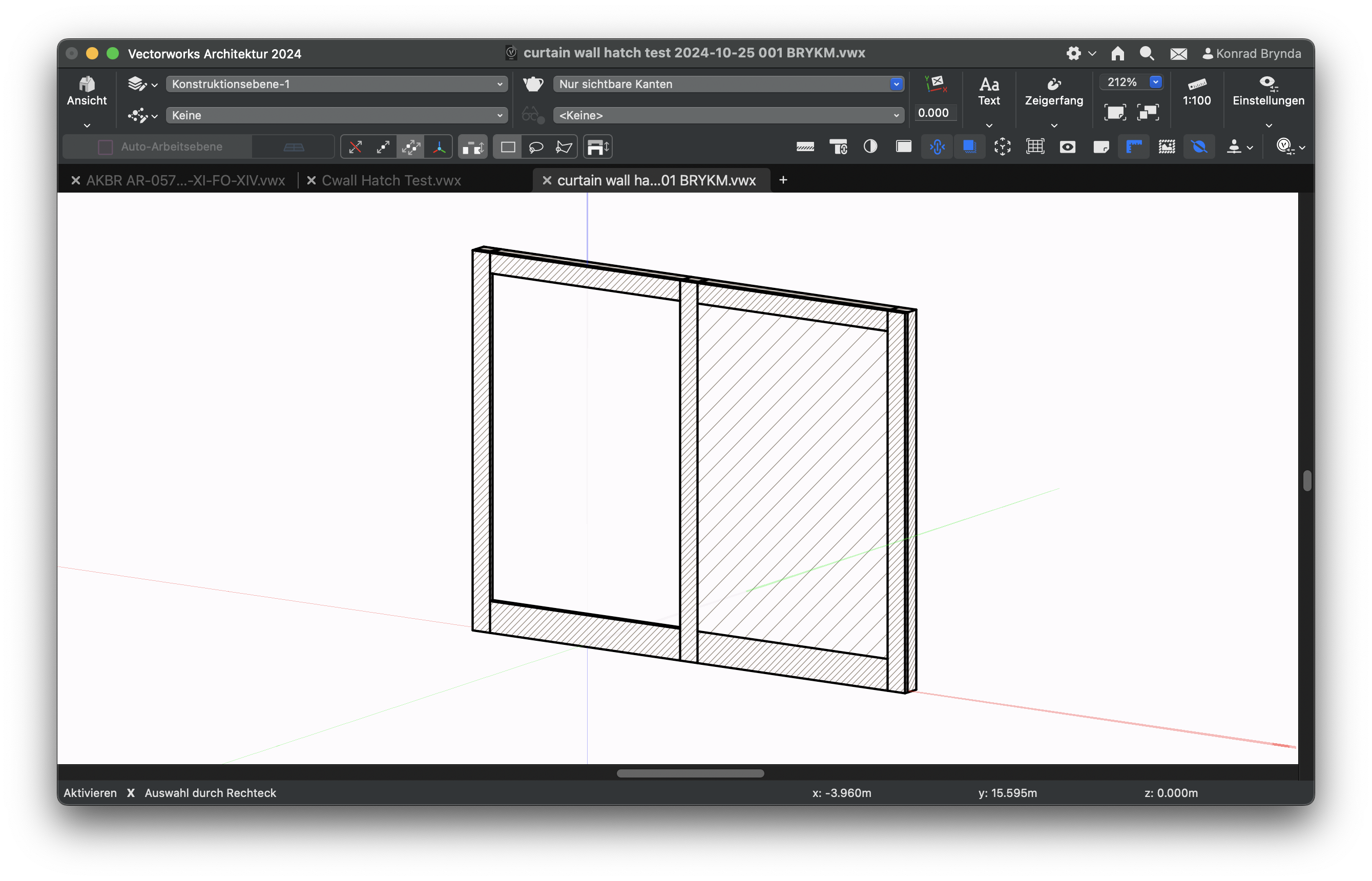

3. Hidden line render mode.

curtain wall hatch test 2024-10-25 001 BRYKM.vwx
