Associating Levels, Layers, and Stories...

[rudybeuc@gmail.com]

Having issues working with layers, levels and stories.



Even though I've associated layers with stories in the layers tab of the Organization palate, I can't get then to be recognized in the levels part of the stories tab. I don't know what's going on, been flipping through help files spinning my wheels with this for way too long, and am fed up.



What am I missing?



Thanks,

Rudy Beuc

[fabrica]

on the relevant story - click edit in bottom of menu - and add the relevant levels to the storey (minimum should be a finished floor level)

[rudybeuc@gmail.com]

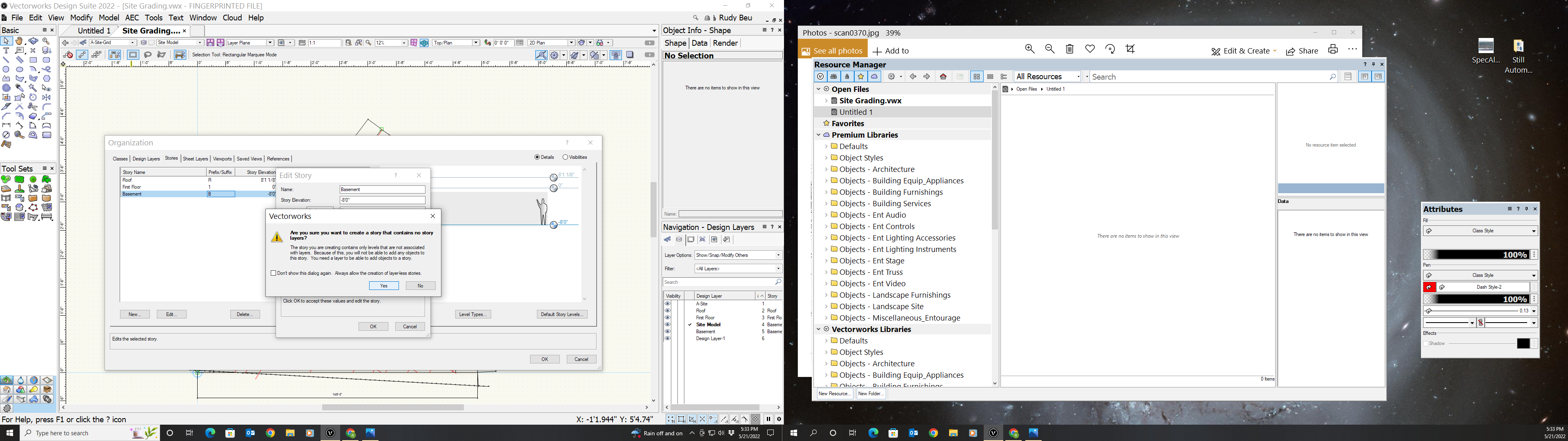

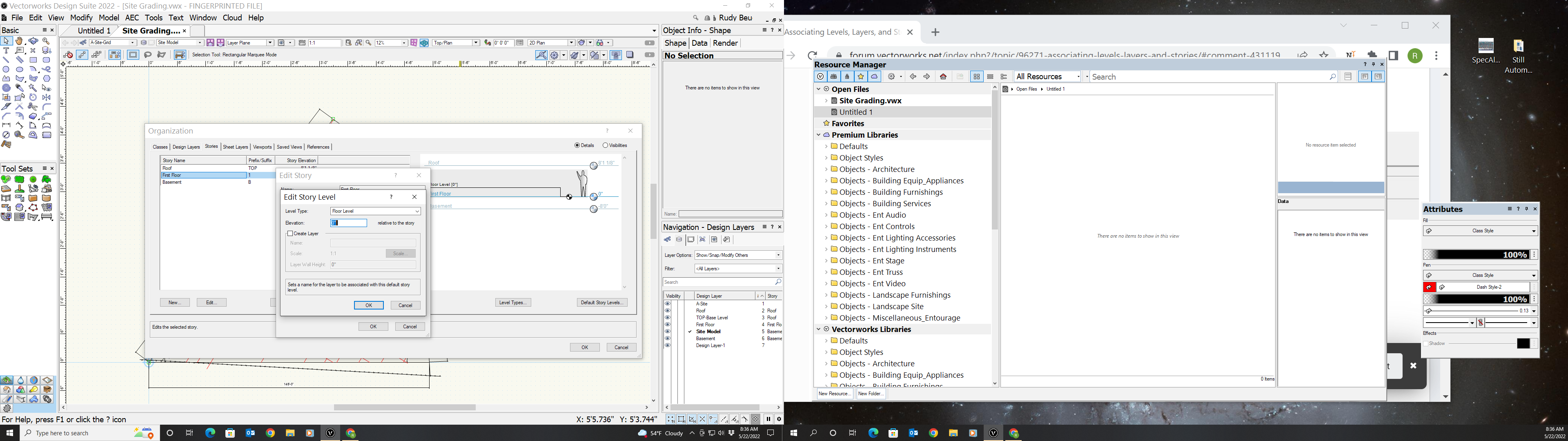

Yes, thankyou. However it seems the only way I can associate a layer with that level is to create a new layer within the level dialogue box.



I was trying to associate previous existing layers with those levels.



It appears I just can't do that.



Thanks,

Rudy Beuc

[zoomer]

2 hours ago, rudybeuc@gmail.com said:

I was trying to associate previous existing layers with those levels.



It appears I just can't do that.





Hmmh, I did that all the time.

I always create my Layers manually in Navigation Palette and or edit them

in Organization Palette Layer Edit and assign Stories to them later.

I did the same for existing or imported Layers.





You just have to care about the Layer Height when assigning a Story.

Instead of just using Story's height after - VW does some math and

adds or subtract the Story height from the previous Layer height.

So you have to delete a potential offset in Z manually after assigning

a Story to a Layer.

Edited May 22, 2022 by zoomer

[Christiaan]

6 hours ago, rudybeuc@gmail.com said:

However it seems the only way I can associate a layer with that level is to create a new layer within the level dialogue box.



I was trying to associate previous existing layers with those levels.



It appears I just can't do that.

To associate an existing Design Layer with a Storey or Level you need to do that in the Design Layers tab of the Organization window, not the Stories tab.

[rudybeuc@gmail.com]

3 hours ago, Christiaan said:

To associate an existing Design Layer with a Storey or Level you need to do that in the Design Layers tab of the Organization window, not the Stories tab.

Yeah I was able to do the association in the design layers tab, but the resulting associations did not appear in the stories & levels tab.


Were you able to achieve this?



Thanks,

Rudy Beuc

[rudybeuc@gmail.com]

#$%@#$%....



Now I see it, the Levels Column next to the Stories Column in the Design Layers Tab. Hadn't notices that before...



I was running around in circles trying to figure out how to manipulate those assignments within the stories tab and it's nice graphical UI.



Thanks,

Rudy Beuc



[Christiaan]

Ha, I remember discovering it much the same way. Glad you sorted it.
