Joining pipes


Recommended Posts

Hi could someone tell me the best way to get from this to this?:

1482042828_Screenshot2021-01-13at21_04_34.thumb.png.d5115e163434f08f85fbcac9133ac13e.png111809623_Screenshot2021-01-13at21_22_08.thumb.png.2d2b0a9283e3f5673864043dac82ca0f.png

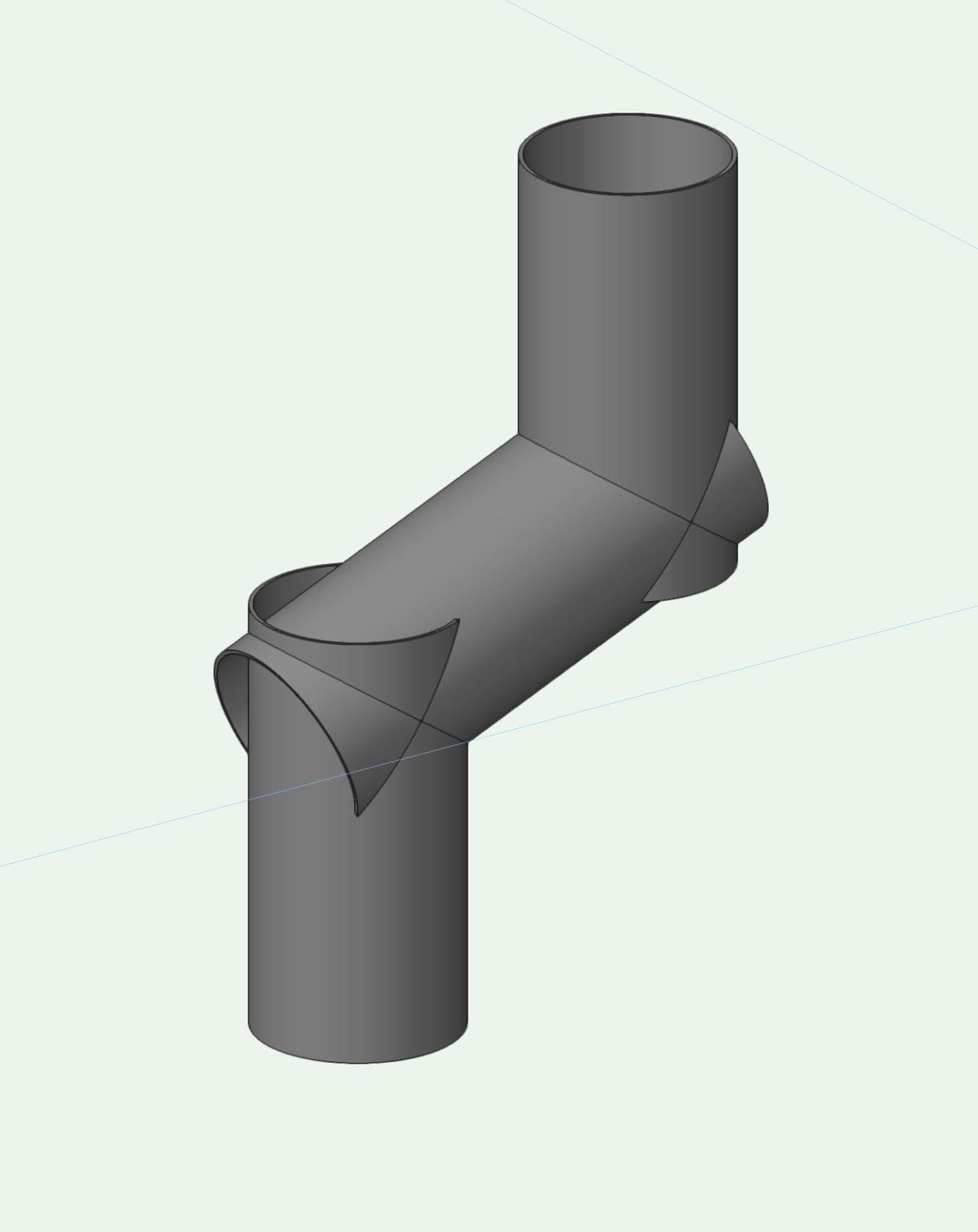

I ended up extruding the pipes so they overlapped, using the analysis tool, putting in a working plane, drawing a rectangle + extruding it then running subtract solid to trim each pipe end in turn:

1215080684_Screenshot2021-01-13at21_06_11.thumb.png.af939bee238bc34e7a9844a66b8874da.png1031824452_Screenshot2021-01-13at21_16_51.thumb.png.987dafedb9a4f0cdda1d77a7a058b68f.png

This was fine but rather long-winded + I'm sure there's a much cleverer way to do it, I just couldn't find it!

Thanks

Link to comment

Hi Pat thanks that was the first thing I thought but I couldn't get the tools to snap on the line where the two pipes intersected...

However I've had another go + if I use the analysis tool to generate a disc where the two pipes intersect then in orthogonal view I can snap onto this with the trim tool + cut the mitres on the pipes. This feels a much better method than how I did it before

  • Like 1
Link to comment

Thanks @Hans-Olav I think you're right.



However I also realised that if I did want to work with the 3D tubes rather than extrude a profile the easiest way is just to trim the tube ends to the correct angle separately (using trim tool in orthogonal view + setting the angle in the floating data pane) then drag them together



Not sure why I made such a meal of it thank you!



43081241_Screenshot2021-01-14at08_59_11.thumb.png.21711f3f2c02b7748d65d4d64fd3544c.png



Having said that it was good to play with the analysis tool

  • Like 1
Link to comment
7 minutes ago, Tom W. said:

Having said that it was good to play with the analysis tool

The analysis tool is one of those rather dry tools that hardly ever gets a mention. I find it really helpful for doing exactly what you have just used it for.

Link to comment

@markdd I'd never even heard of it until you mentioned it fairly recently in a post to someone! I had to go look for it!

This forum is a treasure trove of useful info so many thanks to people like yourself for taking the time to share your knowledge + experience 👍

Link to comment
