Arrow on railing in 2d plan



5 answers to this question

Recommended Posts

  • 0

Kit, I have the same issue with arrowheads showing up on a custom railing/fence. Were you able to get this resolved and how?

In my attributes bar, the arrow head style is greyed out, so there's not even a change to modify the end of the lines.


The rail is a simple existing guard that is being demolished during construction, but rather than just drawings 2d line work to represent the guard, I prefer to have it in 3d so that is shows up in my sections.  The arrowheads only show up in plan view.

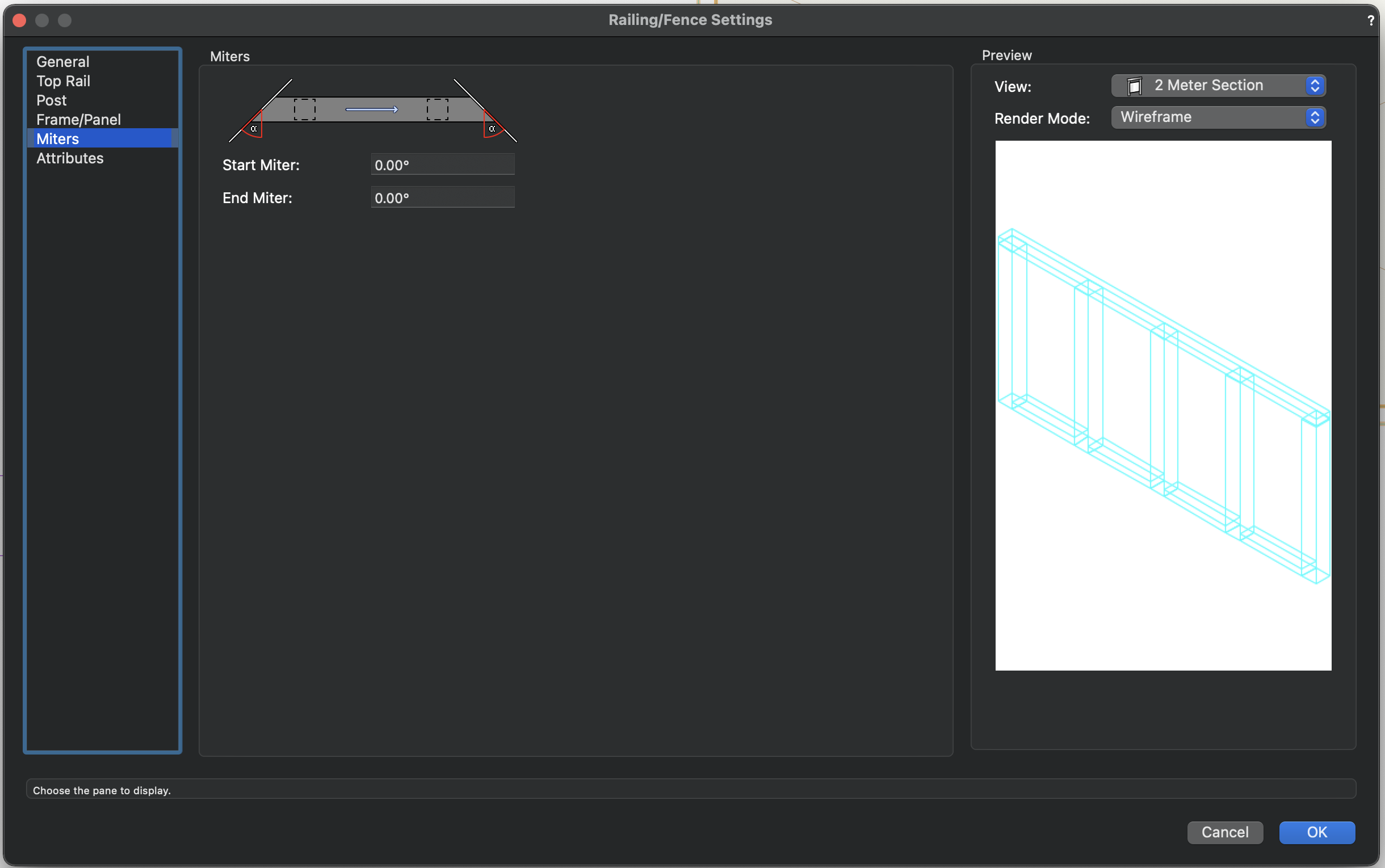

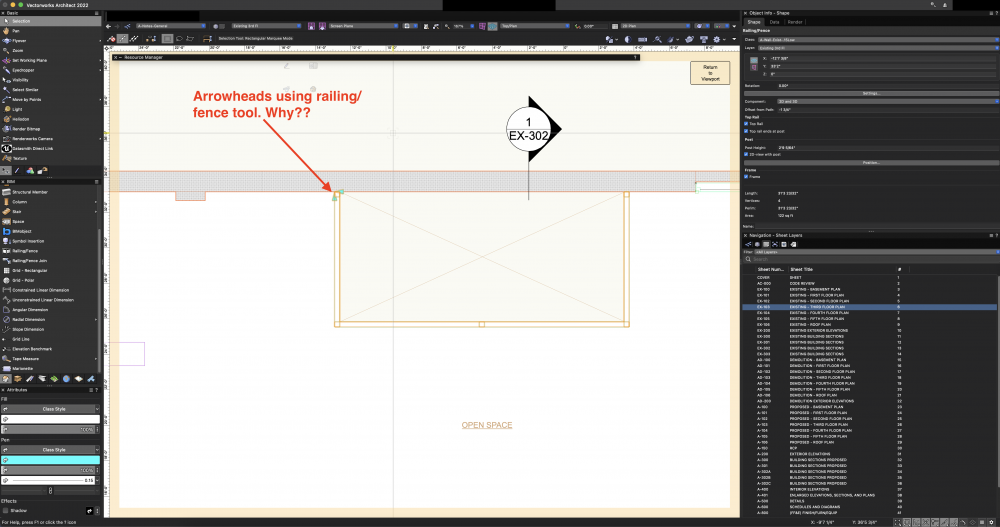

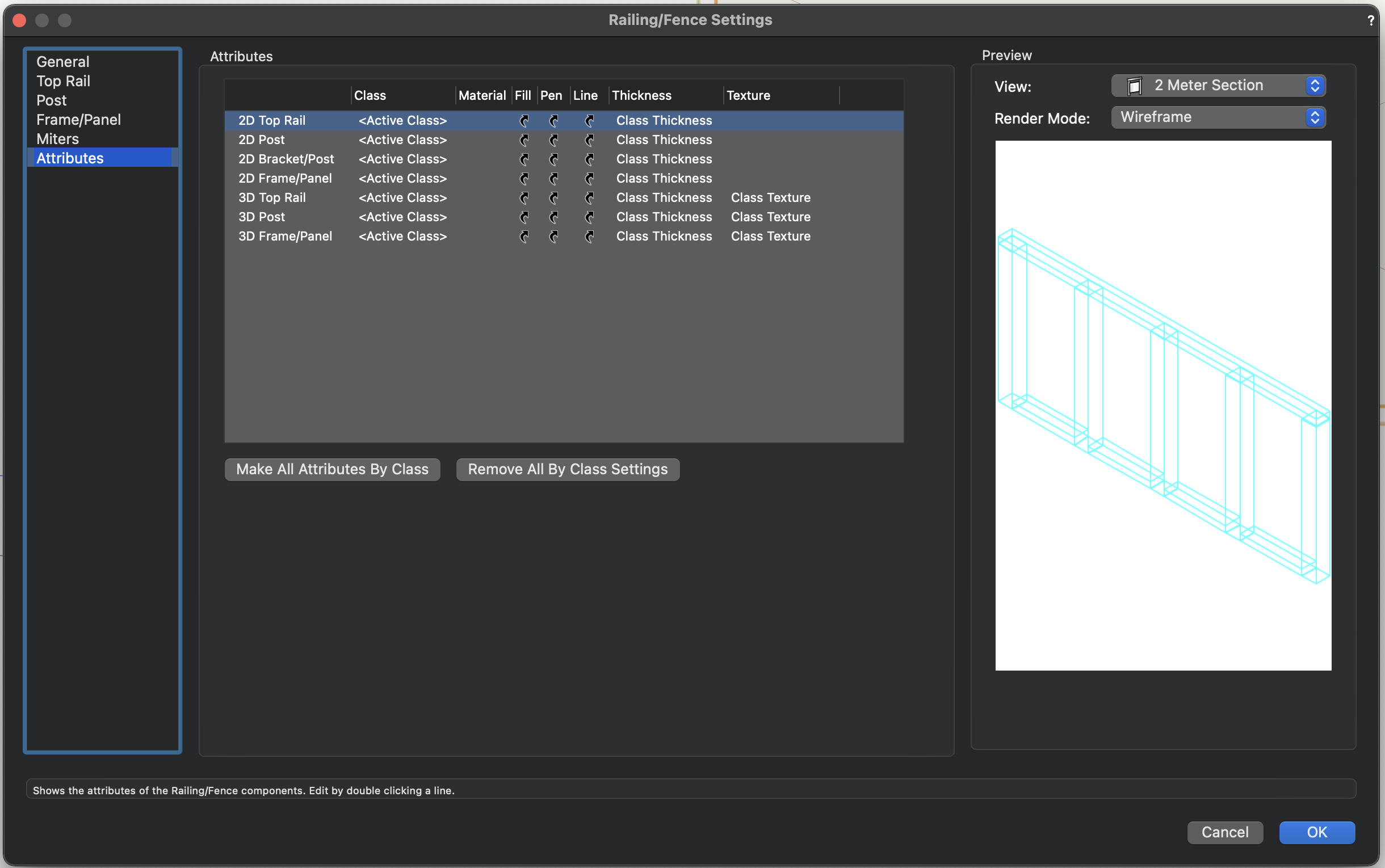

I included screenshots of the plan view, as well as the settings for this custom rail if this helps explain



Screen Shot 2022-01-11 at 10.39.05 AM.png

Screen Shot 2022-01-11 at 10.43.32 AM.png

Screen Shot 2022-01-11 at 10.43.44 AM.png

Screen Shot 2022-01-11 at 10.43.52 AM.png

Screen Shot 2022-01-11 at 10.44.00 AM.png

Screen Shot 2022-01-11 at 10.44.07 AM.png

Screen Shot 2022-01-11 at 10.44.15 AM.png
