Get fill color of a class on a worksheet?

Recommended Posts

I have a script that returns a list of the classes in a document.  Is there a way to show the fill color of that class in the worksheet?

  • Like 1

Share this post


Link to post

The following script is a kind of complicated version but I think it does what you want.



In addition to setting the cell with the class name to the Class FillFore, FillBack colors and FillPattern, it also has some interesting functionality at the bottom.  If you change any of the yellow cells in Column 1 to be non-blank, then the database at the bottom will open to display a list of all the objects in that class.



Ask if you need more help.



Procedure Classes_to_Worksheet;
{Make a worksheet listing all of the classes in a VW file}
{Lists both used and unused classes}
{The worksheet is named "Classes:"with and appended date}

{January 26, 2017}
{Added code to display the Class Fill color in the ClassName column for the Class}

{April 10, 2015}
{Updated for formatting and to add database integration}
{Set any of the yellow cells in column 1 to non-blank and the related}
{database row at the bottom of the worksheet will show subrows for each item in that class}
{Set the yellow cell back to blank (select, delete, enter/return, and the database subrows}
{will disapper.  The database rows show the Class, Layer and Object type for the related object}

{October 13, 2010}
{Updated to sort classes in alphabetical order prior to storing in worksheet}
{As of VW2011, there is not way to get the display order of the classes in the Nav Palette}
{October 14, 2008}
{© 2017, 2010, 2008, Coviana, Inc - Pat Stanford pat@coviana.com}
{Licensed under the GNU Lesser General Public License}

var	 H1, H2:	Handle;
N1:	LongInt;
ClassSort : Array[1..1024] of string;
Formula : String;
Result : Boolean;
Font,Size,Style:Integer;
R1,G1,B1,BGColor,FGColor: LongInt;
FillPattern: Integer;

Begin
SetCursor(WatchC);

H1:=CreateWS(Concat('Classes:',date(2,1)),(Classnum+2)*2,4);
SetWSCellAlignment(H1,1,1,ClassNum+2,2,5);
SetWSColumnWidth(H1,1,1,20);
SetWSColumnWidth(H1,2,2,200);
SetWSColumnWidth(H1,3,3,200);
SetWSColumnWidth(H1,4,4,200);

Result := WorksheetMergeCells(H1,1,1,1,3);

GetWSCellTextFormat(H1,1,1,Font,Size,Style);

SetWSCellTextFormat(H1,1,1,(ClassNum+2)*2,4,Font,14,Style);
SetWSCellTextFormat(H1,1,1,1,1,Font,18,1);
SetWSCellTextFormat(H1,2,1,2,4,Font,14,1);
SetWSCellTextFormat(H1,Classnum+4,1,ClassNum+4,4,Font,14,1);

SetWSCellBorders(H1,3,1,ClassNum+2,3,True,True,True,True,7);
SetWSCellOutlineBorder(H1,3,1,ClassNum+2,3,2,25,1);
SetWSCellBorders(H1,Classnum+5,1,(ClassNum+2)*2,4,True,True,True,True,7);
SetWSCellOutlineBorder(H1,Classnum+5,1,(ClassNum+2)*2,4,2,25,1);

SetWSCellFill(H1,3,1,ClassNum+2,1,1,5,0,1);
SetWSCellFill(H1,ClassNum+5,1,(ClassNum+2)*2,1,1,1,0,1);


For N1:= 1 to Classnum do ClassSort[N1]:=ClassList(N1);

SortArray(ClassSort,ClassNum,1);

For N1:= 1 to Classnum do
	Begin

{*****************************}
{Code in this block is used to set the WS Cell Format to match the Class Fill Color and Pattern}
		GetClFillFore(ClassSort[N1],R1,G1,B1);
		RGBToColorIndex(R1,G1,B1,FGColor);
		GetClFillBack(ClassSort[N1],R1,G1,B1);
		RGBToColorIndex(R1,G1,B1,BGColor);
		FillPattern:=GetClFPat(ClassSort[N1]);
		SetWSCellFill(H1,N1+2,2,N1+2,2,1,BGColor,FGColor,FillPattern);

{This code can be deleted or commented out without effecting other script functionality}
{*****************************}

		SetWSCellNumberFormat(H1,N1+2,2,N1+2,2,13,0,'','');
		SetWSCellFormula(H1,N1+2,2,N1+2,2,Concat(ClassSort[N1]));

		Formula:=Concat('=Count(C=',CHR(39),Classsort[N1],CHR(39),')');

		SetWSCellFormula(H1,N1+2,3,N1+2,3,Formula);

		Formula:=Concat('=Database(C=IF(A',Num2Str(0,N1+2),'<>',CHR(39),CHR(39),', B',Num2Str(0,N1+2),',',CHR(39),'PTS!@#$%^&',CHR(39),'))');

		SetWSCellFormula(H1,ClassNum+4,2,ClassNum+4,2,'Class');
		SetWSCellFormula(H1,ClassNum+4,3,ClassNum+4,3,'Layer');
		SetWSCellFormula(H1,ClassNum+4,4,ClassNum+4,4,'Object Type');

		SetWSCellFormula(H1,N1+ClassNum+4,0,N1+ClassNum+4,0,Formula);
		SetWSCellFormula(H1,N1+ClassNum+4,2,N1+ClassNum+4,2,'=C');
		SetWSCellFormula(H1,N1+ClassNum+4,3,N1+ClassNum+4,3,'=L');
		SetWSCellFormula(H1,N1+ClassNum+4,4,N1+ClassNum+4,4,'=T');


	End;

SetWSCellFormula(H1,1,1,1,1,Concat('Classes in File:',date(2,1)));
SetWSCellFormula(H1,2,2,2,2,'Class Name');
SetWSCellFormula(H1,2,3,2,3,'# of Objects in Class');

RecalculateWS(H1);
SetCursor(ArrowC);

ClrMessage;
ShowWS(H1,True);
End;
Run(Classes_to_Worksheet);



Share this post


Link to post

Hello



I try to use this script. But when I selected the script and click in my drawing, I always get the message "comma expected"

When there are 2 classes and I click twice on OK I get the sheet with the tings I need. But when there hundred of classes than I have to click as many times as there are

classes. I think I don't use it on the right way. Mayby you can give me a tip how to work with it



Thanks

Pascal

Share this post


Link to post

Hi Pascal,



VW2019 broke the script. I will try and find some time to fix it.



There are deprecated (no longer supported) vectorscript procedures in the script and the changes to the Worksheets in 2019 also seem to be a problem.



The script runs great in VW2017 though 😉



Share this post


Link to post

I don't use the script in 2019 but in 2018. And there is get the message comma expected for every class in the document.

Pascal

Share this post


Link to post

Hi Pascal,



VW2019 broke the script. I will try and find some time to fix it.



There are deprecated (no longer supported) vectorscript procedures in the script and the changes to the Worksheets in 2019 also seem to be a problem.



The script runs great in VW2017 though 😉



Share this post


Link to post

@tismacfan2



I thought I had sen the above reply a month ago.  😞



Here is a version of the script that seems to work in VW2019.



Other changes are that the toggle cells to select the classes to show objects from are now formatted as Text so any entry will display the details. Also, the Database Headers are now turned off.



Procedure Classes_to_Worksheet;
{Make a worksheet listing all of the classes in a VW file}
{Lists both used and unused classes}
{The worksheet is named "Classes:"with and appended date}

{April 12, 2019}
{Modified to work around obsolete VS functions for formatting Worksheets}
{Yellow check mark cells to select classes to detail are now formatted as text so data will execute.}
{Datbase Headers are now turned off this can be changed in the SetObjectVariable Boolean (82) line.}

{January 26, 2017}
{Added code to display the Class Fill color in the ClassName column for the Class}

{April 10, 2015}
{Updated for formatting and to add database integration}
{Set any of the yellow cells in column 1 to non-blank and the related}
{database row at the bottom of the worksheet will show subrows for each item in that class}
{Set the yellow cell back to blank (select, delete, enter/return, and the database subrows}
{will disapper.  The database rows show the Class, Layer and Object type for the related object}

{October 13, 2010}
{Updated to sort classes in alphabetical order prior to storing in worksheet}
{As of VW2011, there is not way to get the display order of the classes in the Nav Palette}
{October 14, 2008}
{© 2019, 2017, 2010, 2008, Coviana, Inc - Pat Stanford pat@coviana.com}
{Licensed under the GNU Lesser General Public License}

var	 H1, H2:	Handle;
N1:	LongInt;
ClassSort : Array[1..1024] of string;
Formula : String;
Result : Boolean;
Font,Size,Style:Integer;
R1,G1,B1,BGColor,FGColor: LongInt;
FillPattern: Integer;

Begin
SetCursor(WatchC);

H1:=CreateWS(Concat('Classes:',date(2,1)),(Classnum+2)*2,4);
SetWSCellAlignment(H1,1,1,ClassNum+2,2,5);
SetWSColumnWidth(H1,1,1,20);
SetWSColumnWidth(H1,2,2,200);
SetWSColumnWidth(H1,3,3,200);
SetWSColumnWidth(H1,4,4,200);

Result := WorksheetMergeCells(H1,1,1,1,3);

GetWSCellTextFormat(H1,1,1,Font,Size,Style);

SetWSCellTextFormat(H1,1,1,(ClassNum+2)*2,4,Font,14,Style);
SetWSCellTextFormat(H1,1,1,1,1,Font,18,1);
SetWSCellTextFormat(H1,2,1,2,4,Font,14,1);
SetWSCellTextFormat(H1,Classnum+4,1,ClassNum+4,4,Font,14,1);

SetWSCellBorders(H1,3,1,ClassNum+2,3,True,True,True,True,7);
{SetWSCellOutlineBorder(H1,3,1,ClassNum+2,3,2,25,1);  (*Commented out 4/12/19 Decprecated*)
}SetWSCellBorders(H1,Classnum+5,1,(ClassNum+2)*2,4,True,True,True,True,7);
{SetWSCellOutlineBorder(H1,Classnum+5,1,(ClassNum+2)*2,4,2,25,1);	(*Commented out 4/12/19 Decprecated*)
}
SetWSCellFill(H1,3,1,ClassNum+2,1,1,5,0,1);
SetWSCellFill(H1,ClassNum+5,1,(ClassNum+2)*2,1,1,1,0,1);


For N1:= 1 to Classnum do ClassSort[N1]:=ClassList(N1);

SortArray(ClassSort,ClassNum,1);

For N1:= 1 to Classnum do
	Begin

{*****************************}
{Code in this block is used to set the WS Cell Format to match the Class Fill Color and Pattern}
		GetClFillFore(ClassSort[N1],R1,G1,B1);
		RGBToColorIndex(R1,G1,B1,FGColor);
		GetClFillBack(ClassSort[N1],R1,G1,B1);
		RGBToColorIndex(R1,G1,B1,BGColor);
		FillPattern:=GetClFPat(ClassSort[N1]);
		SetWSCellFill(H1,N1+2,2,N1+2,2,1,BGColor,FGColor,FillPattern);
		SetWSCellNumberFormat(H1,N1+2,1,N1+2,1,13,0,'','');  {Added 4/12/2019 Format cells as text}


{This code can be deleted or commented out without effecting other script functionality}
{*****************************}

		SetWSCellNumberFormat(H1,N1+2,2,N1+2,2,13,0,'','');
		SetWSCellFormula(H1,N1+2,2,N1+2,2,Concat(ClassSort[N1]));

		Formula:=Concat('=Count(C=',CHR(39),Classsort[N1],CHR(39),')');

		SetWSCellFormula(H1,N1+2,3,N1+2,3,Formula);

		Formula:=Concat('=Database(C=(IF(A',Num2Str(0,N1+2),'<>',CHR(39),CHR(39),
				', B',Num2Str(0,N1+2),',',CHR(39),'PTS!@#$%^&',CHR(39),')))');

		SetWSCellFormula(H1,ClassNum+4,2,ClassNum+4,2,'Class');
		SetWSCellFormula(H1,ClassNum+4,3,ClassNum+4,3,'Layer');
		SetWSCellFormula(H1,ClassNum+4,4,ClassNum+4,4,'Object Type');

		SetWSCellFormula(H1,N1+ClassNum+4,0,N1+ClassNum+4,0,Formula);
		SetWSCellFormula(H1,N1+ClassNum+4,2,N1+ClassNum+4,2,'=C');
		SetWSCellFormula(H1,N1+ClassNum+4,3,N1+ClassNum+4,3,'=L');
		SetWSCellFormula(H1,N1+ClassNum+4,4,N1+ClassNum+4,4,'=T');
		SetWSCellNumberFormat(H1,N1+2,2,N1+2,2,13,0,'','');  {Added 4/12/2019 Format cells as text}


	End;

SetWSCellFormula(H1,1,1,1,1,Concat('Classes in File:',date(2,1)));
SetWSCellFormula(H1,2,2,2,2,'Class Name');
SetWSCellFormula(H1,2,3,2,3,'# of Objects in Class');


RecalculateWS(H1);
SetCursor(ArrowC);

ClrMessage;
ShowWS(H1,True);
SetObjectVariableBoolean(H1,82,False);	{Added 4/12/19 to hide database header rows.}
End;

Run(Classes_to_Worksheet);



Share this post


Link to post

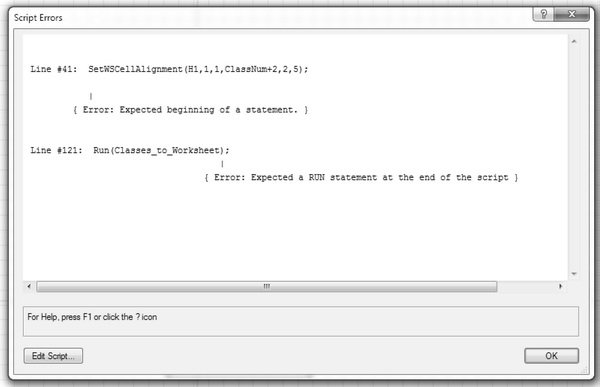

What version of VW are you using? This script has been tested in VW2019.



Did you copy everything in the script block (from the original Procedure to after the final semicolon after the Run(Classes_to_Worksheet);)?



I just copied from above and pasted into a new script in a new file created from the Architect Imperial template and it runs fine for me.



Let's see if we can figure this out.

Share this post


Link to post
2 hours ago, Pat Stanford said:

What version of VW are you using? This script has been tested in VW2019.



Did you copy everything in the script block (from the original Procedure to after the final semicolon after the Run(Classes_to_Worksheet);)?



I just copied from above and pasted into a new script in a new file created from the Architect Imperial template and it runs fine for me.



Let's see if we can figure this out.



Sir Stanford,

I´ve sent you an email, please check.

Share this post


Link to post

Hello



I get the same problem, I run the script in vw 2018 but everytime I used it I get the message need a comma. But how do you use the script

in a menu or as a tool.



Pascal

Share this post


Link to post

Based on another email, it appears that the code is not being properly copied in some browsers. I have reformatted the code above to manually wrap the longest line.



Open your browser window to a very wide width and copy ALL of the text in the code block above.  Open a VW file. In the Resource Browser select the New Resource button at the bottom left. The Type will be Script.  It will ask for a name for the new Script Pallet and then for the new Script. Once you enter the two named the Script Editor window will open. Make sure the language is set to VectorScript and then click in the text area and Paste the script from above. Clic the Gear icon at the top right of the window to compile the code. You should get a dialog box saying "Script Complied Successfully". If not, you did not properly copy the code. Be very careful with pasting the code into a word processor such as Microsoft Word first. It often adds invisible characters that will prevent the code from compiling.



To run the script you double click on it's name in the script pallet.  You could make it into a menu command but that involved learning about the PlugIn Editor and is more complicated.



See the following post for the basics of how and why to use scripts.





Share this post


Link to post
Posted (edited)

Hi Pat Stanford,



Is better now. No error messages.

However persists a warning message "Comma expected" for every class I have on my vw file. Then the worksheet opens filled with the classes info on top.

I tested it by pasting on a script via resourse file manager and creating a .vs filetype via notepad (as cited on your previous post). For both the same result.



pleased to contribute





Edited by Picapau Amarelo

Share this post


Link to post

OK try the version in this file. I still think something is messing with your copy/paste from the forum into the script editor.



This version is just copied and pasted from above into a new VW2019 file.  Open the Resource Browser to see the Script Palette and run the script. If it does not provide the warning, them import the script into your file and see if it works properly there.



Let me know.



Classes to Worksheet.vwx

Share this post


Link to post

Persists the warning message "Comma expected" for every class I have on my vw file. Then the worksheet opens filled with the classes info on top. Second table empty info.

Both methods the same result.

Share this post


Link to post

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.




7150 Riverwood Drive, Columbia, Maryland 21046, USA   |   Contact Us:   410-290-5114



© 2018 Vectorworks, Inc. All Rights Reserved. Vectorworks, Inc. is part of the Nemetschek Group.

×
×
  • Create New...
