Kevin McAllister

Rendering Weirdness with Carriage Bolts VW2017

Question

3 answers to this question

Recommended Posts

  • 0

Yes that does appear to have some issues. What are we even looking at - is that a Sheet Layer Viewport of the plan? Or just the Top/Plan view on a design layer?

Maybe adding a wireframe screen-cap of the same view might help.

Edited by rDesign

Share this post


Link to post
  • 0

A sheet layer viewport in top view rendered with a Renderworks style background and hidden line foreground. All of the other views seems to render fine.

KM

Share this post


Link to post
  • 0

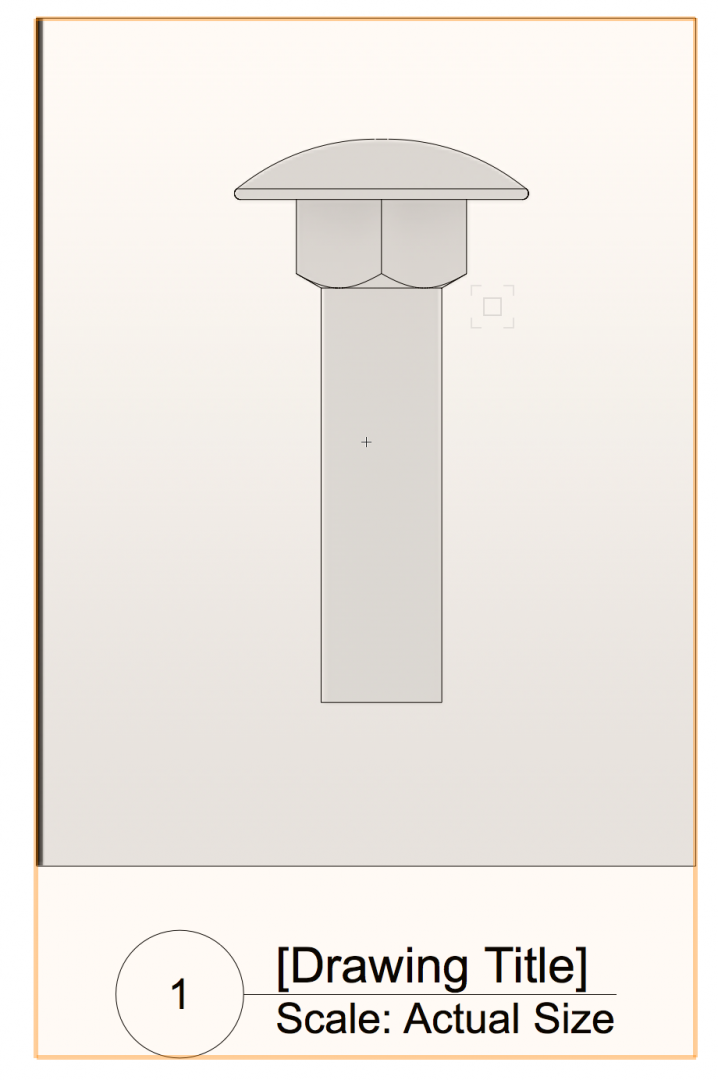

Does it happen with just a Carriage Bolt on its own? I was unable to replicate. Result and configuration of the bolt below:

Screen Shot 2016-09-19 at 10.40.12 AM.png Screen Shot 2016-09-19 at 10.41.03 AM.png

Share this post


Link to post
