Data visualization in the Graphic Legend Tool?

[DannyGucul]



Hello everyone,

I've been experimenting with data visualisation in Vectorworks Spotlight for labelling fixtures,

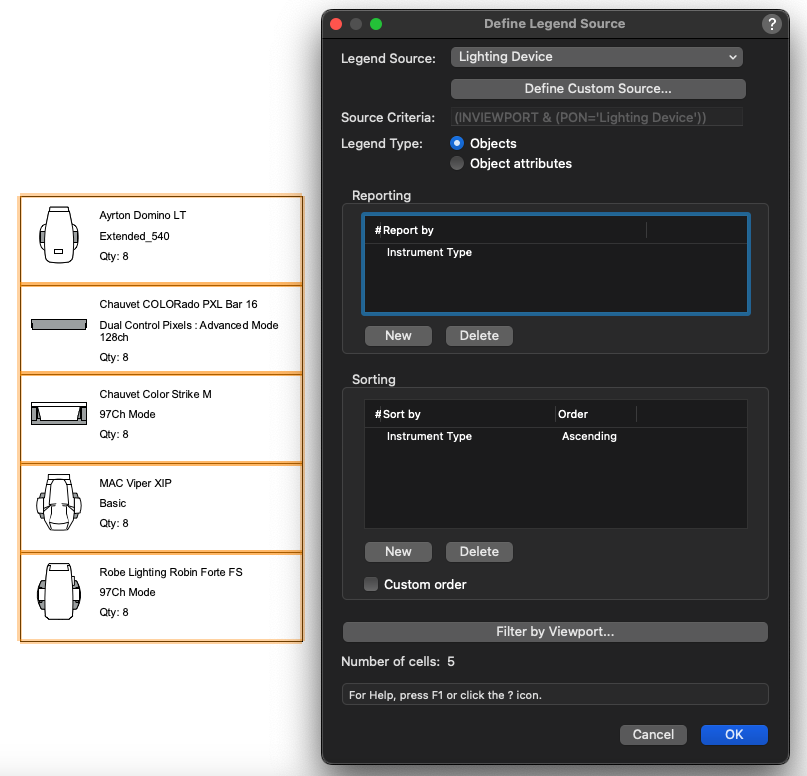

but I can't seem to work out how to link it to the graphic legend tool in sheet layers.

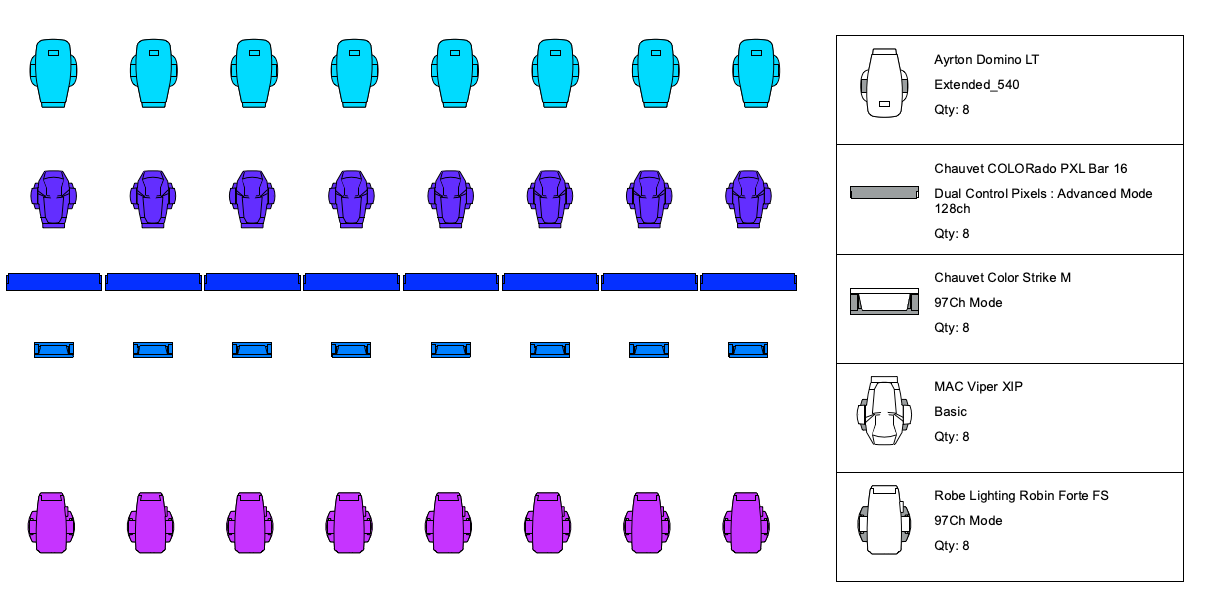

The idea was that the active data visualisation would override the attributes of a fixture symbol used in the graphic legend tool, but I haven't got any results so far.
Is it possible to define the legend source as 'active data visualisation in viewport for lighting device', or something similar? Or maybe using worksheet?



Either way, there should be an option to do it using the graphic legend tool, right?







Cheers,

Danny

[James Morris]

I have also tried to do this, and have not found a solution. Our lead drafter tells me there currently is not one. Commenting in case this gets a real answer.

[TomWhiteLight]

We have made a feature request for graphic legends to support data vis. I am not aware of any other way to do this at present.



[Michael Schroeder]

We've been asking for years

[James Morris]

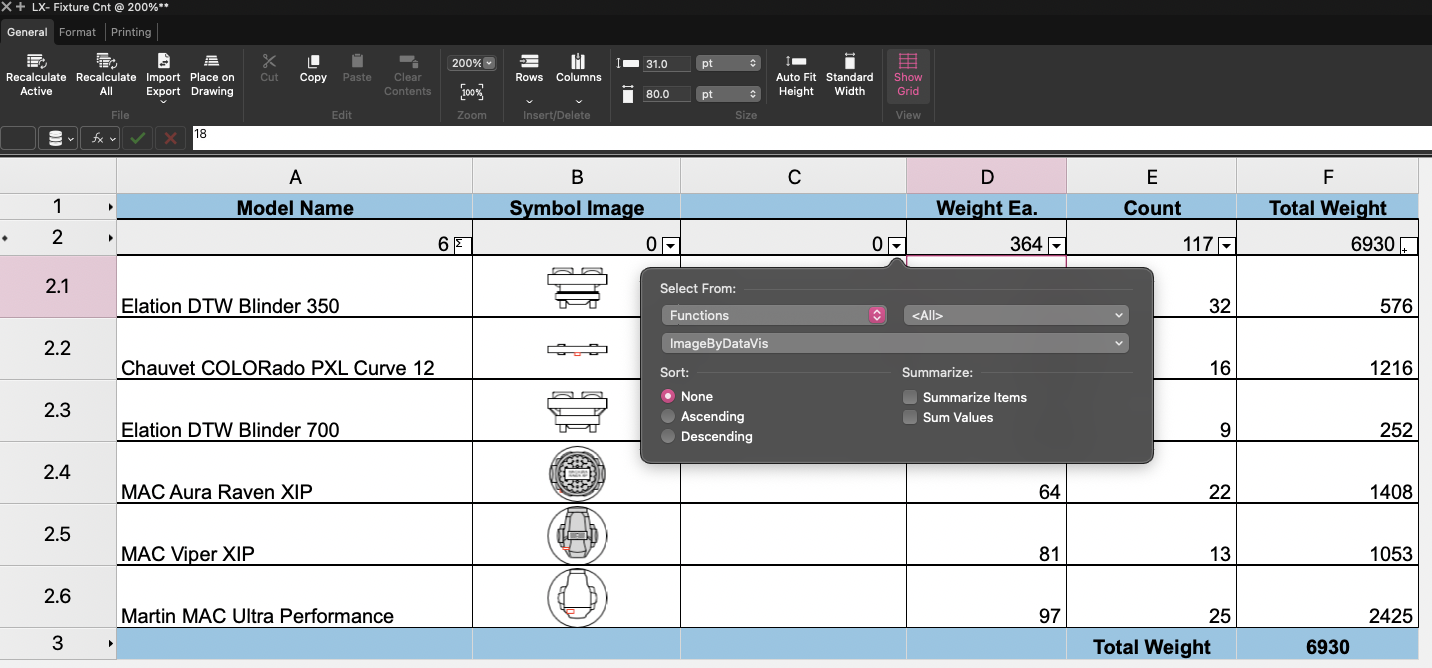

Alternative i have seen in another post that you can use ImageByDatavis function in a worksheet although i have not gotten it to work.
