tangent angle on an arc point.

KingChaos

By KingChaos
in Marionette

Recommended Posts

KingChaos

KingChaos

Posted
Posted

is there any node, to get the angle of a point on an arc?

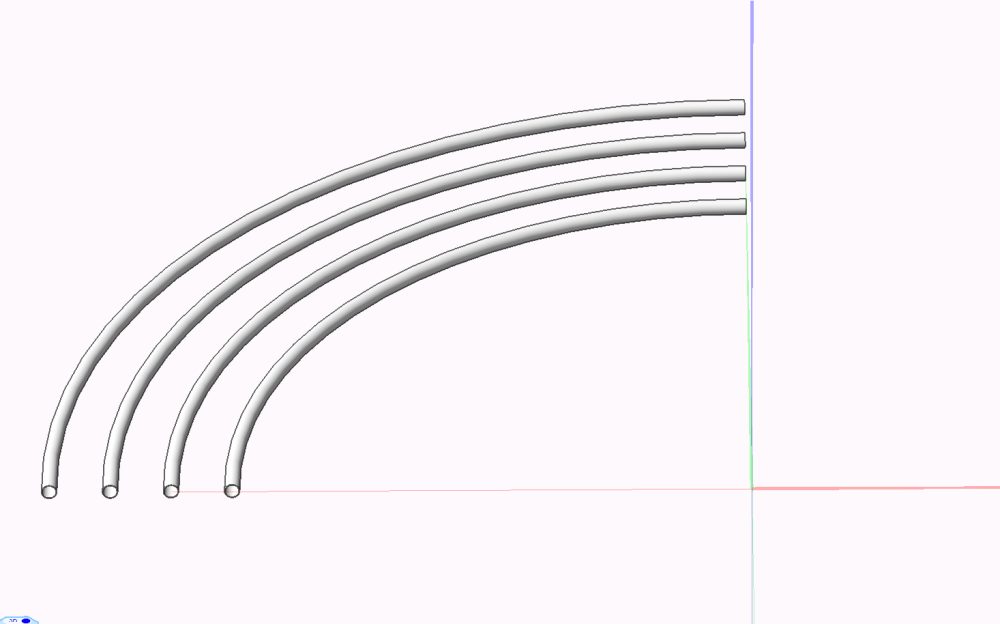

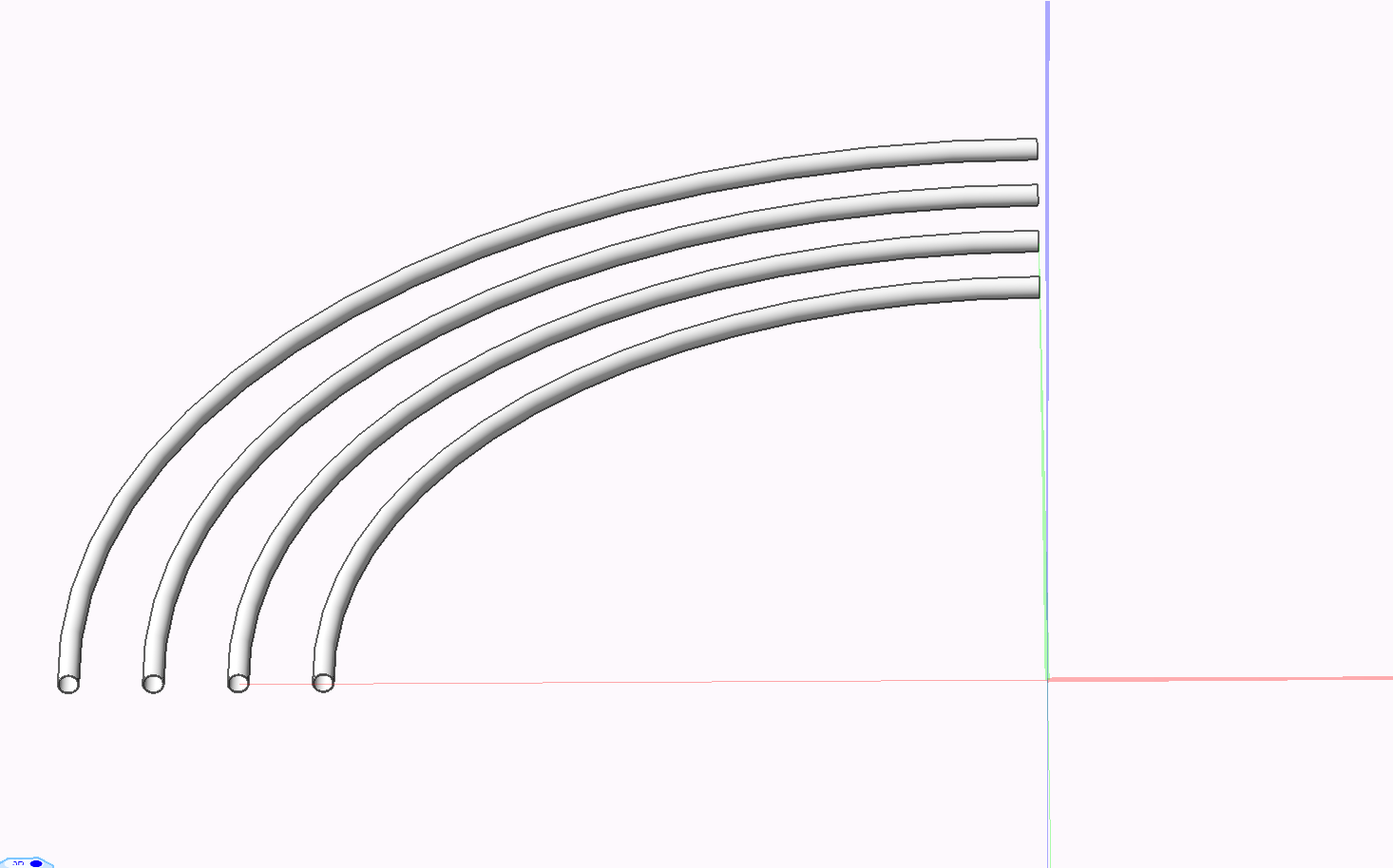

i have this geometry arcs 800+2 mm radius

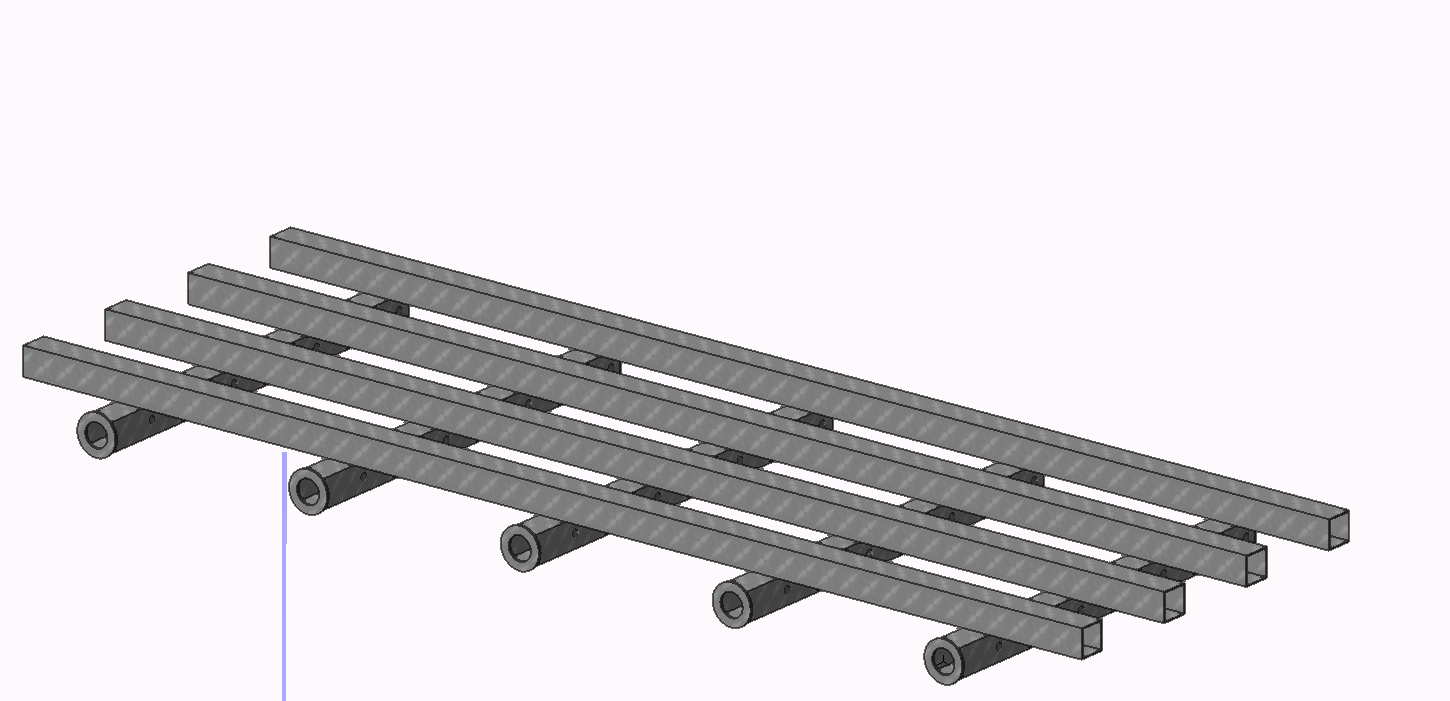

, and i want to make some consoles for holding it, like u see in this straight version




i need 2 parallel holders on this but i like to get the angle at a specific point on my arc-shaped geometry.

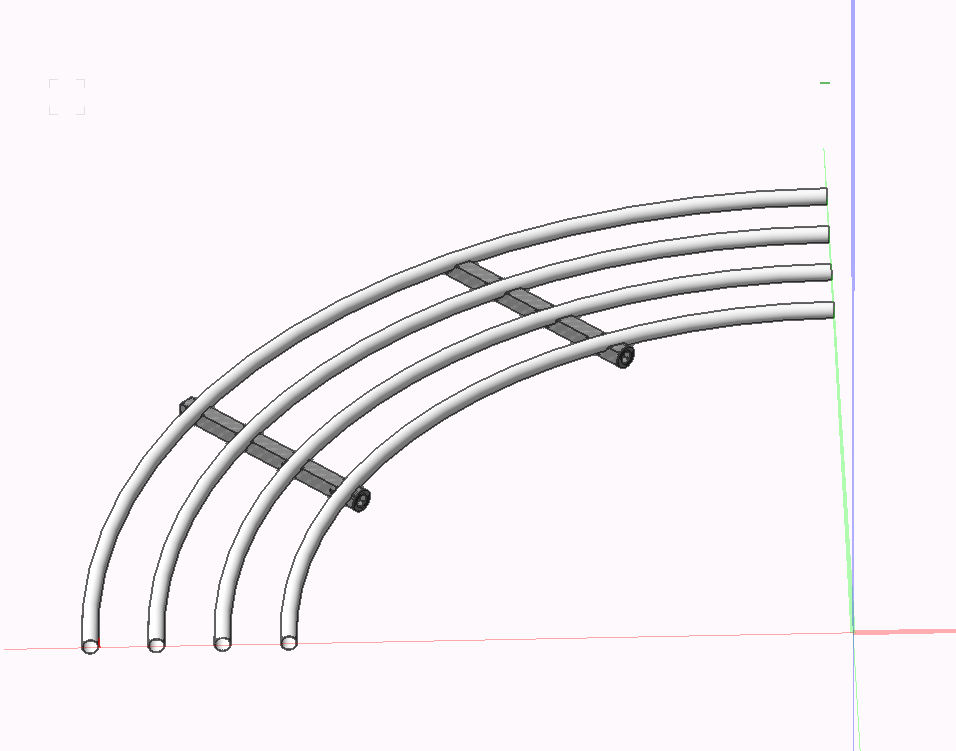

like this,






BR KC
