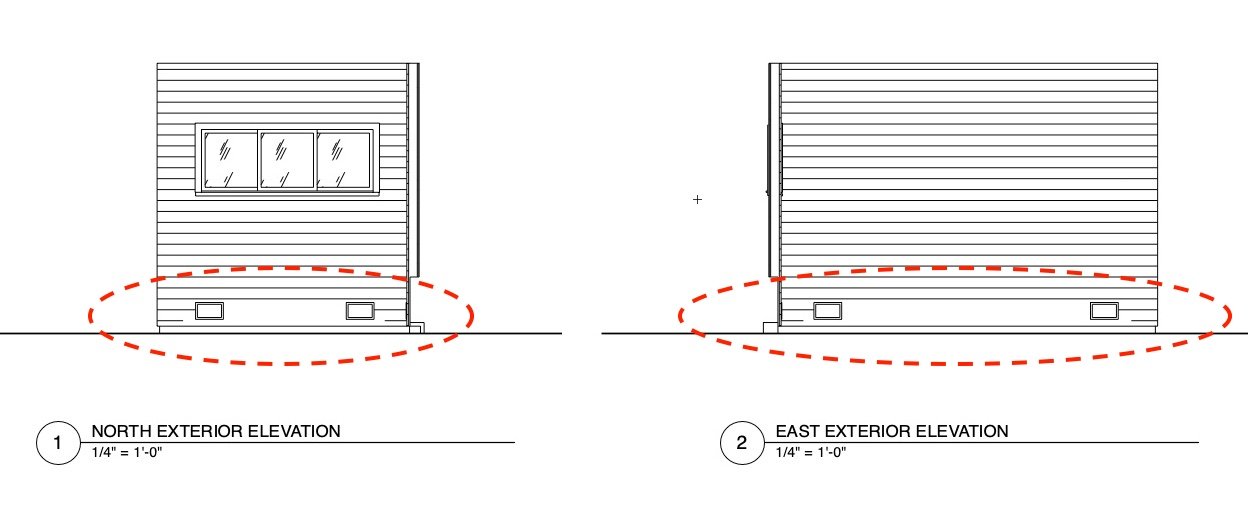

Christiaan Posted October 14 Share Posted October 14 Anyone know why I might be getting these gaps in the surface hatch? This is an elevation of a wall, with a texture that has a surface hatch. test.vwx Quote Link to comment
0 Christiaan Posted October 14 Author Share Posted October 14 Seems to be something to do with the windows/doors. Quote Link to comment
0 Vectorworks, Inc Employee Matt Panzer Posted October 15 Vectorworks, Inc Employee Share Posted October 15 Hey @Christiaan, Can you file a bug for this so we can have a closer look? 1 Quote Link to comment
0 michaelk Posted October 15 Share Posted October 15 I think I've seen this before. I think it's only in section viewports that hidden line hatches misbehave. It works as expected in regular viewports. Quote Link to comment

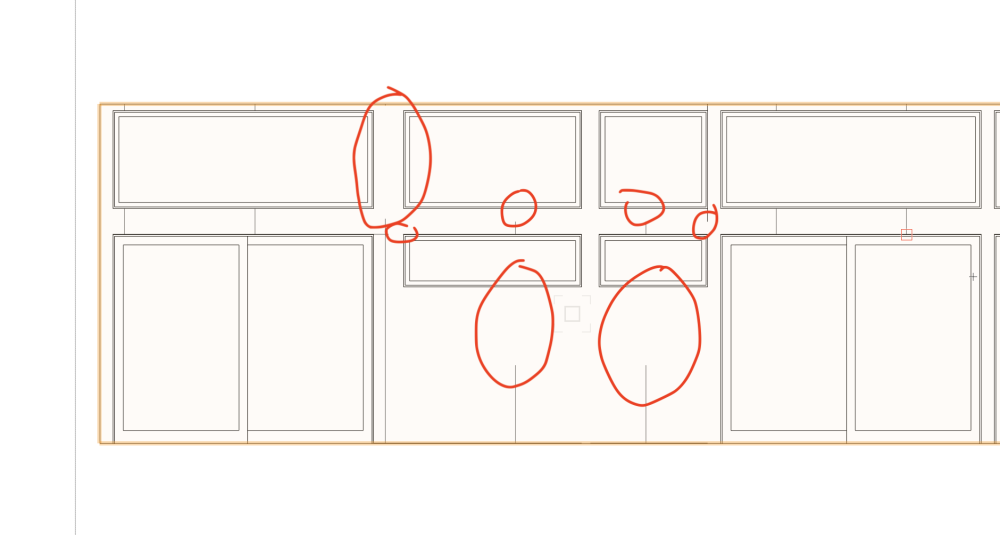

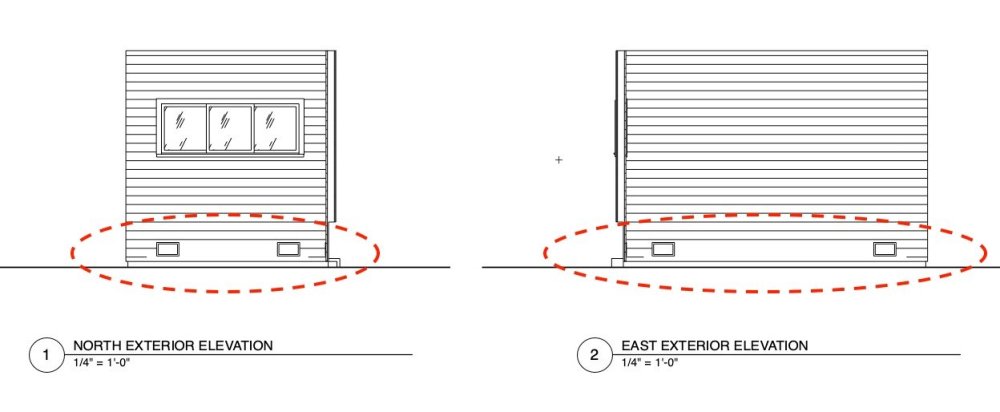

0 rDesign Posted October 16 Share Posted October 16 I have the same issue in Vw2025 when I insert symbols into a Wall, so it's not just Doors & Window PIOs. Prior to inserting the symbols, the Wall hatch was fine. After inserting the symbols, it creates gaps in the Surface Hatch on the Walls. These are Section SLVPs of a stripped down Vw2025 file (attached). wall hatch bug 2025.vwx 1 Quote Link to comment
0 Vectorworks, Inc Employee Matt Panzer Posted October 16 Vectorworks, Inc Employee Share Posted October 16 Right. The problem does look to be isolated to section viewports. 2 Quote Link to comment
