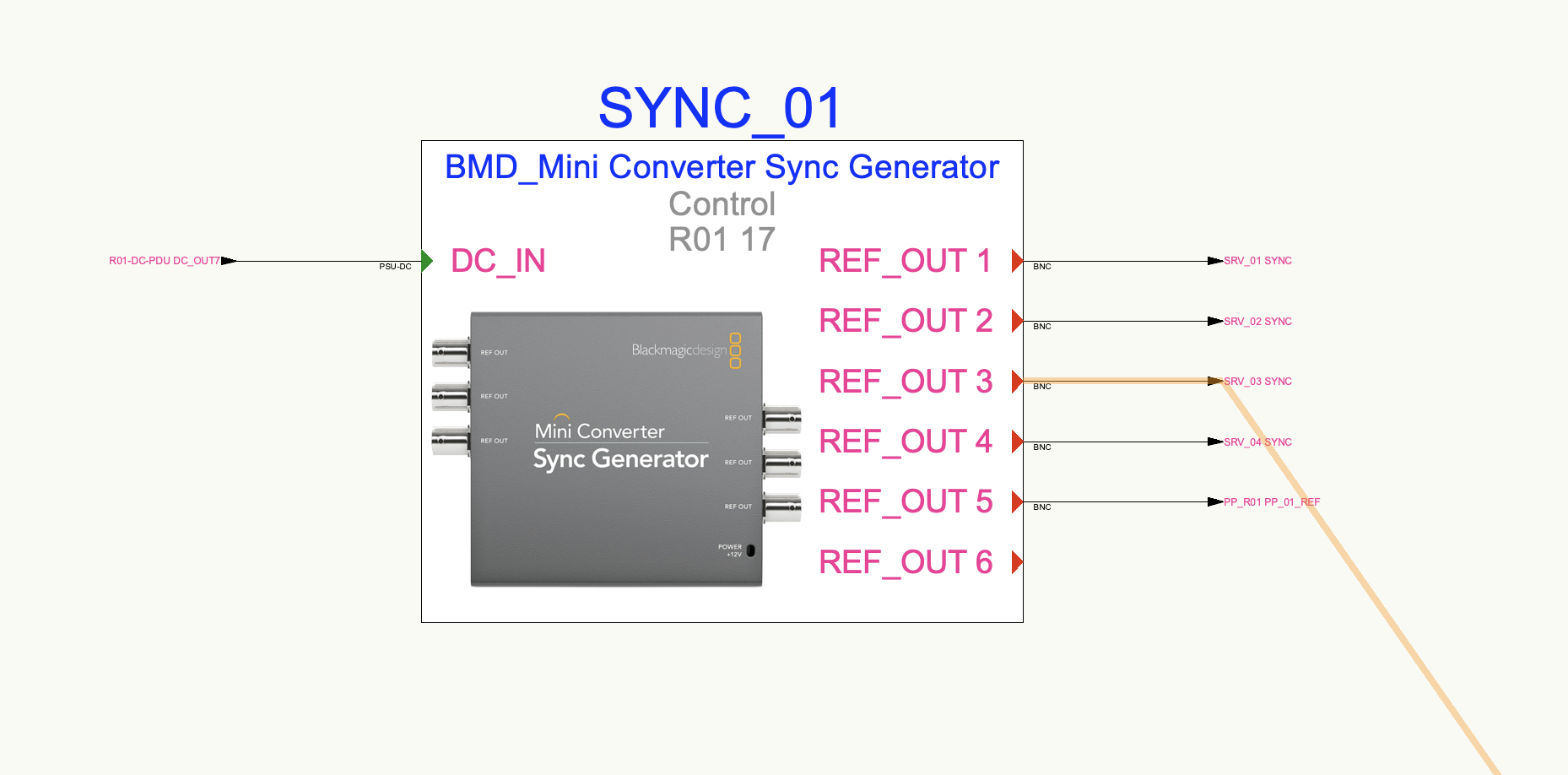

Callum Walker Posted May 9 Share Posted May 9 Hi All, I'm not sure what I've done but I've suddenly managed to make all my connector arrows and text become tiny. I have verified I am in top/plan view as I know that can cause some weird gremlins. I also tried creating a new text style t 18.5pts (which is the same size as most other text) and applying that to all connection classes but that doesn't seem to have fixed it. Does anyone know what the cause of this may be? Cheers Cal Quote Link to comment
Callum Walker Posted May 9 Author Share Posted May 9 Hi just to immediately reply to my own post; I seem to have fixed it by literally selecting everything (command A) on the 2D schematic view and dragging it all very slightly to forced things to re-draw. Very strange behaviour. I will leave this post up in case anyone else benefits from it! Quote Link to comment
Vectorworks, Inc Employee Conrad Preen Posted May 9 Vectorworks, Inc Employee Share Posted May 9 @Callum Walker Sounds like you changed grid spacing in mid drawing. What version are you using? Conrad Quote Link to comment
