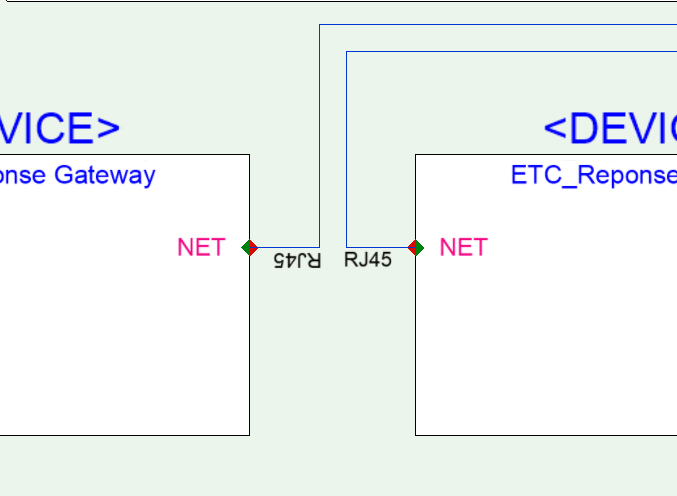

SAmmerman Posted March 12 Share Posted March 12 I occasionally flip devices in my schematics to make the layout more legible, but apparently this makes CC think that the circuit labels need to be flipped too. In the example below, I ran "flip horizontal" on the left-hand device, and now the circuit label is upside down. This isn't exactly a helpful function; all of the text on the device maintains its orientation, so the circuit label is just hard to read by comparison. Is there any way to fix this, aside from creating right-handed and left-handed device versions? I'm trying to keep our database as lean as possible due to the level of custom records data we're attaching to the device symbols; upkeep could become really rough if we have multiple versions of the same device. Quote Link to comment
Vectorworks, Inc Employee Nikolay Zhelyazkov Posted March 13 Vectorworks, Inc Employee Share Posted March 13 Hello @SAmmerman, Try turning on the document option "Adjust flipped text". It should get the job done. Best Regards, Nikolay Zhelyazkov Quote Link to comment
SAmmerman Posted March 13 Author Share Posted March 13 Turned out in this case, I just needed to reboot my computer. It's behaving normally now. Quote Link to comment
