Revision Cloud improvements

[Flair-Studio]

Hello,

I noted in the other software that not only the graphics for the revisions bubbles is a better one, but more importantly that revisions are better organised and linked to data, sheet issues are immediately avaiable where each revision can be listed, numbered, a description can be associated, who made the revision, etc. etc. I use this tool quite a lot and would like to see those improvements embedded.

THank you



[Flair-Studio]

For a starter, it would be good to have the ability to save the revision cloud as a style with repeat graphic attributes (i.e. thick red line, with small billows & no fill) so you don't have to repeat each time you open the tool

[Matt Overton]

I assume this other software isn’t revit.
but full support any improvements to revision bubbles and drawing issue speed such automation might bring

[Jonathan Pickup]

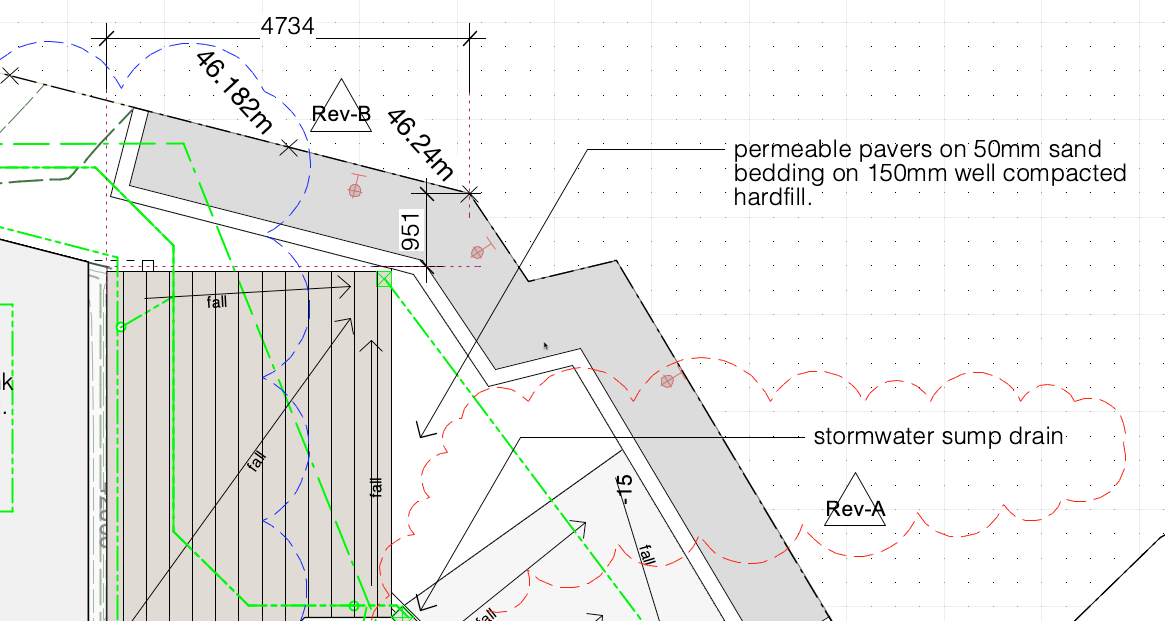

I tend to use classes for my revision clouds so that I can colour each revision cloud separately. For example revision A might be red, revision B might be blue, and so on. This allows the contractor to easily focus on the new revision. I also put my revision clouds in the annotation part of the viewport which allows me to use classes and always allow me to control them through the viewport class settings.

[Jonathan Pickup]

By the way, the revision number is connected to the class so that as I assign the revision to the class it updates the revision number.

[Tom W.]

I do all this too but I'd still like a smart style-able Revision Cloud object which is linked to the TBB + which I can pre-assign Data Tag/s to like a Space object.
