Question
Hanna N
Hi

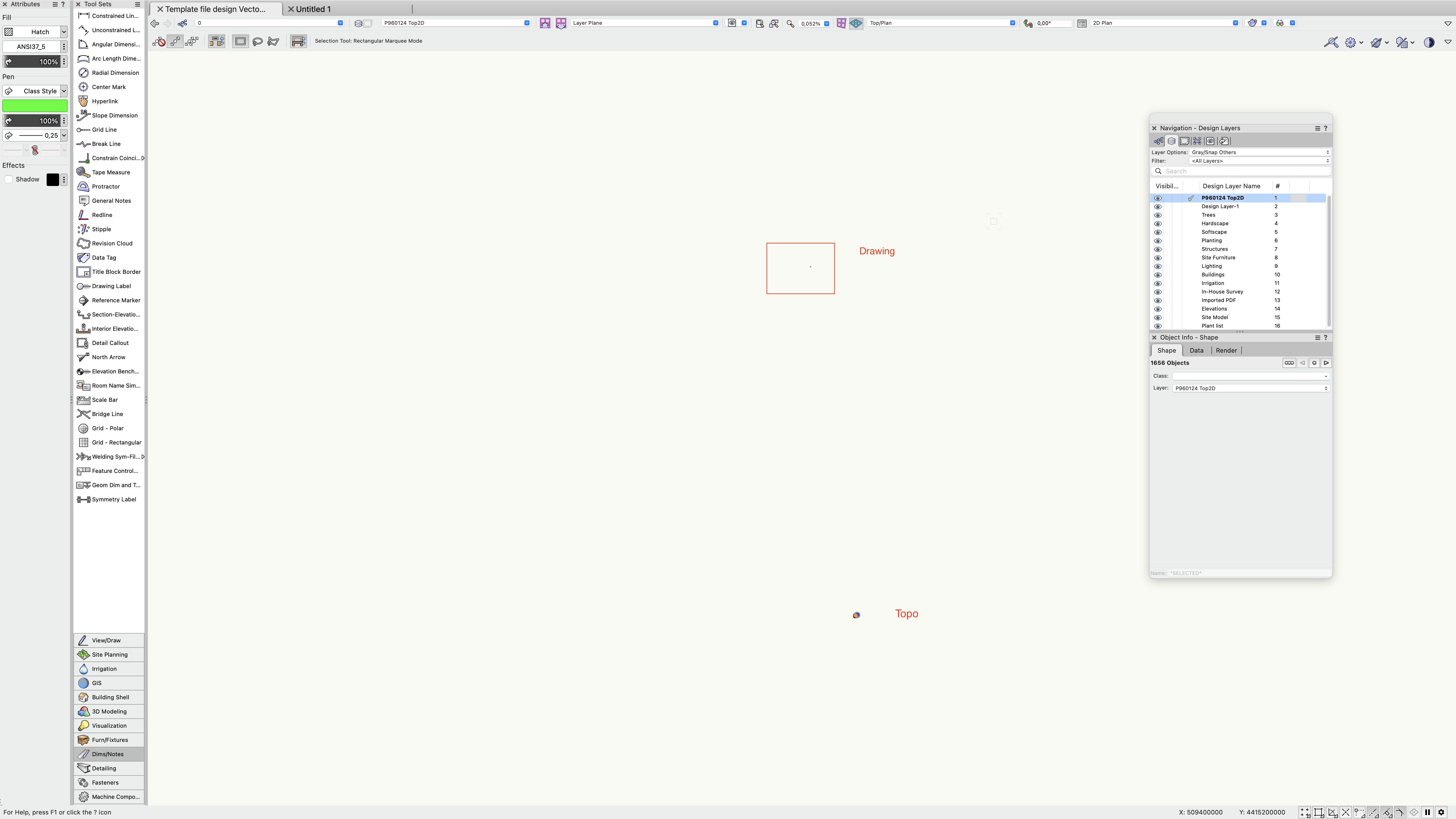

I have a design template set at 1:100 which I use for my design work. I have received and imported a DWG file from a topo survey (also set at scale 1:100) however it appears very far away from my actual drawing template. How come, and how can I resolve it? I have attached a screen shot to illustrate.
Link to comment
0 answers to this question
