worksheet to create report of hanging position and heights


Recommended Posts

Hello.

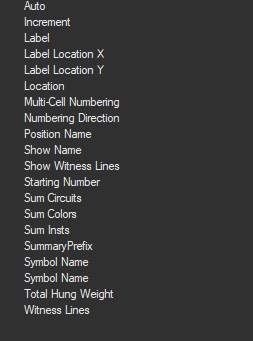

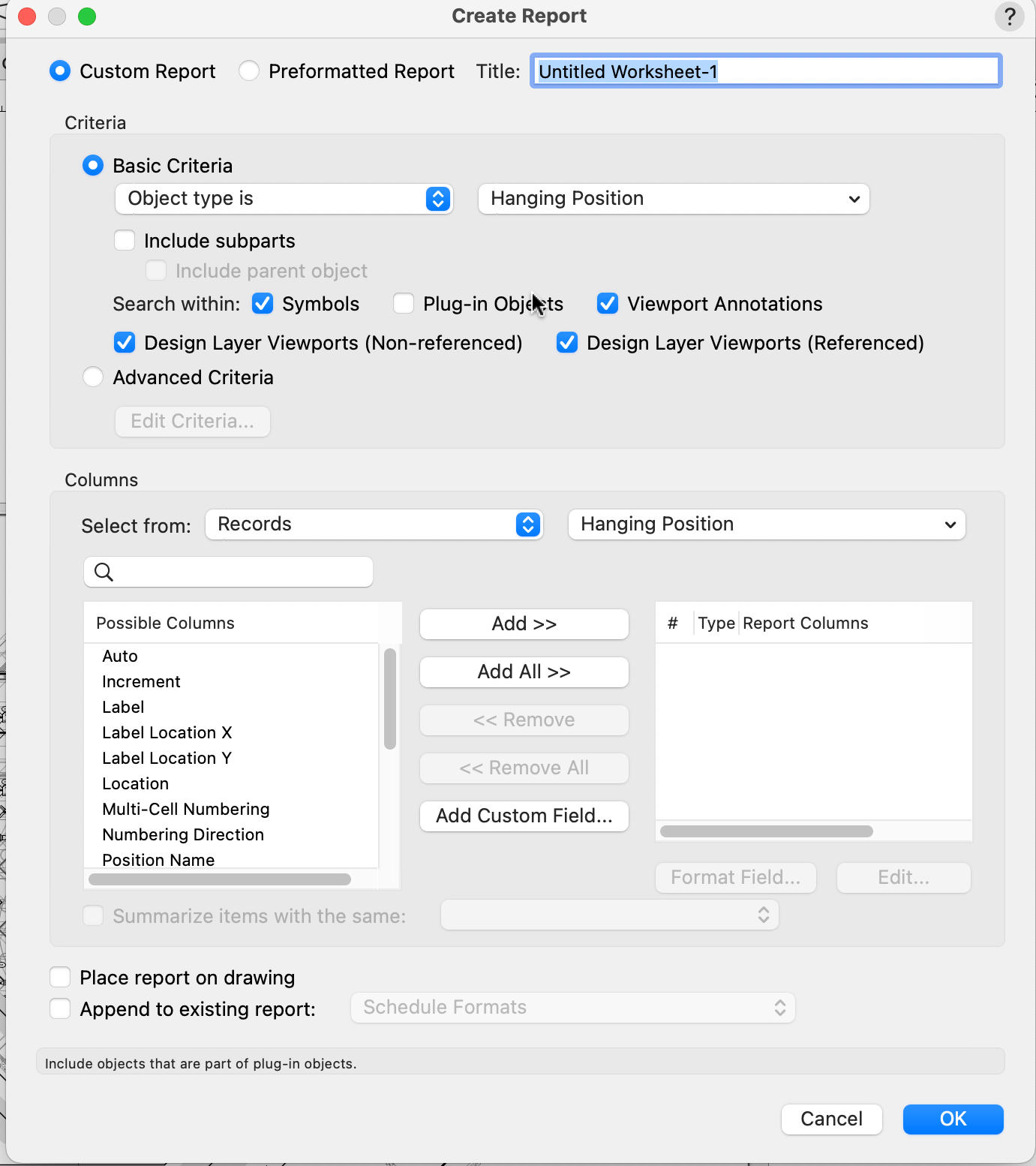

I'm trying to create a report that lists all of my hanging positions in one column and the height of that position in the second column. However, I can't seem to find "hanging position" as an object to get attributes from.

Any help would be appreciated.



Cheers.



Link to comment

I would like to expand on this conversation. I am trying to create a truss count report from a hanging position. The position is a truss tower. If I run the Position summary, and add truss to the filter, I should see the truss symbols in the list of used symbols, but the truss that is used in the hanging position does not show up as something that can be included in the position summary

If, instead of the position summary, I run a worksheet that counts truss, none of the truss in the hanging positions appears in the worksheet. The worksheet only sees truss that is inside of a symbol that is elsewhere in the drawing. Then when I convert the hanging position back into just symbols, the worksheet includes the truss.

How can I use the Position Summary to count Truss in the position?

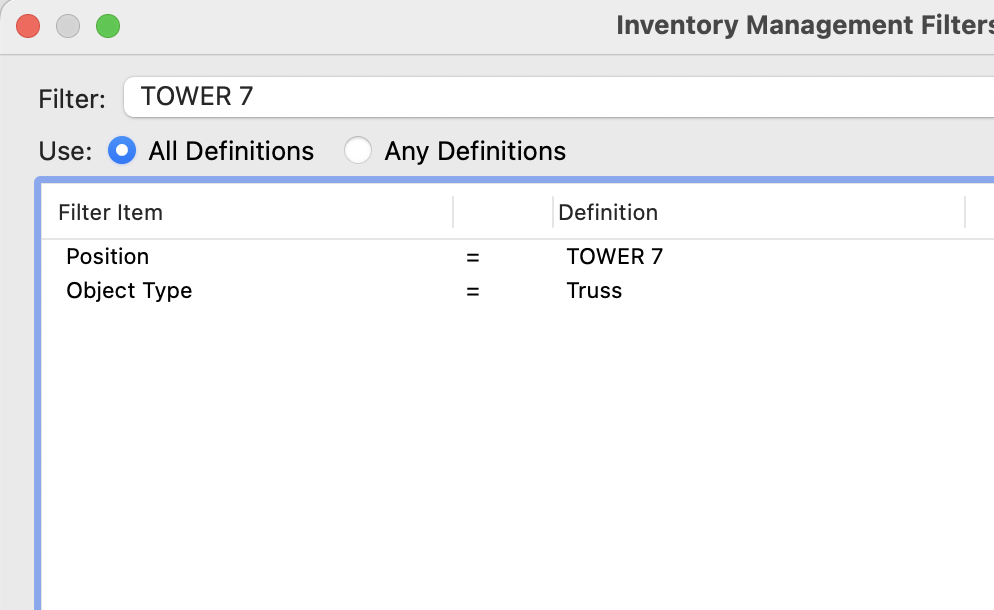

Screenshot 2024-06-18 at 8.33.22 AM.png

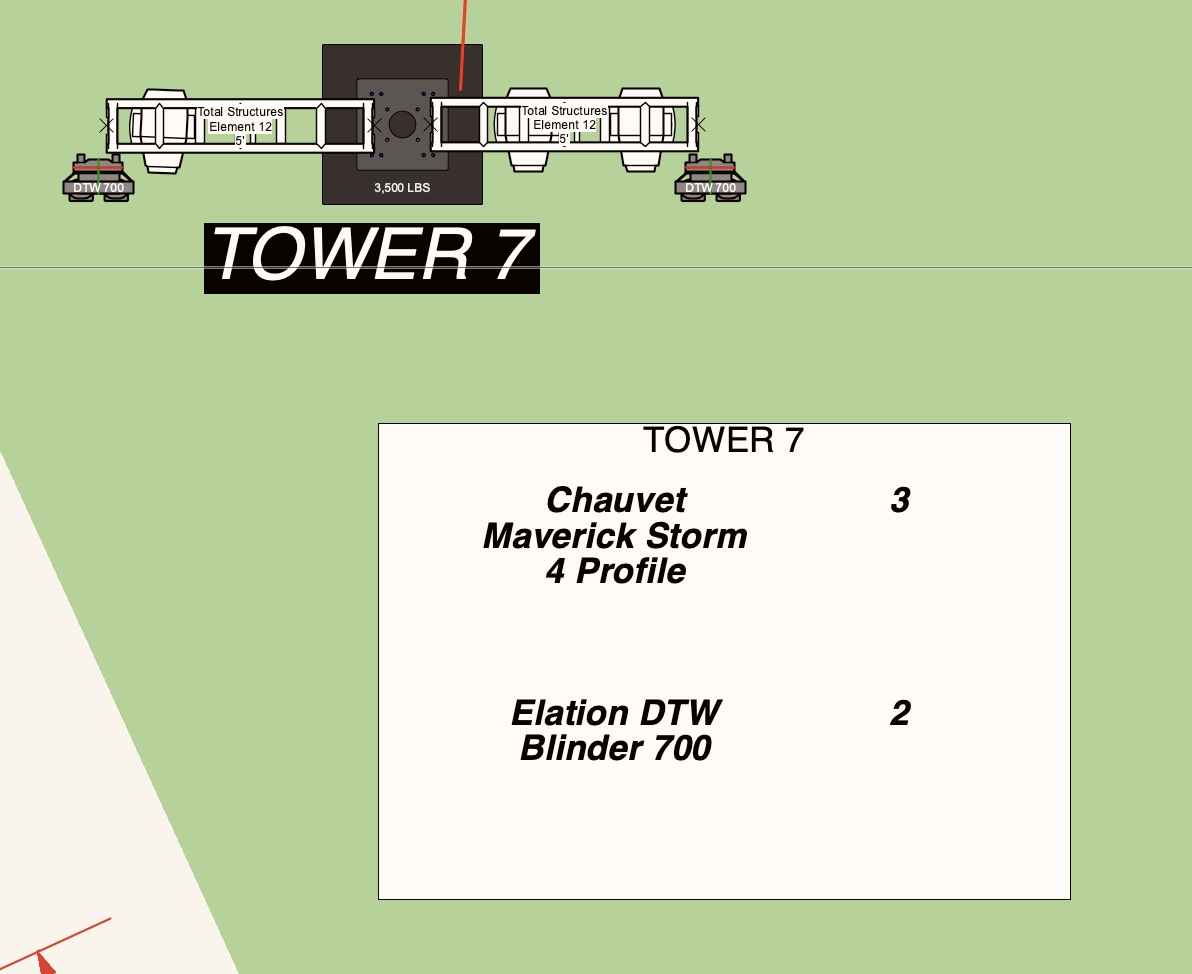

Screenshot 2024-06-18 at 8.33.37 AM.png

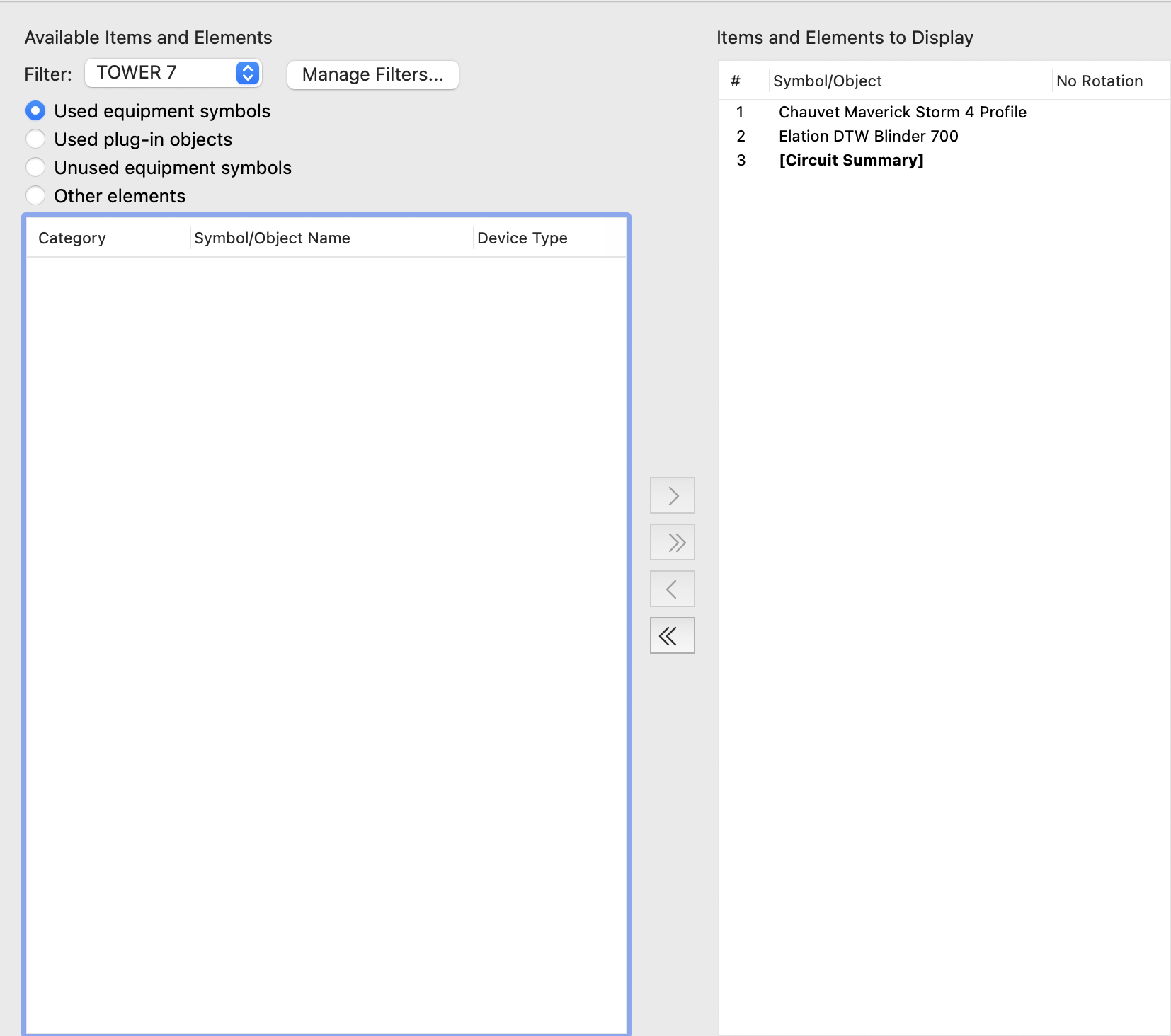

Screenshot 2024-06-18 at 8.33.48 AM.png

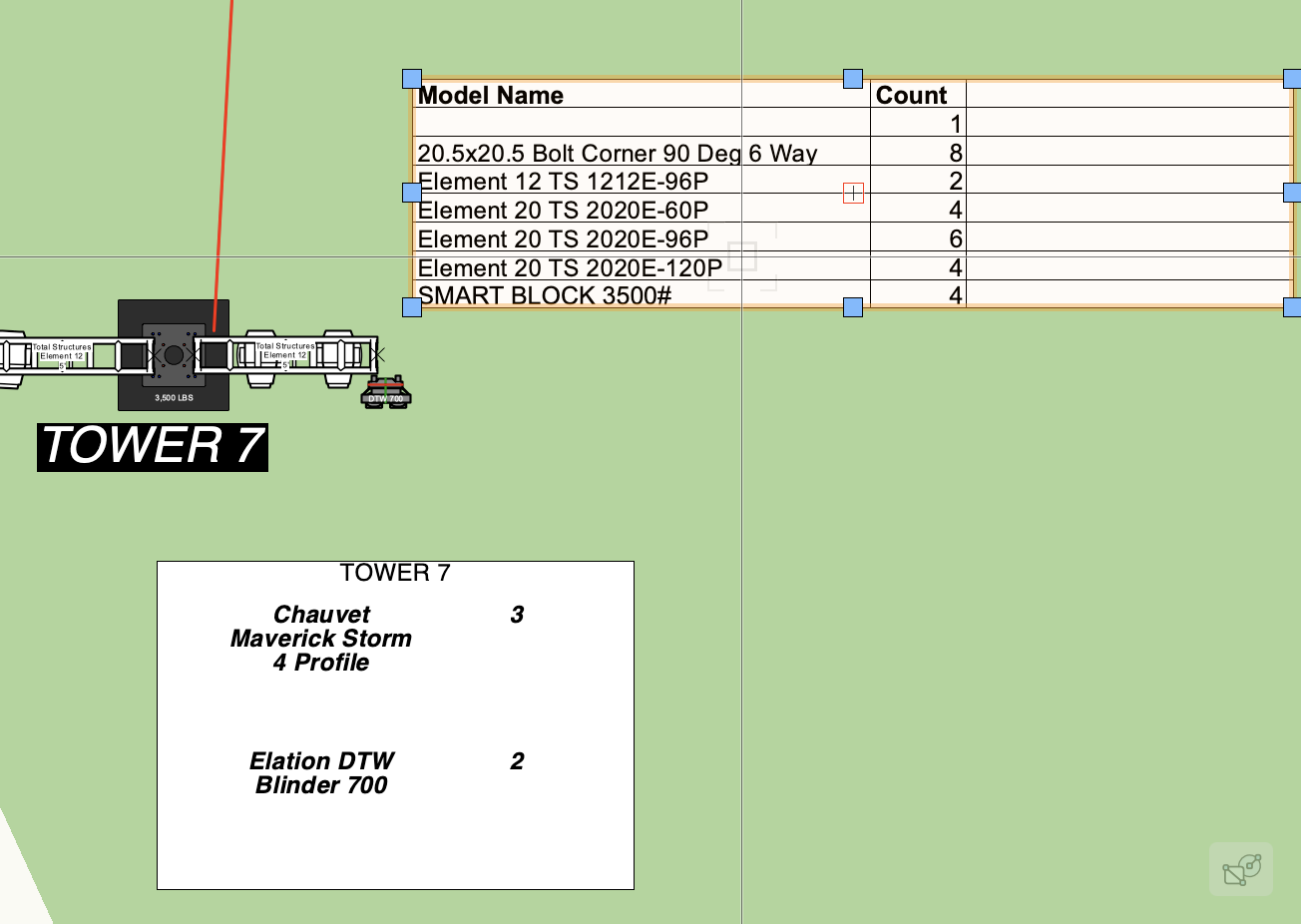

Screenshot 2024-06-18 at 8.46.59 AM.png

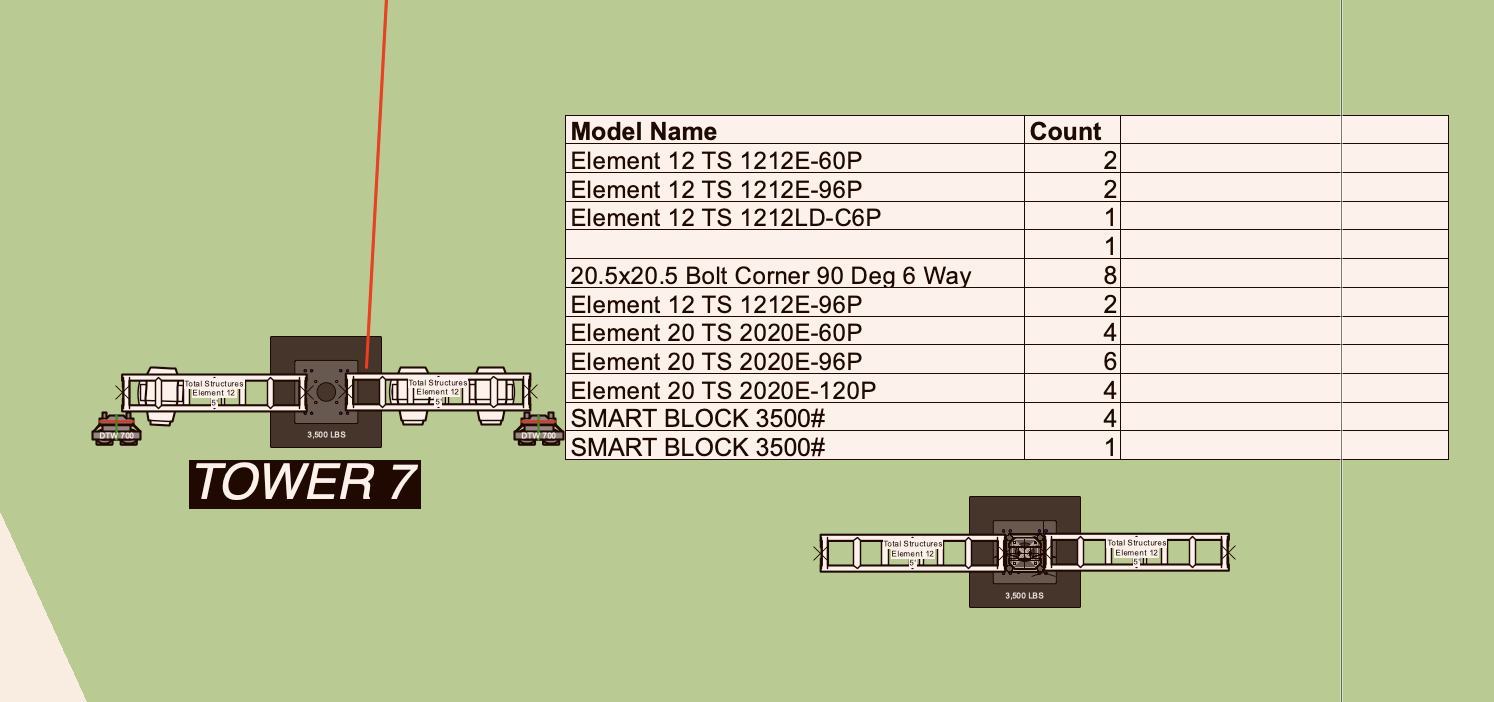

Screenshot 2024-06-18 at 8.48.06 AM.png

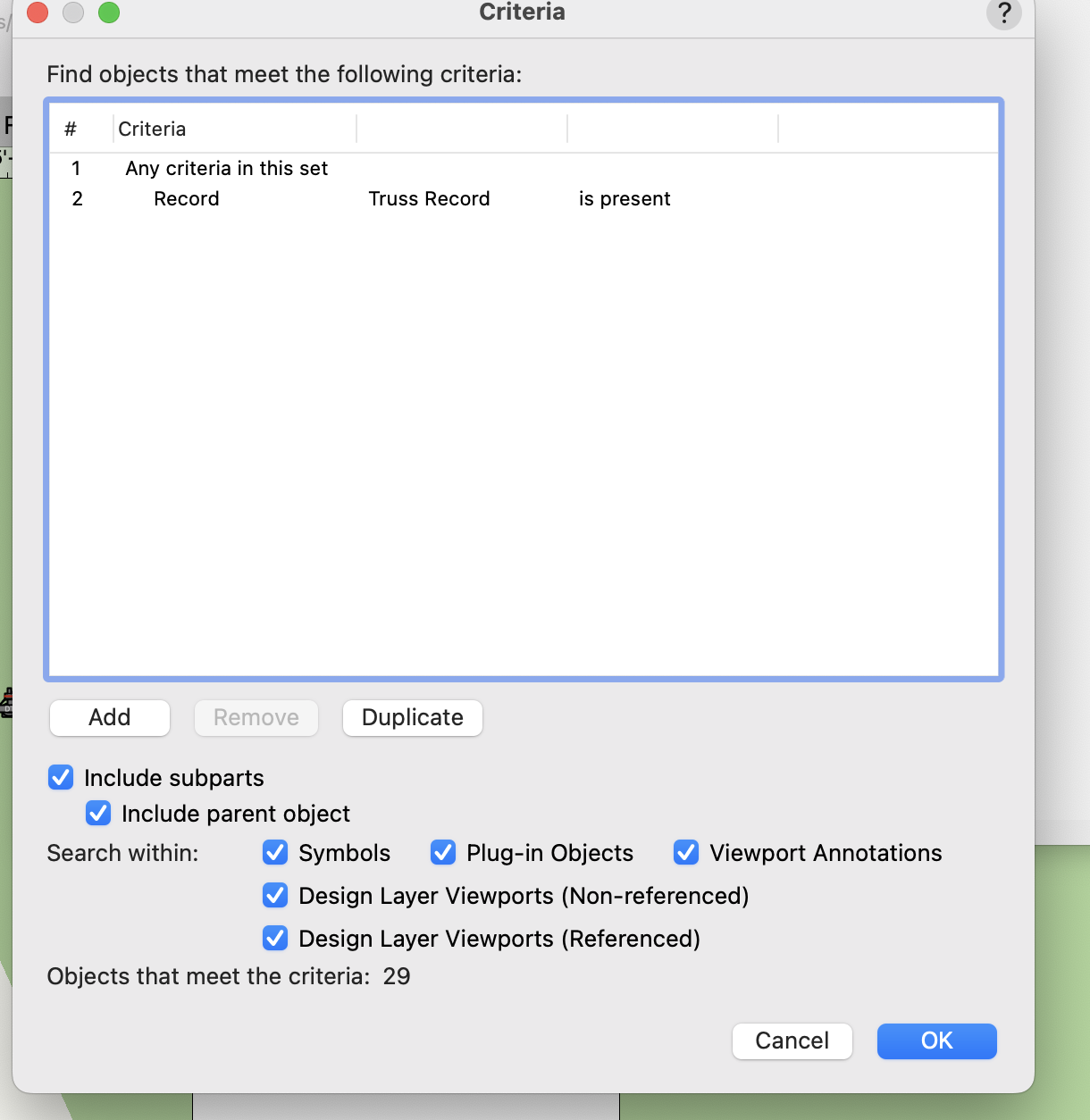

Screenshot 2024-06-18 at 8.47.27 AM.png
