Fanout Report

[Davile]

Trying to figure out an effective way to report what fixtures on what circuit of a soca fanout.

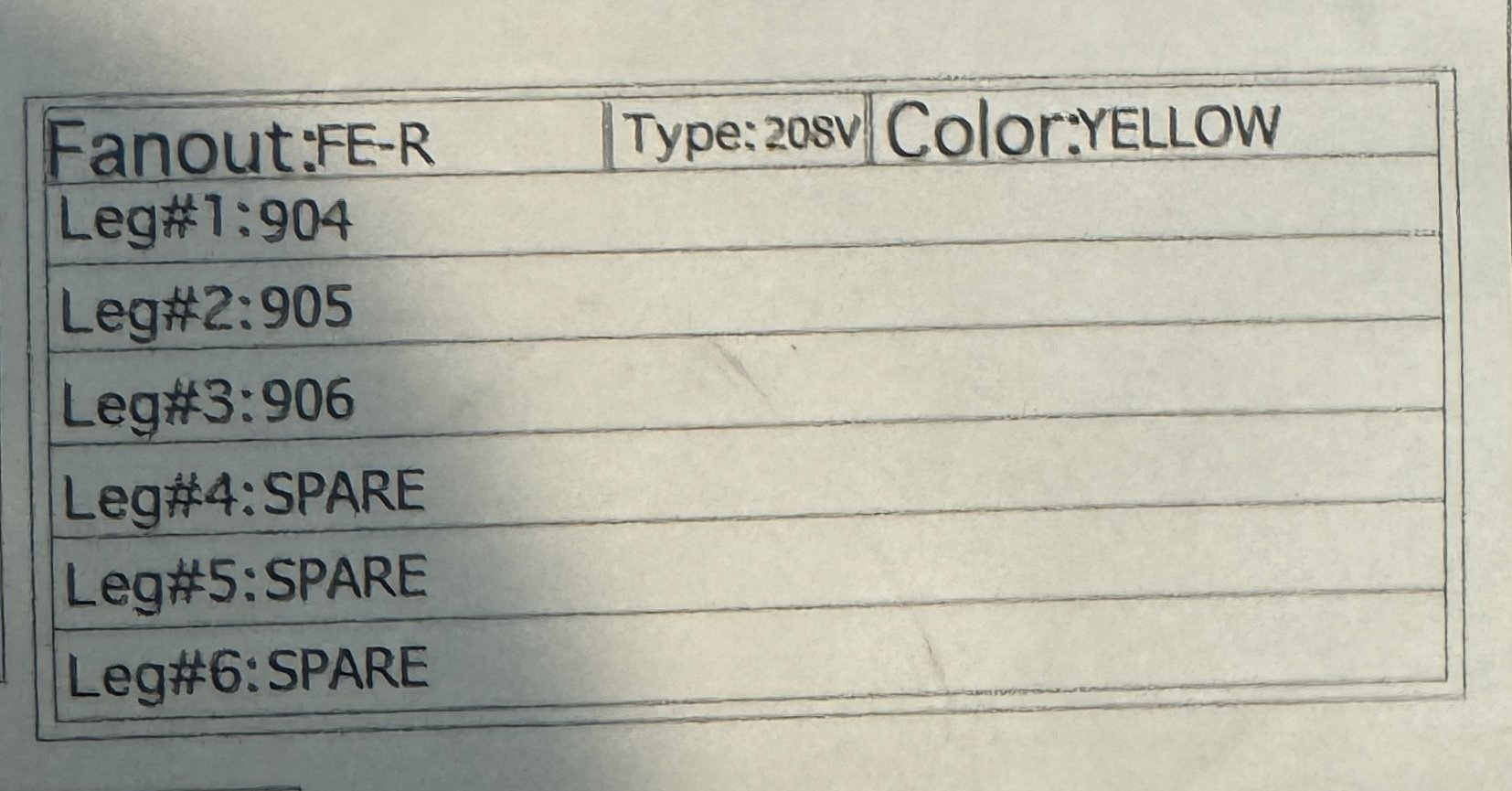

I am hoping it can be either a data tag or a symbol. I have attached a picture of something I have seen out in the wild.

Or can this be in a worksheet that gets information from records. Thanks!!

[Scott C. Parker]

Each light has a "circuit name" (fanout name) and a "circuit number" (leg#) field. A worksheet will work based on using these two fields plus any other fields you need. The ones you list as spares won't say "spare" as they'll be empty.

[Scott C. Parker]

PS, you can do the same with data tags. We have one called "Data Tag-Breakout" that does what you want.

[Davile]

Thank you so much. I knew there had to be something. Is there any way to make the color display the actual color. Maybe through data visualization?
