Slab Components Disappearing Below Taper

[Matthew Thomson]

Hello, just upgraded to Vectorworks 2024 a few days ago and had previously modelled tapered slabs in Vectorworks 2023, with a 2% pitch to the rigid external insulation.  Everything seemed to be fine in VW2023 but I'd noticed in VW2024 that the components below the taper were not appearing, and I have only got them to appear if I change the taper to being the entire slab.  Anyone encountered this?

[Tom W.]

I have just tested + am seeing the same thing unfortunately...

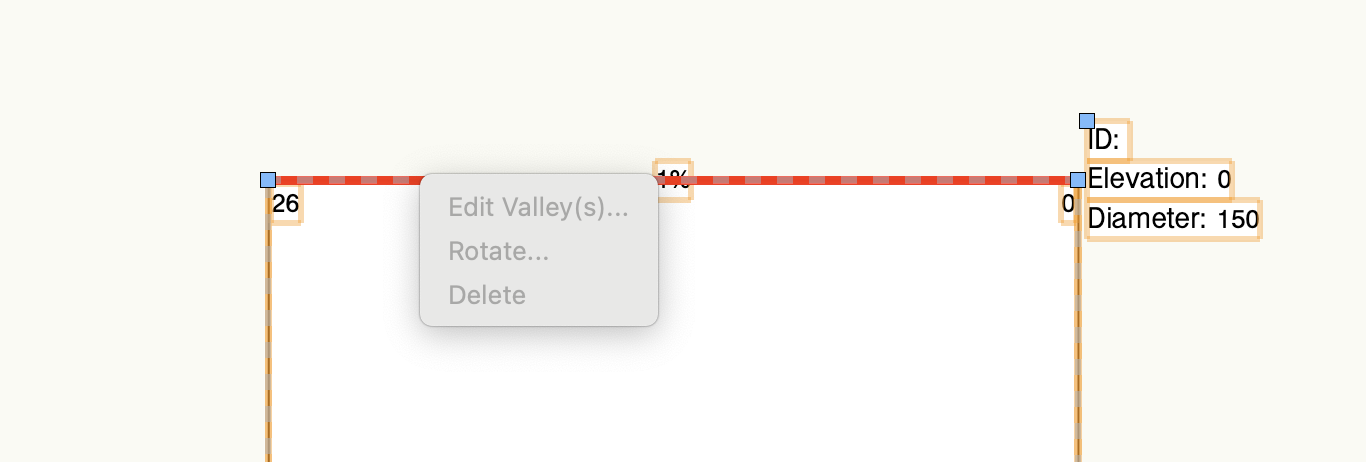

Also I can't seem to be able to edit the valleys: the options are greyed-out



Time to call on @Matt Panzer...

[Matt Panzer]

Can someone attach a simple file showing the issue?

[Tom W.]

Sure: Slab File for Matt.vwx



1. Try to edit valleys to change slope value + you can't.

2. Change to fixed thickness slab + components 2-5 appear; revert to tapered slab + they disappear again.



Thanks!

[Matt Panzer]

Thanks for the file, Tom.

I'm not sure if this is a known issue but I went ahead and submitted a bug (VB-199339) to make sure.

[jason schneider]

^^^same issue. Thanks!

[Matt Panzer]

This issue should be fixed for Vectorworks 2024 Update 1.

[Tom W.]

5 hours ago, Matt Panzer said:

This issue should be fixed for Vectorworks 2024 Update 1.



Indeed it is! Thanks
