Issue with Landscape Area not adhering to Site Model

[hollister design Studio]

Opened this file this morning and all hell has broken loose.



The site model had shifted an undisclosed distance from where it was supposed to be.

Moving it back cause the site model to break horribly - the Contours are showing as correctly, but the mesh is all messed up...

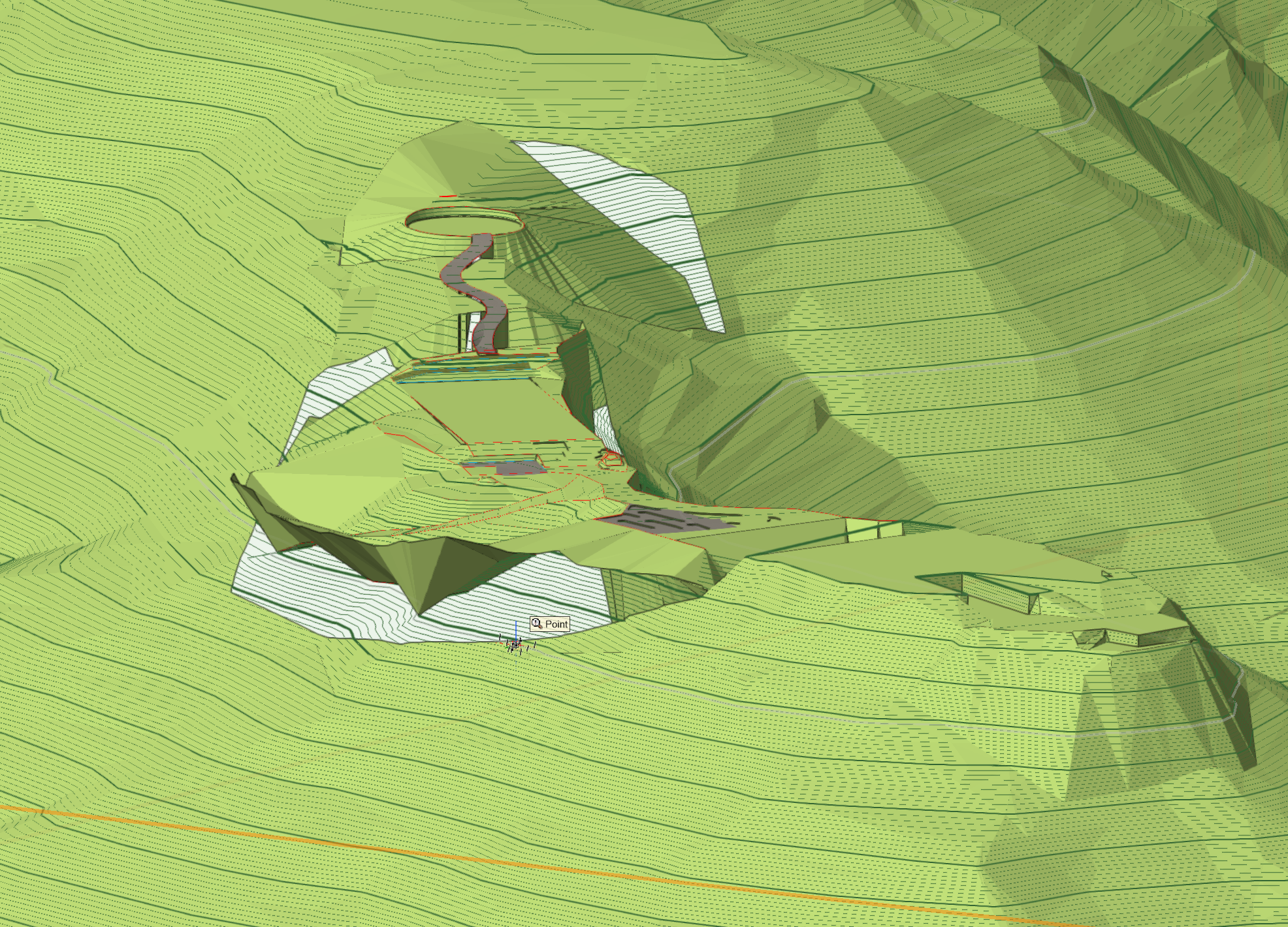

Oddly broken Site Model:



So, I deleted the whole Site Layer and pasted a copied Site Layer from a backup file.



This seemed to work..







Except one of the Landscape areas is now completely broken in 3D.



Screen Grabs-

Isolated Top View: Landscape area is fine.



Isolated 3/4 view:

the center section is displaying moved and under the section to the right AND the section to the Left is no longer adhered to the site model.

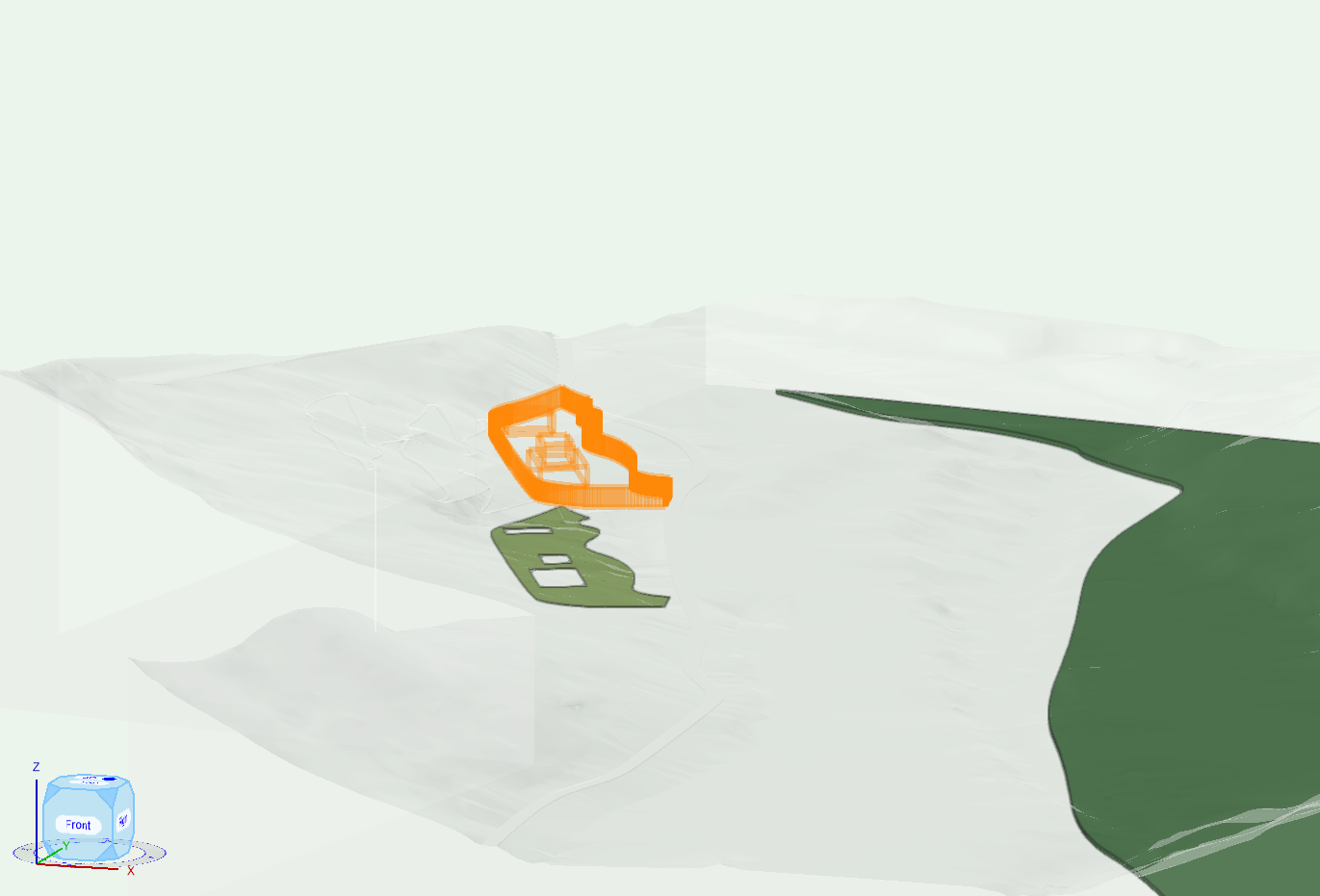

Non-Isolated showing that LA is not adhering to surface:



Send to surface does nothing

Upddating the Site Model Does nothing.





Thoughts?

Should I upload these to Service Select tech support?

I did save out the various states as separate files.





Edited December 27, 2022 by hollister design Studio

[alva]

How come no one is answering this question?





[Jeff Prince]

5 minutes ago, alva said:

How come no one is answering this question?







Maybe because it is over 3 years old, the file was not provided, and the cause of the problem is user error?  Don’t move your site model 😉



[alva]

15 hours ago, Jeff Prince said:



Maybe because it is over 3 years old, the file was not provided, and the cause of the problem is user error?  Don’t move your site model 😉

GIS workflow_Day12 Landscape Area.vwx



@Jeff Prince



Would you be so kind and help me work out what 'user errors' I have made in this instance?😇



How slow it is for everything to load drove me nuts. I already simplified the source data for site model to 0.2 max deviation and not sure why there's still a lag.





What I did to create the LAs:

_> on DTM layer create closed poly

-> create landscape area from shape

-> send to surface: site model

-> site model layer: DTM



and the LAs still appear as extruded polys...



File attached.







[Jeff Prince]

3 hours ago, alva said:



@Jeff Prince



Would you be so kind and help me work out what 'user errors' I have made in this instance?😇



How slow it is for everything to load drove me nuts. I already simplified the source data for site model to 0.2 max deviation and not sure why there's still a lag.





What I did to create the LAs:

_> on DTM layer create closed poly

-> create landscape area from shape

-> send to surface: site model

-> site model layer: DTM



and the LAs still appear as extruded polys...



File attached.







I can take a look at it this weekend.  You might want to call Tech Support, they should be able to sort you out.

[jpccrodrigues]

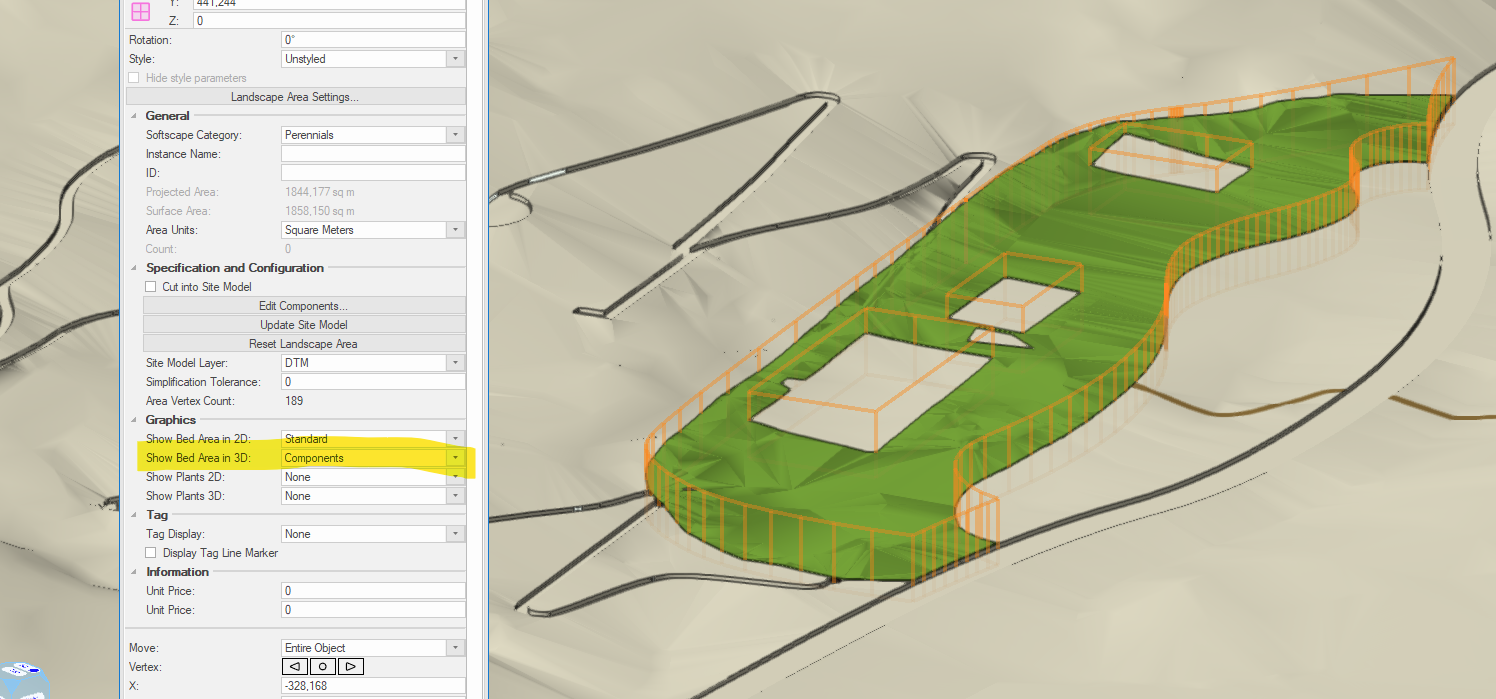

This worked here. I don't know why Texture Bed isn't working, but in this way, it appeared.
