Expert needed! Help with creating a parametric object

[Maurice L]

Hello Experts!



I'm looking for someone who can helps me out with producing a parametric (or plug-in) object.

The thing is; i'm using a lot of retail shelvings in projects and instead of making tons of symbols with different heights depths etc.

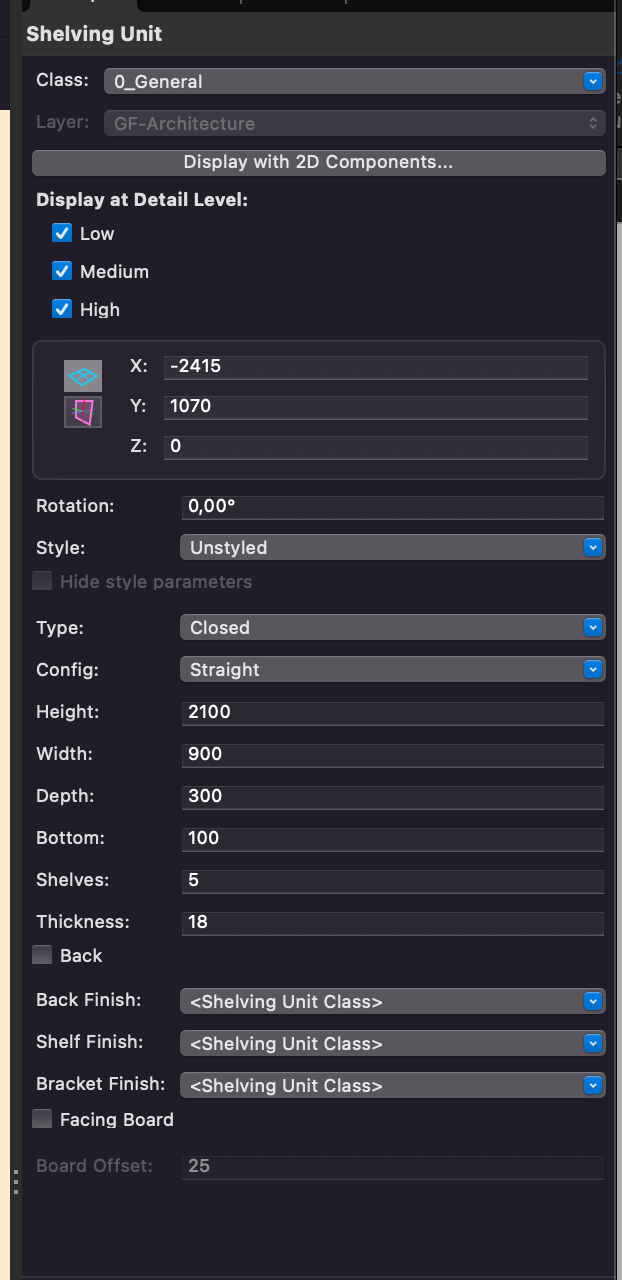

So in vectorworks there is a tool called 'shelving unit' (in furn/fixtures) and its basically close what i want.

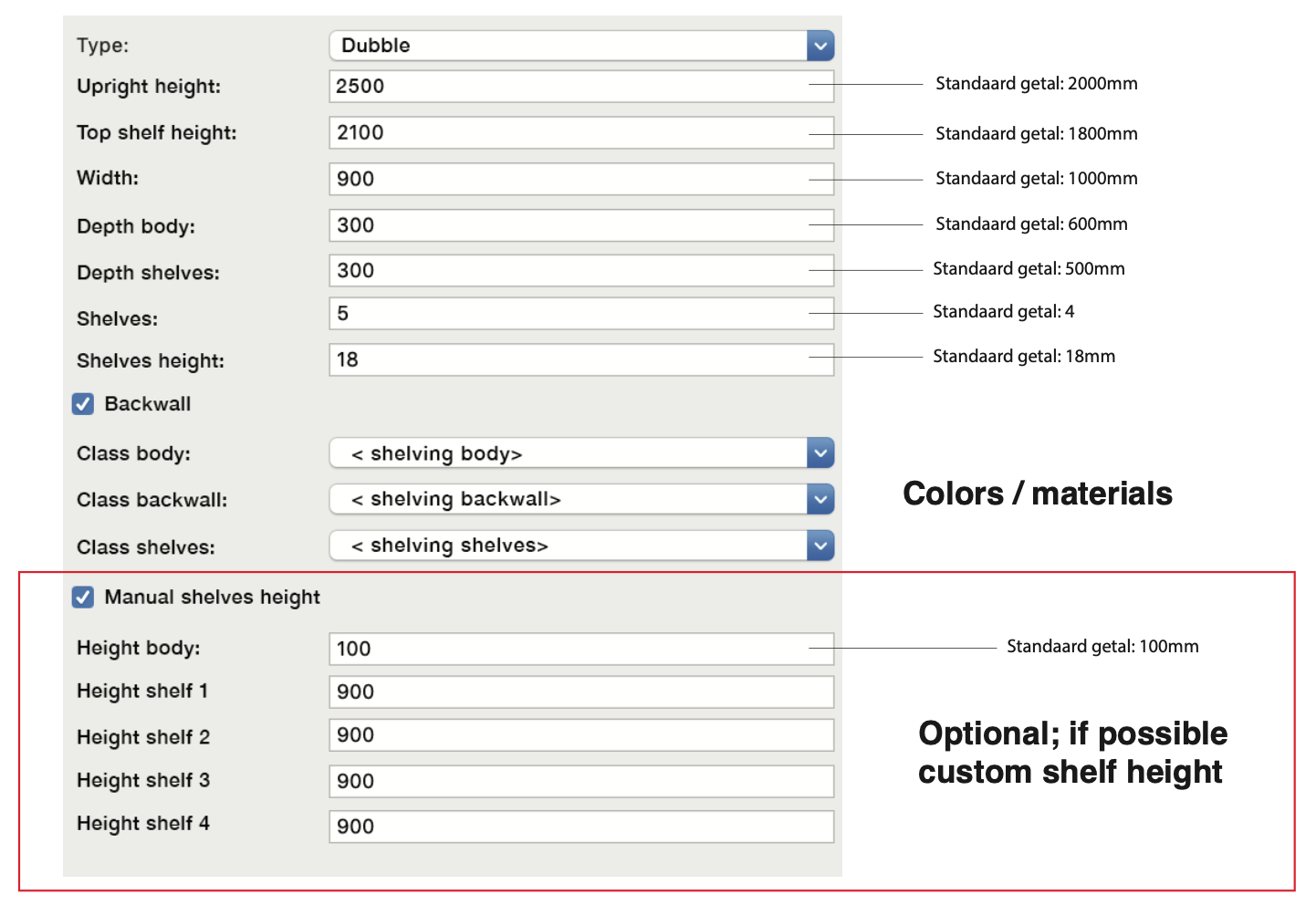

Wishlish:

- Changing height of shelving (different)

- Changing width of shelving (500, 665, 1000, 1250, 1330mm or custom)

- Changing number of shelfs and depth

- Changing base depth

- Changing backpanel (open, closed or mesh)

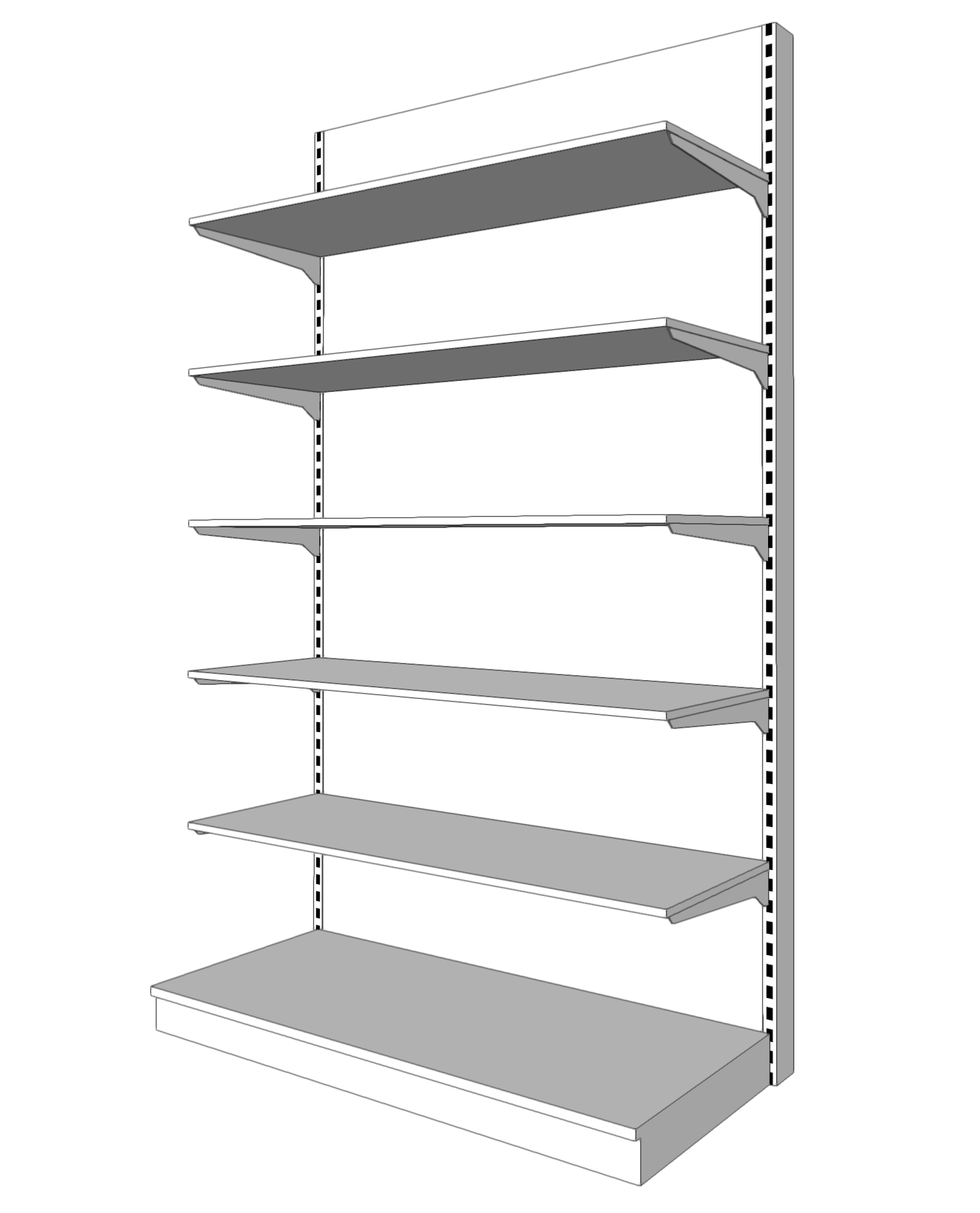

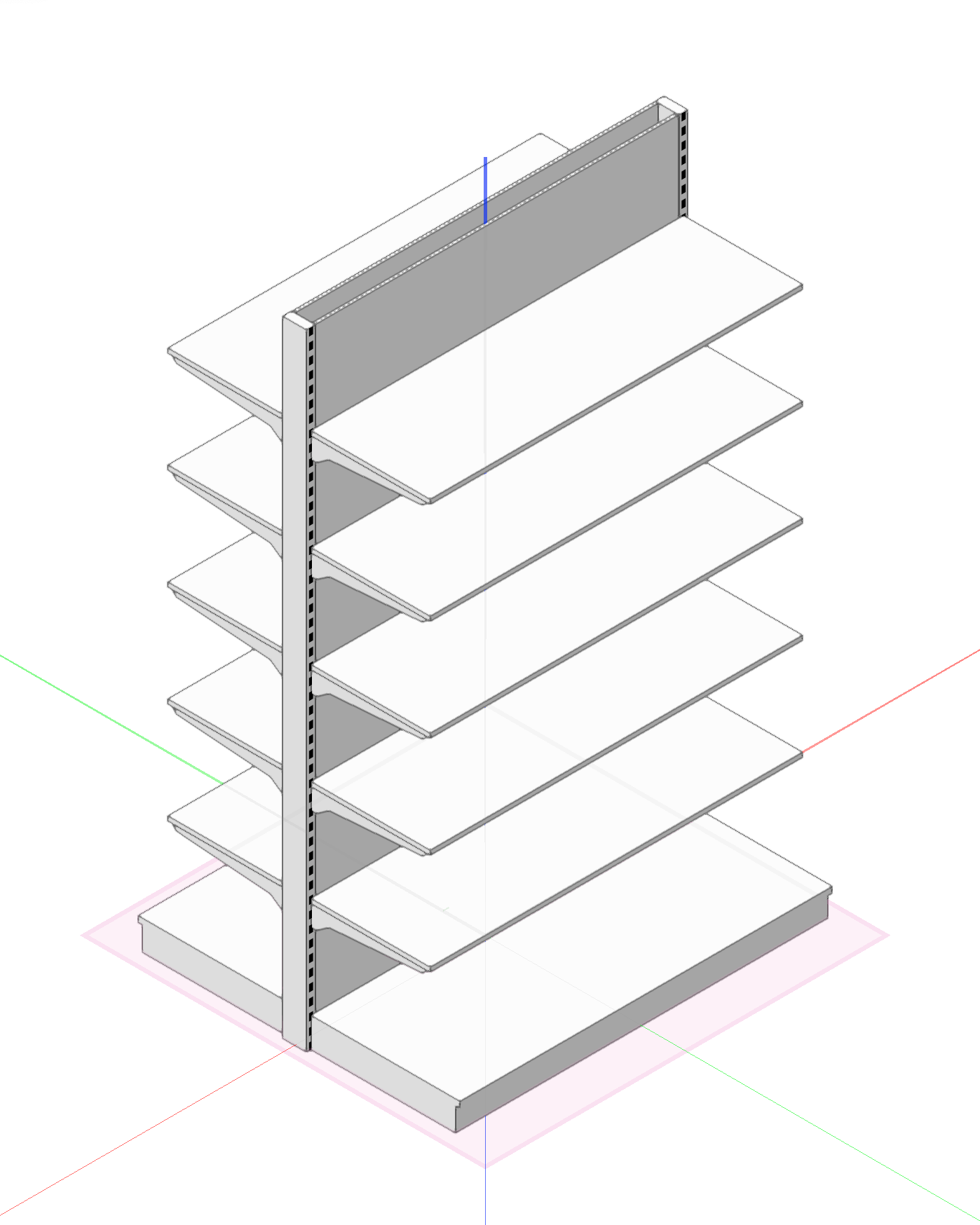

- Changing wall unit or gondola (2 sided)

- Manually shelf heights (if possible)





I'm also checking if its possible to count all my shelving with a report. ( without having coincident uprights)

Additionally would it be great (or for future) to generate a report of this with all the different parts; for example the number of uprights (of different heights) brackets, shelfs, etc)



First of all, is this possible? Secondly are you the one that could build this. Please contact me.



shelving.vwx
