Hi Matt, I can do that but I don't remember what channel to use to do that... Thx

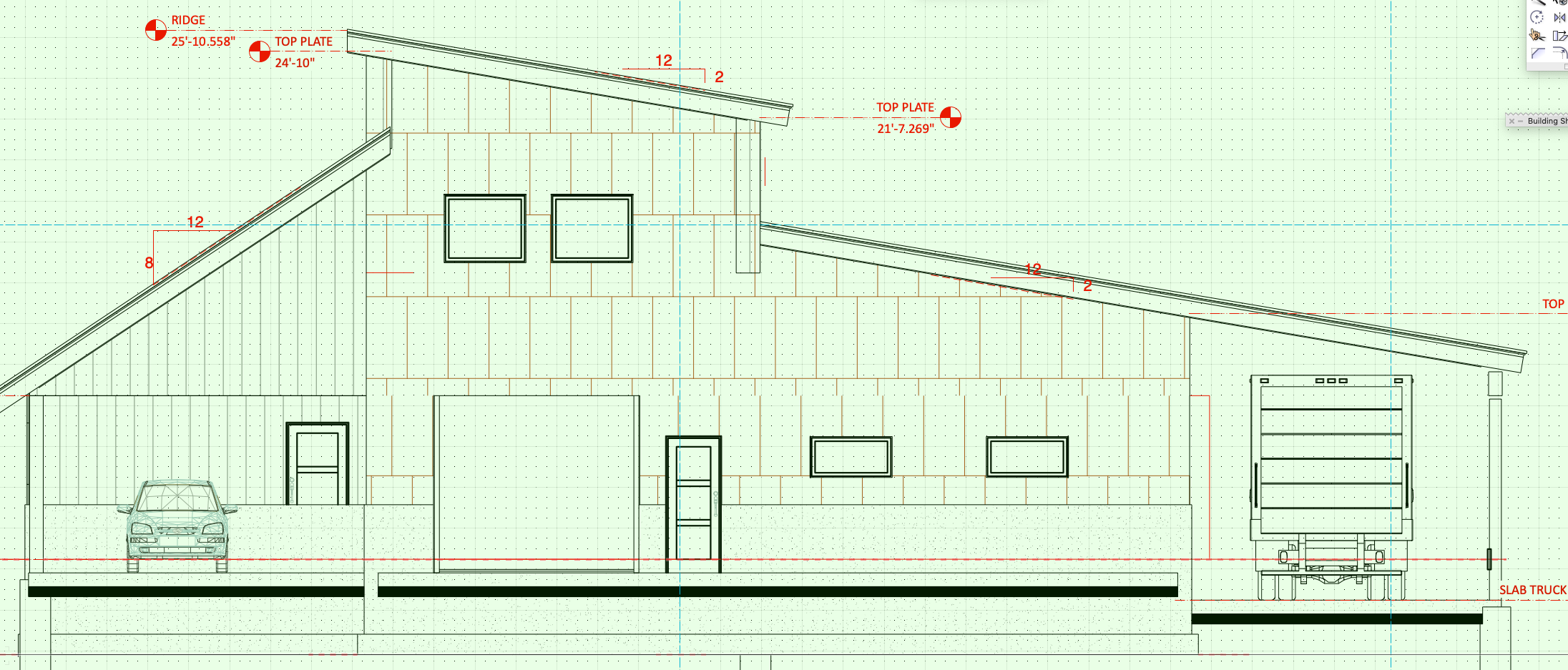

Here is a screen shot of a Edit section viewport view. Only part of it is showing. Is this a glitch or do I need to check on something. The elevation viewport edit seems to be working but the graphics quality is very poor

Got it, thank you. It appears this is another quintessential vectorworks flavor which does not give you the option if you right click on the instance on the drawing. ♻️

I have seen these before and it makes it difficult to share, how do you get rid of these outline ghosts? It is interesting to note that the silhouette appears on the roof layer only (it appears so far)

My fridges do not stick to walls, how can i modify my symbol to do that?

Can someone help me resolve the issue of not seeing the filled section when I move the edge of the clip cube through the model attached? Much appreciated Thanks CF clip cube missing fill.vwx

Can someone help me resolve the issue of not seeing the filled section when I move the edge of the clip cube through the model attached? Much appreciated Thanks CF clip cube missing fill.vwx

@Wes Gardner, I attached various Ifc data to light fixtures, plumbing fixtures etc. I created a report but it gives me a list of all items, How do I create reports per fixture types? Attached is the file and two images showing syntax in report. If I could get just a general syntax for light fixture and plumbing fixtures that would be great. See light fixture ifc data template I use but can't get proper syntax for Chaar Bathroom plans & int. elevations.vwx

I guess I was not clear on this question (thank you for answering though) I was meaning to ask how to add a hatch to a 3d extrusion so that it shows in a viewport with hidden line rendering type i.e. interior elevation (I assumed that a hatch associated to a texture would fit the bill, which it does). The other side of this question has to do with how to modify this hatch so that in the case of a tiled wall, can be set to a specific origin. It seems to me that this does not function properly in Mojave with VW 19.

I created a tile hatch and attached it to a texture to make an"RT" hatch which renders a hatch in hidden lines. I created a rectangle, extruded it and applied the texture to it. All of this works and it shows the hatch in hidden line rendering but I would like to start this hatch at a particular point on the floor. I tried to reshape the rectangle and moving it around to bring the center to the center of the room but when I resize the extrusion to match the room size the hatch jumps around and I loose my setup. Arrrgh Spending too much time on this, any suggestion? thx

after mentioned issues with mojave and version 18 I decided to install v19sp2 on mojave and it is working fine. looks interesting. best of luch

I get that vector need to create updates regularly to sustain sales but it seems that all release now come with so much frustration and bugs that it may be wise to release less improvements but with better finished features and complete troubleshooting. It’s not fair to any of us who stand behind VW and have to spend countless hours frustrated and not able to respond to deadlines !

Please update (rush) the service pack for VW 2018 to work with Mojave, I installed it without knowing of the issues and nothing works properly. Arrgh When can we expect to see that?

Ambient light on? Any light setup?

the creation of keynotes and relation to their legend is less than satisfying. The created first keynote legend is not showing up and the the Note: is not linked to anything. I found a way around it by copying one that worked on a previous file and renaming it while relinking the keynotes to it. this is an issue with 2018 it seems. Please resolve this issue quickly this is very annoying. Thank you

keynote legends have been a bane for me also. I just created a sample file with a keynote label. The IP refers the Keynote Legend as the Default Legend of which there is none. At the same time a "Note:" appears which as i understand it should be the legend for the keynotes but there is not note in there. My solution is this: Copy a keynote legend from a file where the connection worked before. Paste it to you desired file and link the keynotes to this legend. Rename the keynote legend to your liking Hope that helps

Ok, I figured what I was doing wrong. Did not follow your video properly, forgot to select the side of the clip cube prior to creating the viewport on the design layer. The other thing I noted is that the section attributes must be setup by class so that it takes the hatch that you want. Got it now. Thanks again for your help. Best CF

got that, will look into it, thank you mark

@markdd Thanks for the offer, I think its a setup issue and will get with VW on this, no emergency. On the other hand, how do you setup the clip cube, red fil to the hatch you have on your section?

I don’t know about a script but you can program a right click menu to update VP

@markdd yes I do that and that’s when I realize the clipping disappeared. I will call VW Monday and will let you know how we resolve this. Thank you

@markdd mark I can’t seem to make it stick in my viewport, the view has no clip cube in it @markdd

@ericjhberg This is the way I tend to do things also. On another topic, the annotations to inform the plans, sections etc.. and also dimensions (associated to walls in DL but not in VP) Do you add these annotations to the VP or the design layers? Lastly, does it make sense to create a model, reference it in single files for each sheet or like I do, keep it all in the same file? I know it's a long discussion, but the separate model is the setup used by Nick Sonder in Sketchup. Would that save memory, overall improve efficiency ?

Is there a way to create a viewport with a 3D view with a clip cube cutting throught the model. It seems as if the clip cube disappears with the switch of the clip cube being off . In other word, I am not trying to create a section view but a 3D view with clipped parts using the clip cube and keep the viewport setup for the clip cube ON whether or not the general setting for the clip cube is ON or OFF in the design layer later on. Hope that makes sense. Thanks CF

Ok, back to the discussion of modeling workflow, my question has to do with at what point do you stop modeling in 3D and you start entering information into your viewports? Do you draw the roof rafters or just the roof cavity and details on top in the VP? Do you model walls with sheathing, insulation, siding and drywall or just framing and then add details as needed to inform the sections?
