Please post a test file so we can see your settings.

It sounds more like you're looking for an instrument schedule based on each truss. If you create a report and use the Criteria window to limit the worksheet to each truss, you'll get what I think you're looking for.

I'm happy to take a look if you can post a sample file. Adding class to the filter is on our list of fixes we need to do.

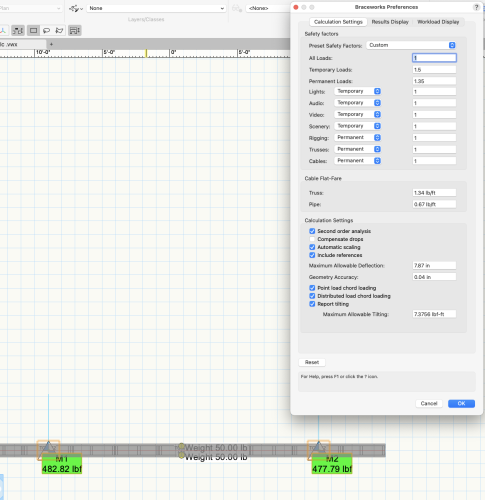

I played with your file and changed the number shown below to 10mm and it all worked. It's like a forgiveness setting. 🙂 Keep in mind that it can get you in trouble when two truss systems you don't want to be connected together are within the accuracy limits.

Did you do the delete thing and insert into a design layer process I mentioned? I'm bug hunting and if this process works, it's helpful to know.

Lain, Would you please post a test file so we can follow the steps you mention?

Here's a conversation similar to this.

Is this in a sheet layer or design layer? If you started in a sheet layer... Delete all summary keys. Insert a summary key in a design layer. If the text looks like line, adjust the text via the three text formatting buttons. Once placed in the design layer and the text is visible, placing new summary keys in sheet layers should work. Please let me know how this goes. If this doesn't work, please share with me a file. Thanks, Scott

This is what I was going to play with. It should work.

You might have used the page setup or print setup settings in the template file that carried over with the new file.

Hi @Wesley Burrows I've not played with this. Would you please post a test file so we can explore? Thanks, Sc ott

Have you played with using the slice/split tool instead of the aisle tool to separate the seating into separate sections? It might serve you better. Can you share a file for testing? Just the seating layer.

Please post a sample file showing how you used the User Field or a custom record mentioned above. It'll help us explain how to get where you need to be.

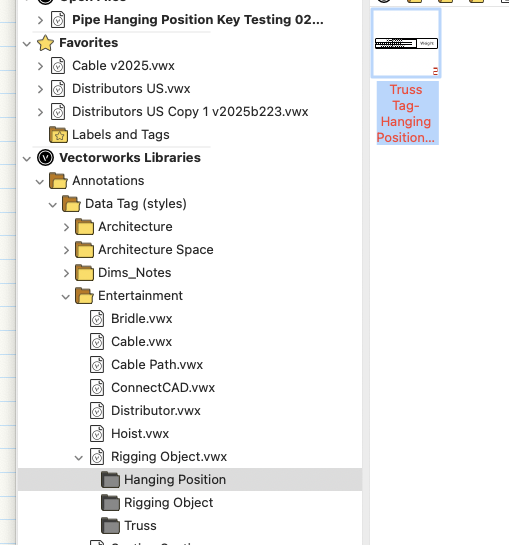

How did you build your data tag? It sounds like it might not be associated with the LED screen. I find the easiest way is first to select the object to which you wish to attach the data tag and then use the "create data tag style" command under the tools menu. This makes sure the data tag will be associated with my object. If I created my data tag for a TV, it won't work with an LED screen. With that said, you can use the small triangle of the data tag to "associate" the data tag to the LED screen. Perhaps that will fix the issue. Do you have a sample file you can share? Como você construiu sua etiqueta de dados? Parece que ela pode não estar associada à tela LED. Eu acho que a maneira mais fácil é primeiro selecionar o objeto ao qual você deseja anexar a etiqueta de dados e depois usar o comando "criar estilo de etiqueta de dados" no menu de ferramentas. Isso garante que a etiqueta de dados estará associada ao meu objeto. Se eu criar minha etiqueta de dados para uma TV, ela não funcionará com uma tela LED. Dito isso, você pode usar o pequeno triângulo da etiqueta de dados para "associar" a etiqueta de dados à tela LED. Talvez isso resolva o problema. Você tem um arquivo de exemplo que pode compartilhar?

@Tom Lightbody Could you share a small file for testing please?
