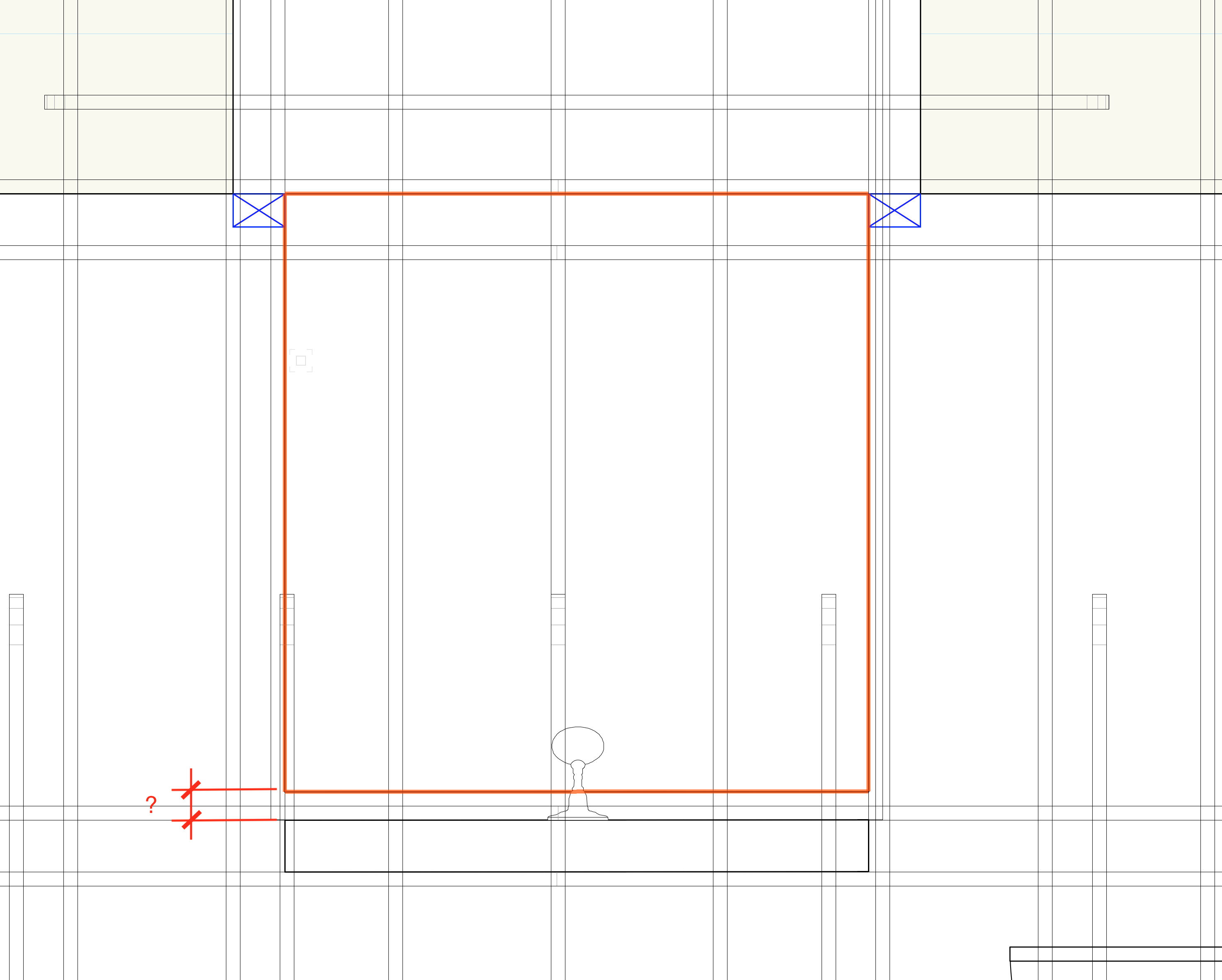

  1. CraigC

    Edit slab boundry

    I would like to edit this slab so that its southern edge aligns with the northern edge of the wall. When I enter the edit boundary mode, I'm presented with only the boundary and no other geometry. How are you supposed to achieve what I am trying to do?
  2. CraigC

    Floor Plan Cut Plane

    Brilliant Pat. Thx!
  3. CraigC

    Floor Plan Cut Plane

    The VW tutorial I saw on making floor plans showed the viewports as wireframe. However doing so leaves both faces of the wall visible where a door is. If I change the viewport to hidden line, then the doors and windows disappear. How do we make a conventional floor plan where the cut plane is at 4' AFF?
  4. CraigC

    Viewport Resize?

    How do I create or resize this viewport to be the same size as the red dashed rectangle?
  5. CraigC

    Elevation Linework Poor Quality!?

    Yes.
  6. CraigC

    Custom Sliding Barn Door

    You rock Pat! Thx!
  7. Can anyone tell me why the linework in this elevation (screenshot from a sheet layer) is so fuzzy? The section and the floorplan are not fuzzy.
  8. CraigC

    Custom Sliding Barn Door

    So I've inputted a door with the correct dimensions, and I've drawn a door slab. But I don't see how to format the door into an opening. BTW the first image below does not belong in this thread but I don't see how to delete it. Please see the second image.
  9. CraigC

    Custom Sliding Barn Door

    I need to make this a sliding barn door and was unable to find one in the resource manager. How can I create a custom sliding barn door?
  10. CraigC

    overhead elements as dashed lines?

    Hmmm...The lines don't change to dashed. Yes, and it's a 3-D model. The trellis is on its own subclass from the main roof class. Yes, the attributes are defined by class.
  11. CraigC

    Wall Height?

    Thx Wes, But all this sounds terribly complex. I just want to design and document.
  12. CraigC

    Objects without faces!?

    Thx. I clicked on it instead which showed nothing.
  13. CraigC

    Objects without faces!?

    OIP?
  14. How does vectorworks show overhead elements as dashed lines? Like these trellis components?
  15. CraigC

    Wall Height?

    Can anybody show me how to make the top of this highlighted wall 42" AFF?
