andrenogrib

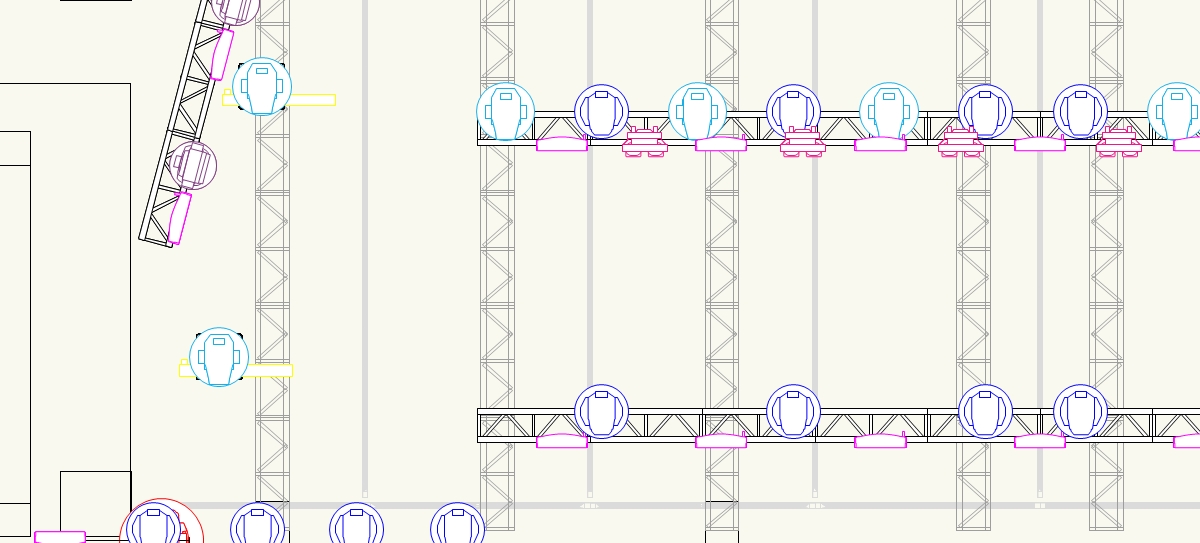

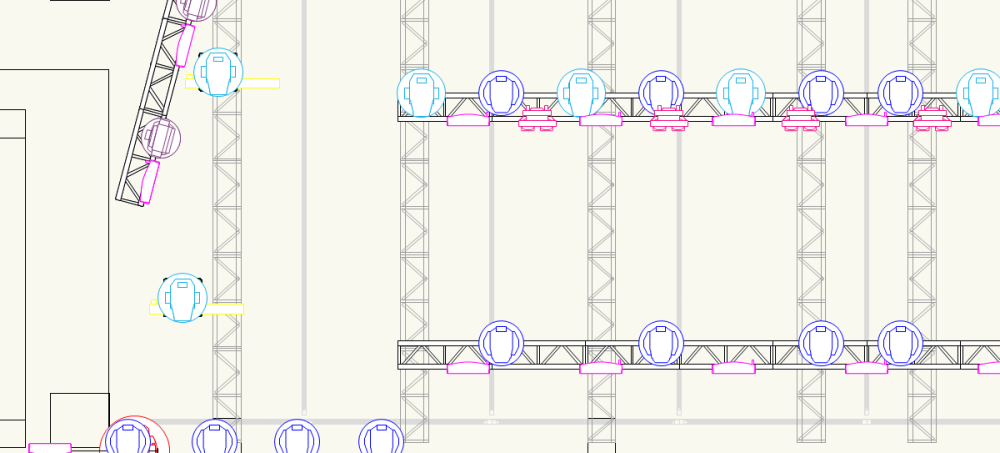

Hi everyone, I have a question about symbol behavior in Top/Plan view. I'm using the Impression X4 Bar 20, and in Top/Plan view it always shows as if it's mounted horizontally (flat), even though in my setup it’s mounted vertically (standing up). In 3D views it displays correctly in the vertical position, but in Top/Plan it stays like a straight bar. Is the only way to fix this by redrawing or editing the 2D component of the symbol? Or is there any option or setting in Vectorworks to indicate that the fixture is mounted vertically, so it automatically shows a different symbol in 2D view? Thanks in advance!

Depence R4 for Lighting, Led Screen, Laser, Fireworks pre-viz and renders ❤️

Hello guys, I am tryiing to make the texture brightness on shaded view. I imported my model from sketchup and each face has a different texture, but when i change the render mode to shaded, i can see the texture but its like opaque Could you help meee ? THX

@Jim Wilson worked perfectly! the populate array function in sp1 crashes vectorworks and closes inexplicably. The sp2 update correct this bug! Thx ❤️

When I open it. 2019sp1 asks to convert the file to 2019, but at the time it finishes it closes without giving any message.
