  1. Travis

    Extrudes are suddenly locked on creation

    Did anyone perhaps find a solution to Jeff's 'bug'? I've just had the same thing happen to me. Once it happens in a file, I find it sticks and haven't found a way to drag it to unstuck! I open another file, even during the same session, and fillets/chamfers work. But not on the stuck file. It seems likely there's a setting (did I mistakenly press the wrong combination of keys?) that can be triggered to lock all extrudes. Any help would be wonderful!
  2. Travis

    Pixelated RW Viewports

    I created a Viewport of a modeled structure. I get a horribly pixelated rendering from any of the RW options. All other rendering options perform as expected. When I select RW on the design layer, it looks exactly as expected. Scale is the same on both the design layer and the viewport. I copied and pasted the structure into a new file. Same results. Any ideas, anyone? [ 11-30-2004, 07:55 PM: Message edited by: Travis ]
  3. Peter, I very much want to do exactly what you describe: have two textures with the wood grain at 90° to each other. I can duplicate a RW texture, but don't see how to rotate the orientation. Help?
  4. I hadn't explored the menu quite deeply enough. I had to turn on the dual plane option so the menu gave me both choices. Thanks for your reply.
  5. How do I change the default Plane for new 2D elements drawn in 3D views? On the Object Info pallet the Plane menu allows (generally) for both 3D and Screen. Surely there's a way to toggle the default so one doesn't have to make the change on the pallet for every new element. I suspect this is fairly simple, but it's eluding me today!
  6. Travis

    Anyone want to sell VW 2014 Architect

    I can confirm that VW2015 runs fine on OS High Sierra (10.12.6). I don't have a copy of VW2014 to test. My copy, however, is not available.
  7. Travis

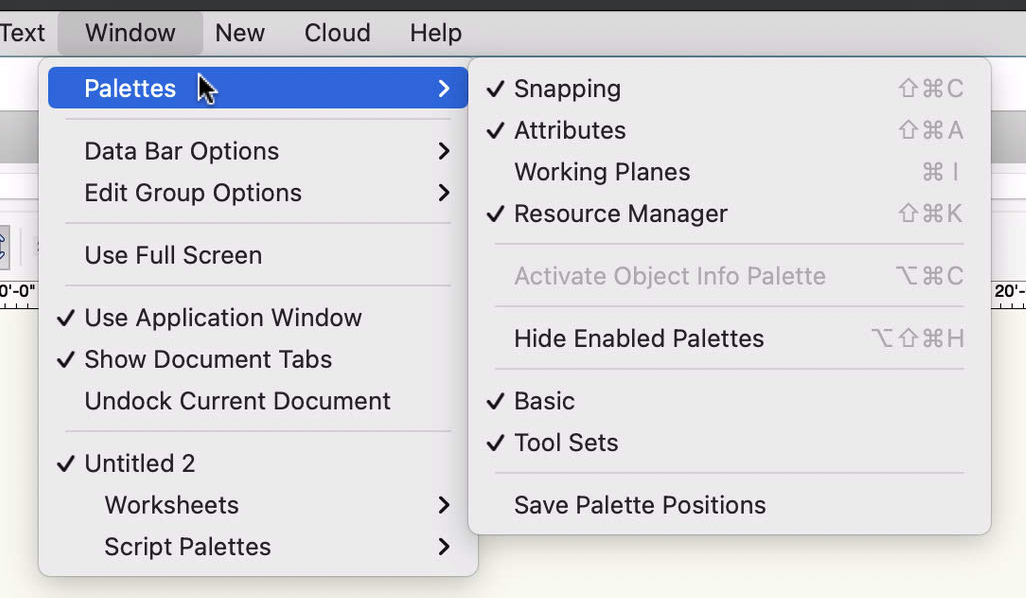

    Default drawing window size

    Thanks, both. Yes, VW is quitting normally/successfully. I tried dragging the preferences file out onto the desktop, launched VW (same 2/3 window), resized the window to take up 95% of the screen; quit; relaunched: same 2/3-sized window. (things that make you scratch your head and say choice words) I'll try tech support. Oddly, when I launched VW18 the first time it opened a full-screen window. I thought, 'Great. Problem solved.' Then, I converted a couple files forward from VW17 and the 2/3-glitch came with. To stay. :\
  8. About half way through this year, my default drawing window—regardless what file I open, even creating a new document—is about 2/3 wide across my screen rather than full size. So, I grab the bottom right corner and drag it across and go to work. It's driving me crazy, mostly because it hasn't always been like this. I'm sure I've 'stored' some kind of default somewhere, but I'll be switched if I can figure out where. Perhaps in my custom workspace? If so, I can't seem to figure how to set it back. Any help much appreciated!
  9. Travis

    Bi-Parting Door in archway

    Peter sometimes has all the good ideas.
  10. Travis

    VW signaling a strategy change?

    Hmm. Of course NNA is in business to generate revenue for its ongoing success. But with three service packs released for v2008, I don't see how you can say they've ignored bugs. That's not to say they address all known bugs, but who does (or could)? No software house I know of maintains more than (perhaps) one release prior to the current one. Additionally, it seems reasonable to this non-programmer that the best way to address some perceived "bugs" is to evolve through, or even pass, them. For example, there have been "bugs" for years in the some of the more arcane geometry of both 2D and 3D elements. I have been particularly frustrated by the inability to "snap" to 3D midpoints when working in wireframe. Is this a "bug" because I can snap in another program but not in VW? For both of these issues, it seems the best answer might have been switching to the Parasolid kernal. Does this mean NNA doesn't care about them in the prior version? Of course not. Rather, I see it as caring a great deal: they not only solved my gripes but did so by giving me more than I could have known was possible. As to your other issue re the value of each upgrade, it seems to me you'll have to arrive at a conclusion based on your circumstances. I simply wouldn't be willing to buy a new car just because they changed the shape of the fenders and moved the headlights a bit. Truthfully, the workstation productivity increases in each of the last four VW versions have easily paid for the upgrade cost in the first two or three weeks. If you're billing $100 per hour and can be more productive by one hour per week, the re-coup rate is just over a month. We usually (and will this time) make the upgrade switch in Dec/Jan during our slower season: we can watch these boards for tips from early adopters, we usually start with at least the first or second service pack already in place, and we have more time to adapt all the "bring forward" items (workspaces, templates, symbol libraries, other work-flow-related stuff) when we're not quite so buried trying to keep clients happy. With NNA's recent (last two years?) change to a reliable, annual upgrade cycle, we're able to budget both time and money to review and then adopt (if appropriate) their offering. Makes a lot of sense, even for our small (4 seats) shop. Do what works best for your business
  11. Travis

    The Ultimate Live Section

    OK, my friend, it's finally confirmed: you have too much time on your hands! Nice dose of humor. I'm not sure I want to supply all our clients with ready-made skeletons. Most of them already have several in the closet! Good day!
  12. Travis

    Printing imported pdf

    I can see it on screen, but printing (even to PDF) yields No Joy. Was able to print it from another computer in our office. Maybe I'm missing something from the install. Will do a clean install over the weekend and hope. Thanks,
  13. Travis

    Printing imported pdf

    I've imported another architect's sheet (in PDF format) onto it's own design layer and then viewported it onto a sheet layer for output with other viewports overlaid. For some reason, the PDF layer doesn't print. Is anyone else having this problem? And maybe learned a trick I can't seem to discover yet? Thanks in advance,
  14. Travis

    Is there a faster way than offsetting?

    Super, When using walls, be sure to just move one wall AND make certain the Wall Join option is turned on at the top of your drawing window. If a square were drawn with the Wall tool and I wanted a rectangle, I would just grab the center handle of a single wall and drag it. The two adjoining walls will "stretch" right along with the wall being moved. If you find a corner that's come apart, just use the Wall Join tool to "heal" the corner. (Make sure it's set to the correct option: "L" or "T" joint.) Good luck,
  15. Travis

    Is there a faster way than offsetting?

    Ride, Set the double-line tool to one of your specified widths (say 80mm) and to create polygon (NOT lines). Draw a door frame. You now have a polygon with both inside and outside lines. When you double-click the polygon, you'll get the 2D Reshape tool. Click outside the polygon and draw a marquee/box around one end of the door frame. All of the vertices inside the marquee will now move together. Either drag (visually) or enter the distance to change the "length" of the door frame. All this without altering the 80mm offset between inside and outside lines. A similar approach can be taken with your face frames: you'll just have to do some Add Surface steps to get a single polygon. One key paradigm to conquering VW is to think in terms of objects rather than lines. Good luck,
  16. Travis

    Font kerning

    Gilly, et al, Depending on what you're trying to do, you can change the letter spacing by converting TrueType to polys. Then group the wording, enter the group and adjust spacing, etc, as needed. It's just very inefficient, especially compared to AI. But, it you're trying to lay out a sign panel or something that has relatively few letters, it works well. Good luck,
  17. Travis

    New imacs

    It seems that one doesn't actually have a video card option. The card you mention is only available with the fastest processor on the largest screen available for the iMac. I'd be inclined to make the choice based on those other two features, and let the video take care of itself. We always buy the fastest processor and at least 2gb (better yet, 4gb) of memory that the budget will allow. In the case of the iMac, spending the extra $300 (however many pounds Sterling that is) for the faster processor will almost certainly be returned many times over in improved productivity. Good luck,
  18. Travis

    Workflow for architectural detailing: need help

    We have a whole set of Detail- classes that are used only for details. (e.g. Detail-Conc-ReBar; Detail-Conc-Section; etc.) This way, whenever details are WGR'd in, there's no conflict with other classes. Also, Hatches can be customized for detail-sized use. Just be sure to use unique Hatch names, as well. Since the broken-link WGR layers are already on their own design layer, we would generally finish the annotations there. This, however, is the only time we annotate on DLs. And there are at least two benefits: 1) If a detail is modified enough to warrant adding back into the library file, all of the relevant info is in one place; and 2) on larger projects, when multiple individuals are working together, one draftsman can be compiling the details ? on DLs ? which can then be WGR'd into the master "print set" file. Finally, the DL-based details are VP'd onto sheets. Scale and cropping is adjusted, if required (we're kind of partial to neat rows and columns of more-or-less uniformly-sized details on a sheet). Good luck,
  19. Travis

    Workflow for architectural detailing: need help

    We keep a library of details filed by type: meaning there is one file for footing/foundation details, another for exterior, yet another for doors and windows, etc. Each detail is drawn on its own design layer at about the scale we would expect to use it. Then, as a drawing set is developed, these detail layers are Work Group Referenced (WGR) "in". The link is then broken so the detail can be customized to fit the situation AND so future changes to the library aren't referenced back to "old" drawings. Generally, as details are developed for new situations, they are added to the appropriate library file. HTH,
  20. Travis

    Length of Rafter/Joists/Valley...etc

    tguy, I thought my leading statement "need to show a building section" would have implied a "section created for purposes of display". My apologies if that was unclear. If all one needs is a quick measurement, it can be got directly from the model layer by switching to an elevation view. If the model is complex and a measurement is needed somewhere in the "middle", one could certainly use the old Cut Section tool. But don't forget to count the "delete" step, if it's only a temporary item. boxjoint, In the VW application folder go to Plug-Ins>VW_Arch>Data and open Lumber Sizes.txt. Under Units\Actual\Nominal, change the actual to 1.01", 2.01", etc. (Since we frequently use 3x material, we've even added a full line that reads 3.01"/3") Then scroll down and update Length increments (Imperial) to 24.01" It seems the nominal calculation in the PIO is set to round at the numbers in the "Actual" column. We want 2" to NOT round up, since we frequently work in full-dimension timber. And, since milled lumber typically comes slightly longer than specified dimension, we would rather not have a 12'-length rounded up to 14'. By "upping" the rounding point to .01" beyond, we now get the expected Nominal dimension. Which we then flow to a materials list. I realize the above looks only to Imperial measurements, but the logic works just as well for Metric. If something's not clear, please repost. Good luck,
  21. brudgers, Rather than retyping everything, you might be able to remap the corrupted font to a working font. Could save hours!! Good luck,
  22. Travis

    Length of Rafter/Joists/Valley...etc

    ccw, We use the VW framing tools every day, so I'm hoping I might help. First of all, what are you trying to accomplish? If you need to show a building section, with the rafter length dimensioned, you can use tguy's approach. But creating a Section Viewport will get you there quicker and it will be "dynamic" (if the model changes for any reason, so will the Section). Then, in Viewport Annotations, apply whatever dimensions you need. If you want a framing materials or cut list, you'll need to get fairly familiar with VW's reporting capabilities. But be assured, you can present an accurate list on your plans. I'd encourage you to search these discussion boards for excellent pointers; use the Create Reports menu item; and post here with more questions. If you want to insert a Call-out note, say on a roof framing plan, with the rafter's actual length (not the span length, or even the nominal length) originally mentioned, you'll either have to "do the math" or go to an elevation view to get an accurate measurement. However, I can't think of a time when we would have used this approach. As you've already noticed, while the OIP (Object Info Pallet) gives you some useful feedback, it doesn't show the actual cut length. But the nominal length (rounded up to the next 2'-increment, on the Imperial system) may be what you'd want anyway; especially if you're trying to create a materials list. If you'd like to correct the Nominal Size problem that Ray observes, please repost and I can walk you through that process. Ray: It's a simple data table problem that has never been resolved in any shipping version of VW, yet. I've given up complaining: we just replace the data table with each new issue. Good luck,
  23. Travis

    Viewport reference to annotations

    Bruce, You can, however, cut & paste from one file to the other. I realize this is somewhat tedious, but it may be faster than re-drawing/re-writing whatever you're needing to bring forward. Good luck,
  24. Travis

    Font too wide in VW

    Do you have Quartz imaging turned on? (Preferences>Display tab) This may render the font more accurately. TrueType and OpenType fonts include the PostScript info, and a whole lot more. We don't use any solely PostScript fonts (either Type I or III), but rather all TrueType. I do know that VW is more sensitive to font-type and possible corruption than, say MS Word. In fact, I could (but won't) send you a "free" font someone once downloaded that crashed VW every single time it was used. The net result of my ramble is this: unless absolutely necessary (and be prepared for unpredictable results), always use genuine TrueType or OpenType fonts. At the risk of being redundant: if the font didn't come with your OS, or you didn't buy it, don't count on the results. Good luck,
  25. Travis

    Font too wide in VW

    Raida, Please provide info about the platform on which you're running VW: OS & version; hardware specs; printer Since VW utilizes only fonts loaded into your system, there are several points along the way where your problem could be based. Good luck,
