Vertical Blinds 1.1.0

   (0 reviews)
Sign in to follow this

3 Screenshots

About This File

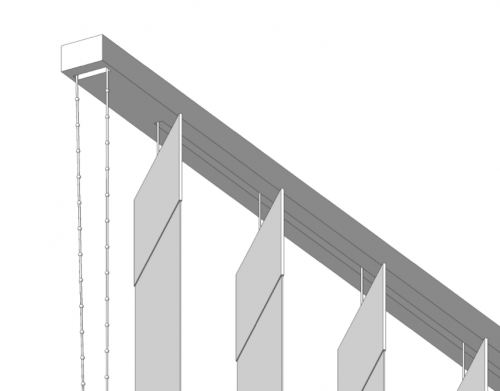

This Marionette Network generates vertical blinds.

Nearly every part of the blinds can be modified by the parameters.



Usage comments:

- Put the Symbol 'Vertical Blind' into your drawing.

- Now costumize it to your needs with the parameters in the object info palette:



Total Length, Slat Height, Slat Width, Slat Angle and more

(A Video will follow)



- Finally you can define textures for parts of the slat by the generated classes:



VerticalBlind-Slat

VerticalBlind-Slat_Backing

VerticalBlind-Rope

VerticalBlind-Fixture

VerticalBlind-String

VerticalBlind-Beads



Thanks to Dom for the PutByRefNode which made it a lot more easy.
